Tremolo Routing Templates

(8)
Tremolo Routing Templates, Front and Rear Set for Traditional Strat
Front and Rear Set for Traditional Strat Item # 2270 In stock, ready to ship!
$43.93
Tremolo Routing Templates, Front and Rear Set for Floyd Rose
Front and Rear Set for Floyd Rose Item # 2274 In stock, ready to ship!
$43.33
Tremolo Routing Templates, Recessed Modification for Floyd Rose
Recessed Modification for Floyd Rose Item # 2275 In stock, ready to ship!
$34.30

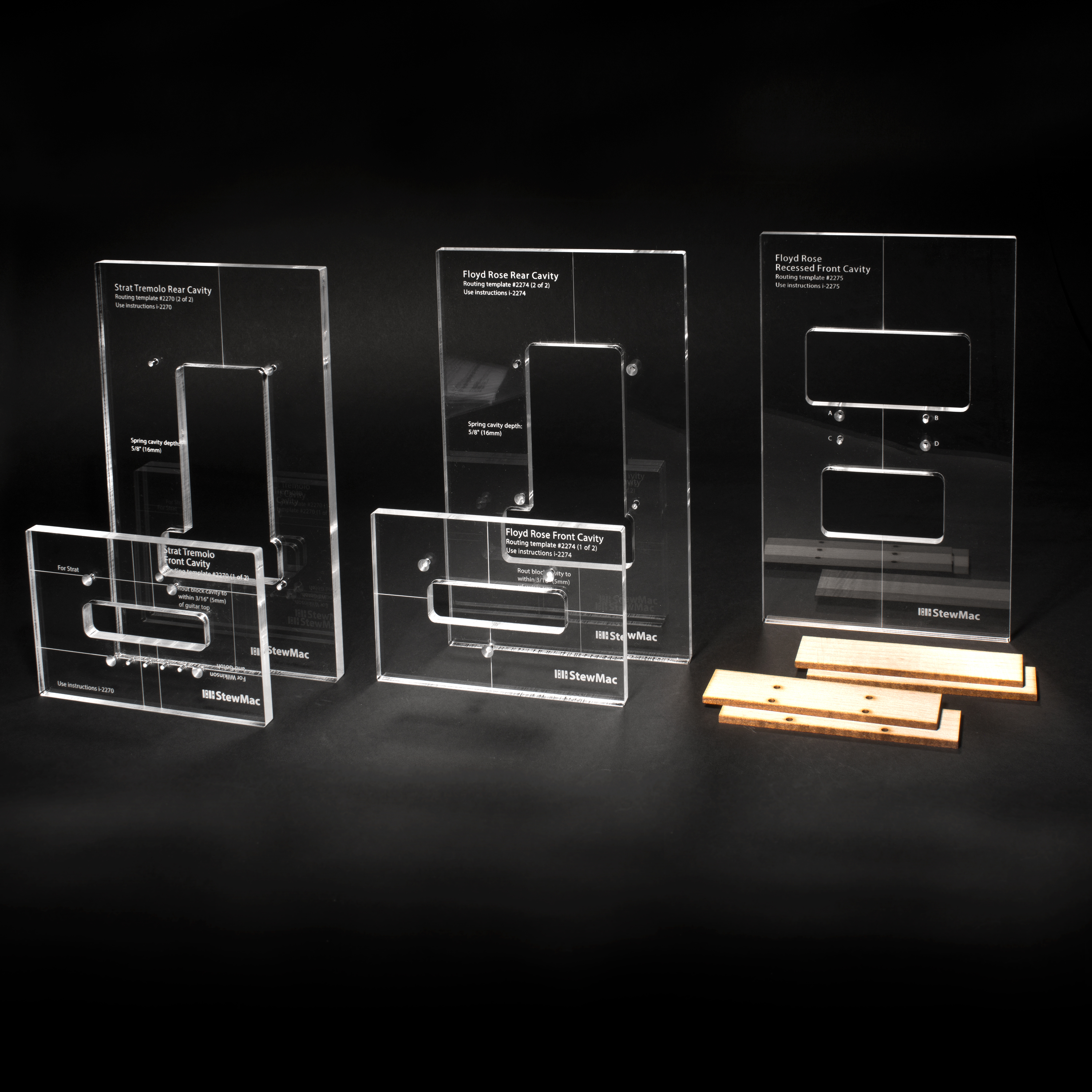

Tremolo Routing Templates, Set of 3
Set of 3 Item # 2330 In stock, ready to ship!
$121.56
$109.40
Original:
$
Save:
$
Total:
$
Qty:
Please enter a quantity

Tremolo Routing Templates

Create perfectly shaped tremolo cavities for Stratocasters® and clones having standard Fender-style, Floyd Rose® or Schaller locking tremolos with rear-routed spring cavities.

Accurate template placement is easy—crystal clear routing templates allow you to see the guitar body underneath. Simply align the template’s laser etched centerlines with the markings on your guitar to get the placement right every time.

StewMac's improved templates are now thicker with smooth laser-cut edges. Correct depth measurements are etched right on the template, so you don't need to puzzle over cavity dimensions, we've done that work for you.

Create precision cavities every time:
Align the template's centerlines with those you drew on your guitar. All you need is Double-stick Tape to keep the template in place. Optional: use flat head screws dropped into the counter-sunk holes—the router glides right over them. Lower your Ball-bearing Router Bit into the wood and make several shallow passes until the bearing rides smoothly along the template edge. When the bearing can ride against the cavity wall, remove the template so you can rout to the recommended depth engraved on your template.

  • Thickness: 3/8" (9.53mm)
  • Clear acrylic
  • Laser etched centerlines and depth measurements
  • Countersunk holes for anchoring the template with flathead screws

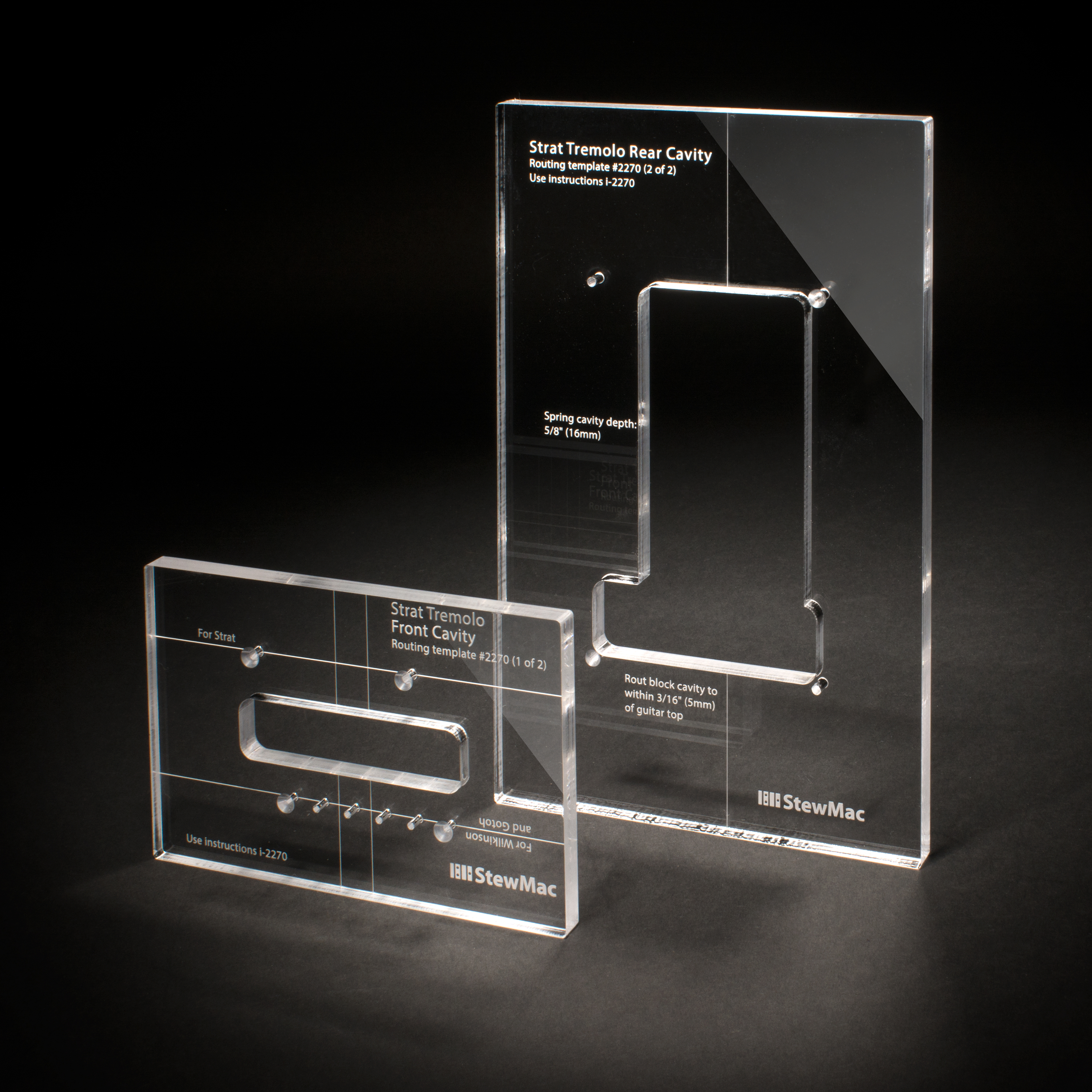

#2270 Front and Rear Set for Traditional Strat
For tremolos with either 2-7/32" (56.36mm) mounting screw spacing, or 2-3/16" (55.56mm) mounting stud spacing. Use for installing these tremolos:
Gotoh Traditional Tremolo for Strat
Wilkinson/Gotoh VS-100N Tremolo
Wilkinson/Gotoh VSVG Vintage Tremolo

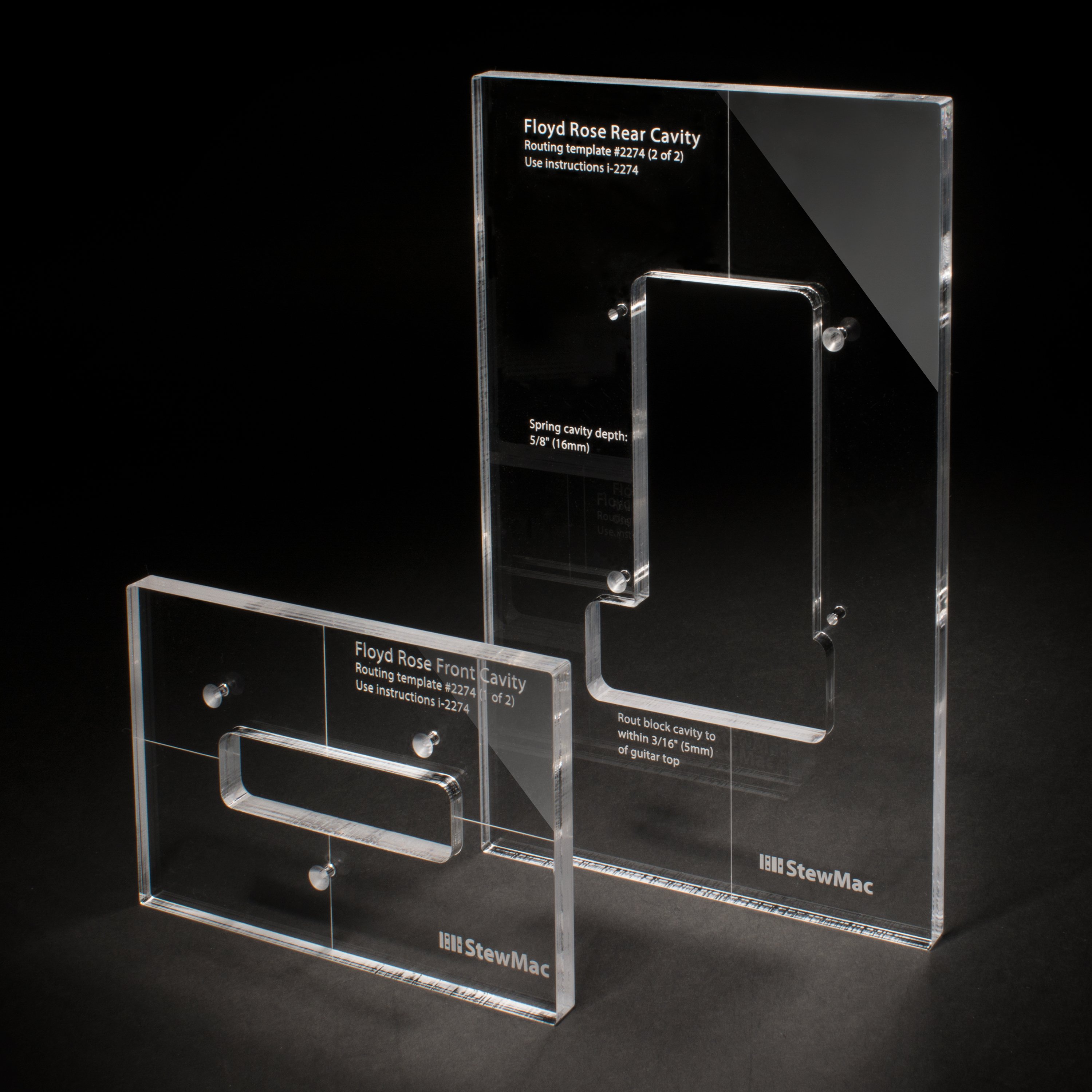

#2274 Front and Rear Set of Floyd Rose
For tremolos with 2-15/16" (74.61mm) mounting stud spacing. For these tremolos and more:
Golden Age Locking Tremolo
Floyd Rose Original Tremolo System
Floyd Rose Special Series Tremolo System

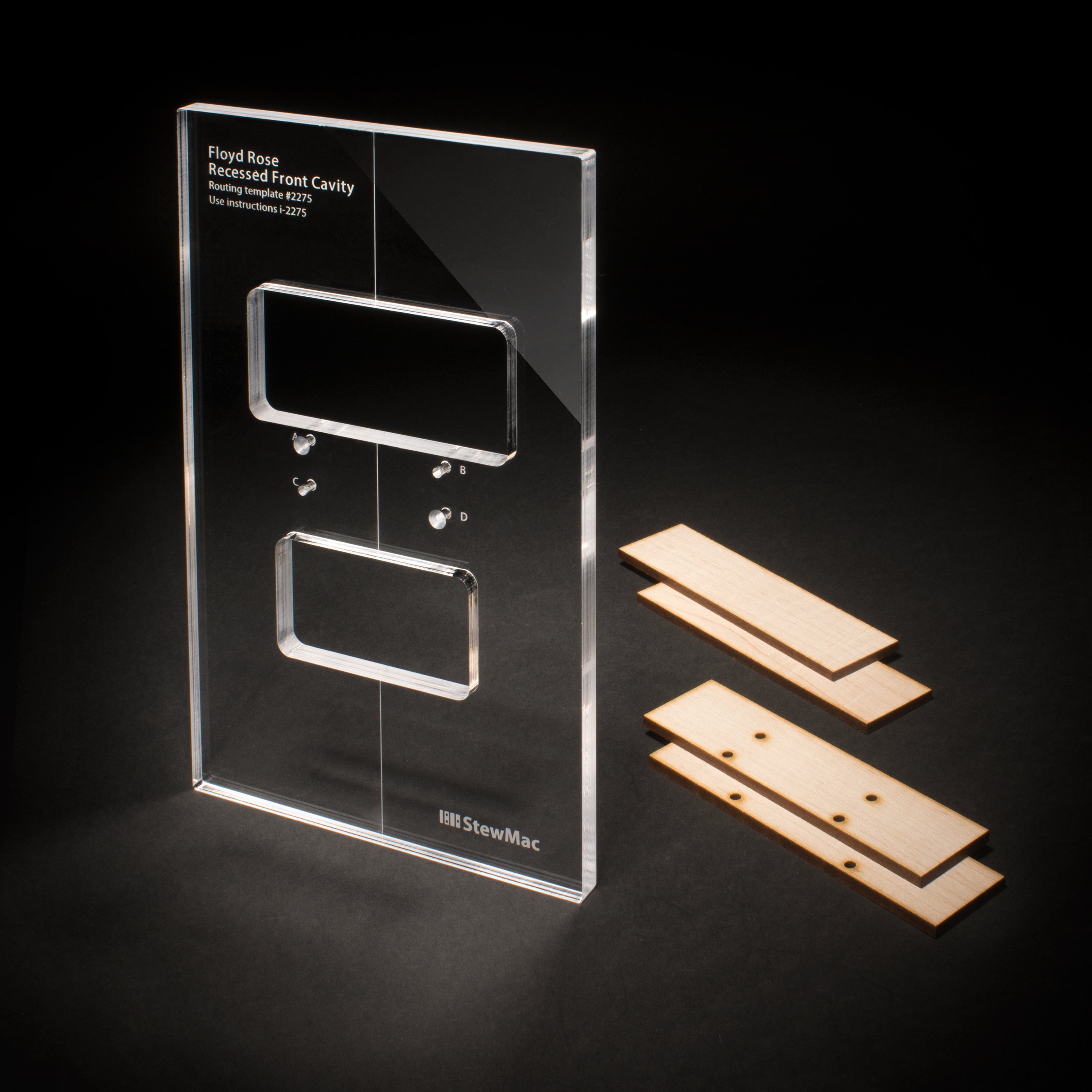

#2275 Recessed Modification for Floyd Rose
Recessing the tremolo creates extra clearance at the rear of the unit, and allows extra arm travel for super whammy action. The tremolo (and the strings) can be closer to the guitar's face, reducing the need for neck shims. For tremolos with 2-15/16" (74.61mm) mounting stud spacing. Includes shims.

Strat®, Tele®, P Bass®, Jazz Bass®, and Broadcaster® are registered trademarks of Fender Musical Instruments Corporation.
Floyd Rose® is a registered trademark of Floyd Rose Industries.
