Battery Box
Handy 9-volt battery compartments for guitars, with built-in terminals and lead wires.
The hinged lid with battery cradle opens for easy battery removal (batteries not included).| Dimensions | Cavity depth required | |

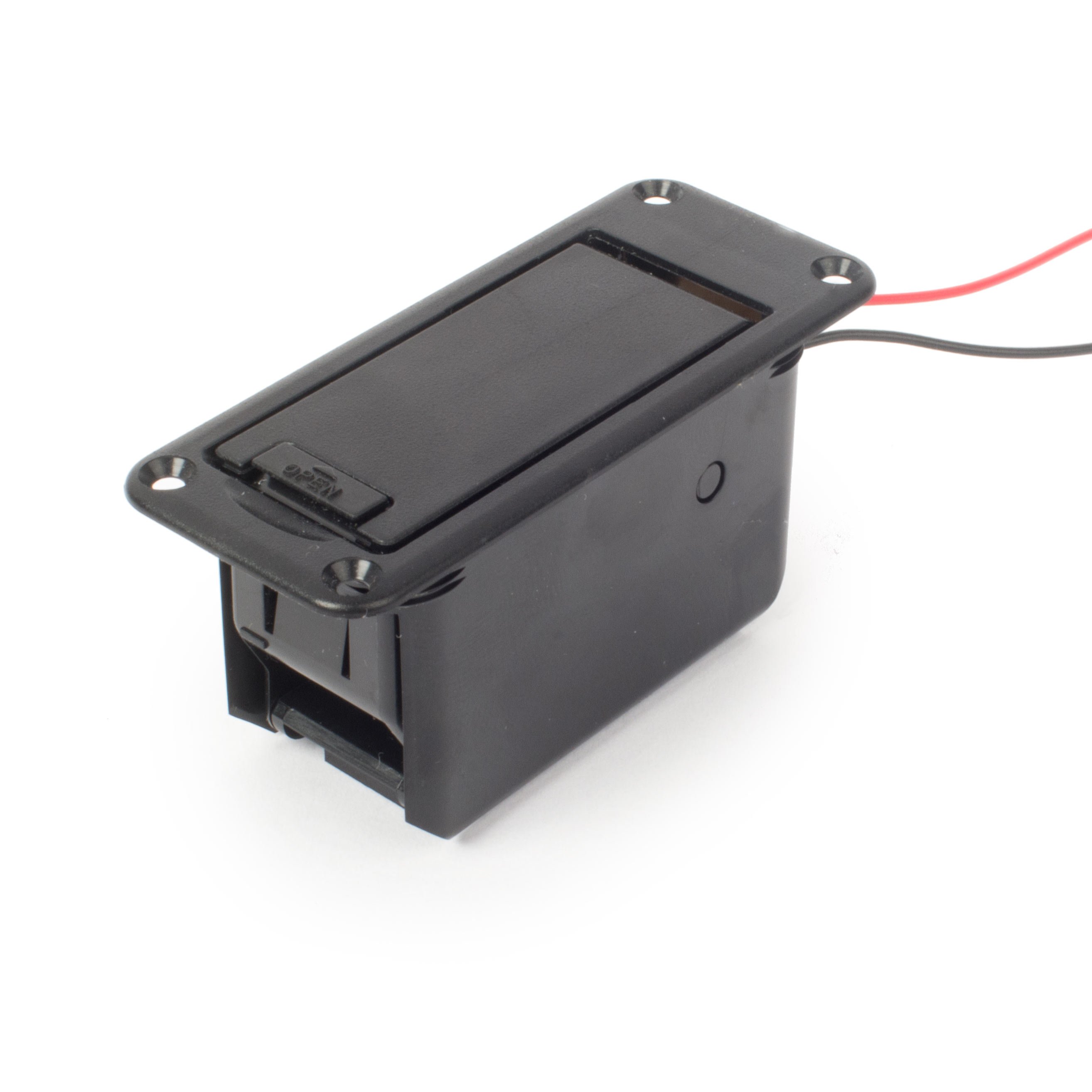

| #3577 | 1-5/32" x 2-3/4" (29.30mm x 69.85mm) |
1-5/16" (33.34mm) |
| Has a 4-screw mounting flange for solidbody guitar; requires a flat mounting surface. | ||

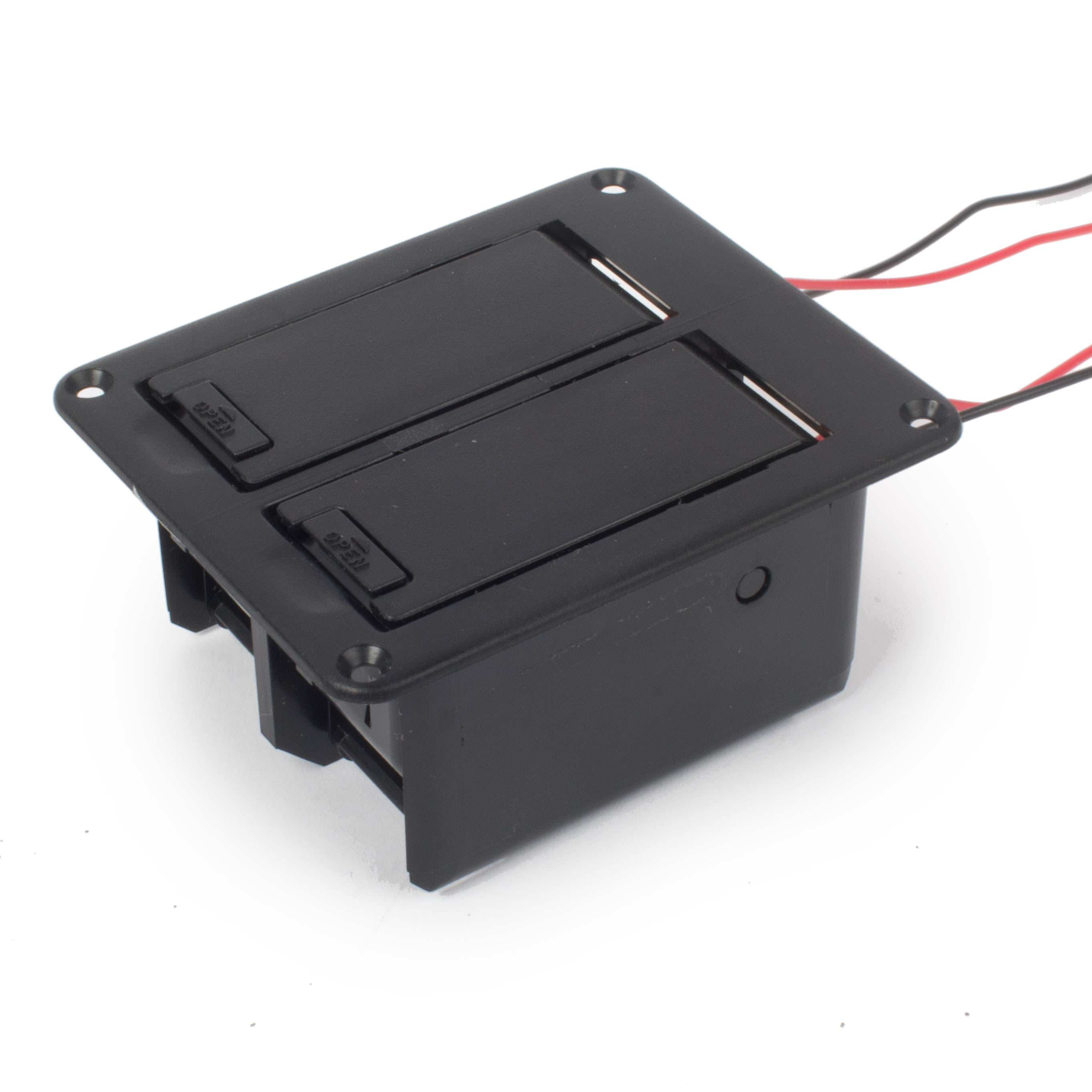

| #3576 | 2-3/4" x 2-1/4" (69.85mm x 57.15mm) |
1-1/4" (31.75mm) |
| Holds two batteries and has two hinged lids, with a 4-screw flange mount; flat mounting surface required. | ||

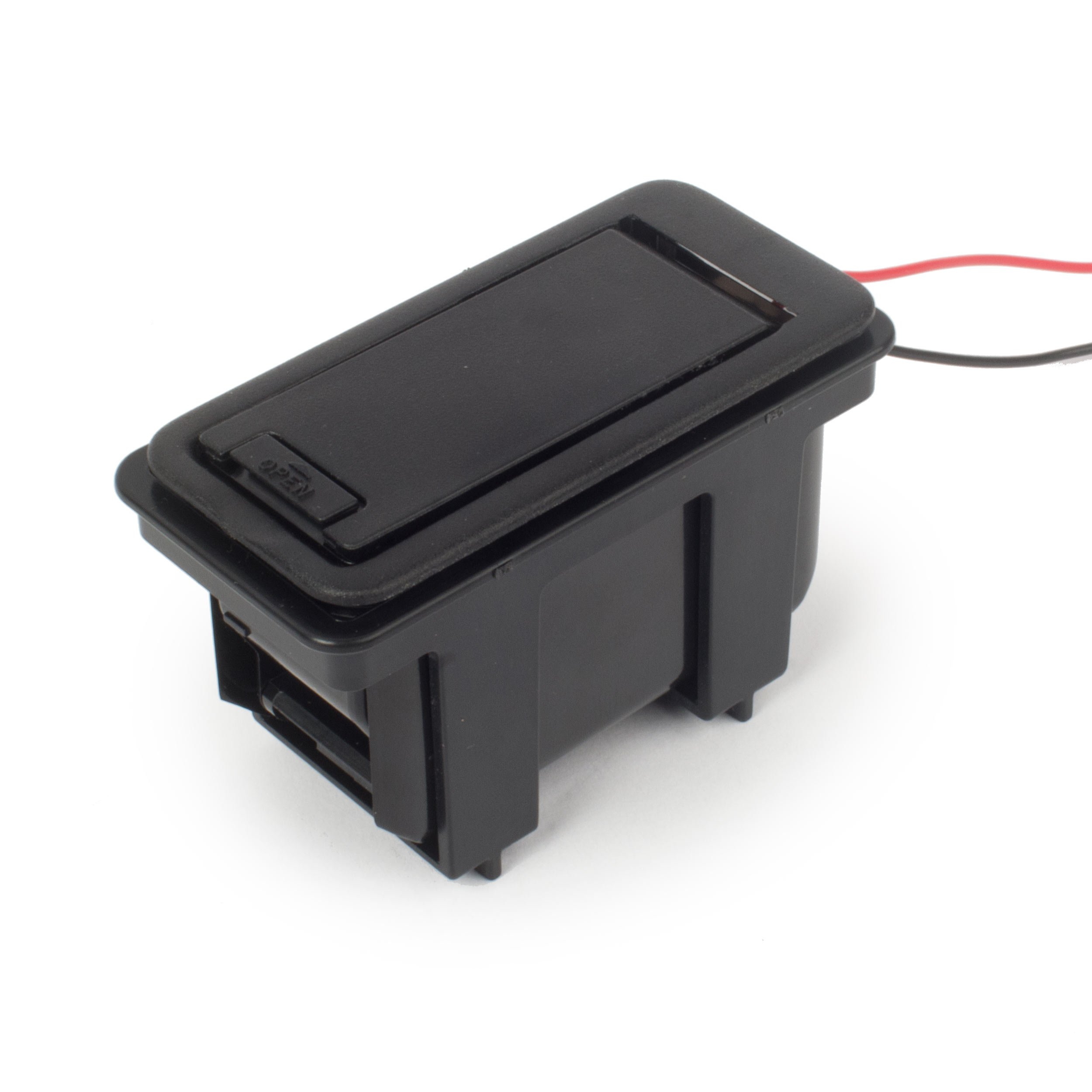

| #3578 | 1-1/32" x 2-5/16" (26.19mm x 58.74mm) |
1-1/2" (38.10mm) |
| Can be installed in solidbodies, and has a removable adapter for acoustic guitar installation; a flat mounting surface required. | ||
