StewMac 4-Screw Bass Bridge

StewMac 4-Screw Bass Bridge

A classic bent-plate bass bridge with a 4-screw mount.

This bent-steel bridge sits close to the body, providing a low profile that won't interfere with your playing hand. It uses four barrel saddles in the familiar vintage-style layout, with each saddle adjusting independently for string height and intonation so you can dial in the setup string by string.

It's a straightforward design that has stayed in use for decades because it works, looks right, and does the job without unnecessary bulk.

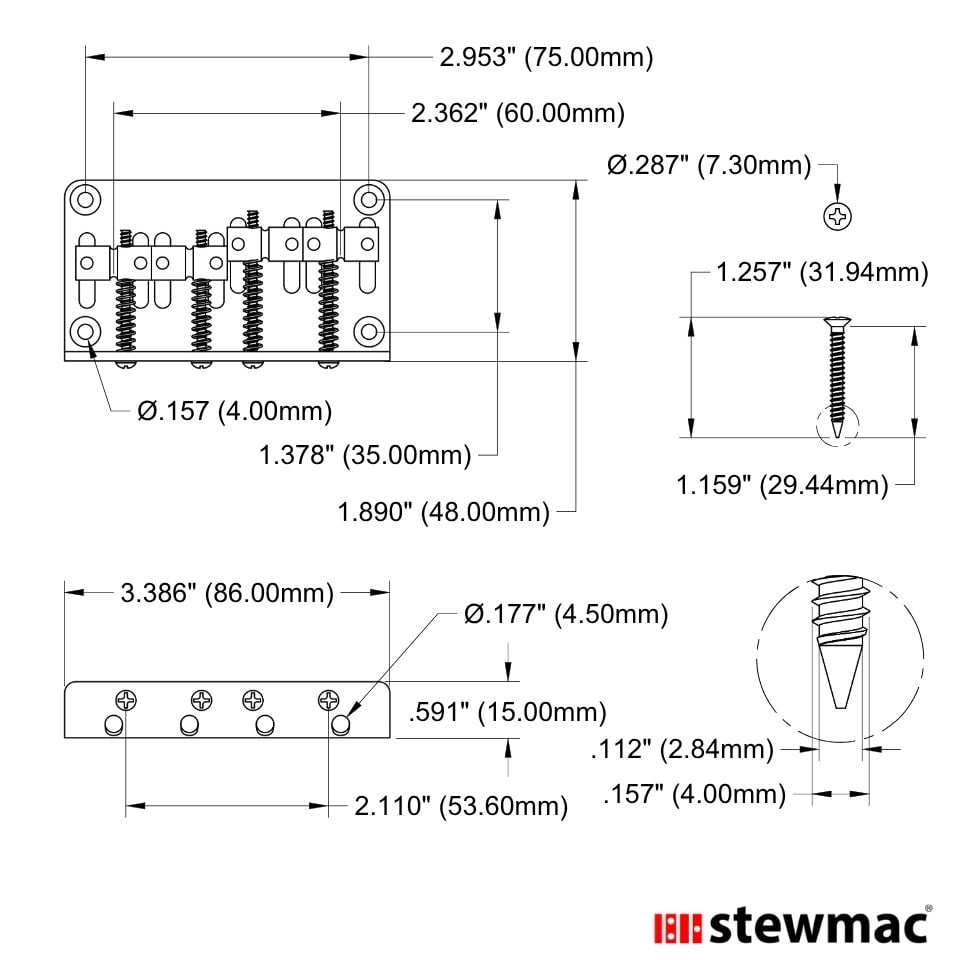

Specifications:

• String Spacing: 3/4" / 0.748" / 19.00mm
• String Spread: 2-1/4" / 2.244" / 57.00mm
• Mounting Screw Spread (Width): 2-15/16" / 2.953" / 75.00mm
• Mounting Screw Spread (Depth): 1-3/8" / 1.378" / 35.00mm
• Overall Width: 3-3/8" / 3.386" / 86.00mm
• Overall Depth: 1-7/8" / 1.890" / 48.00mm
• Plate Height: 5/8" / 0.610" / 15.50mm
• Saddle Width: 25/32" / 0.787" / 20.00mm

Features:

• Bridge Plate Material: Steel
• Saddle Material: Steel
• Mount: 4-screw
• Stringing: Top-load
• Includes: 4 mounting screws, Allen wrench
