EMG Retro Active Fat 55 Humbucker Pickup Set

(0)

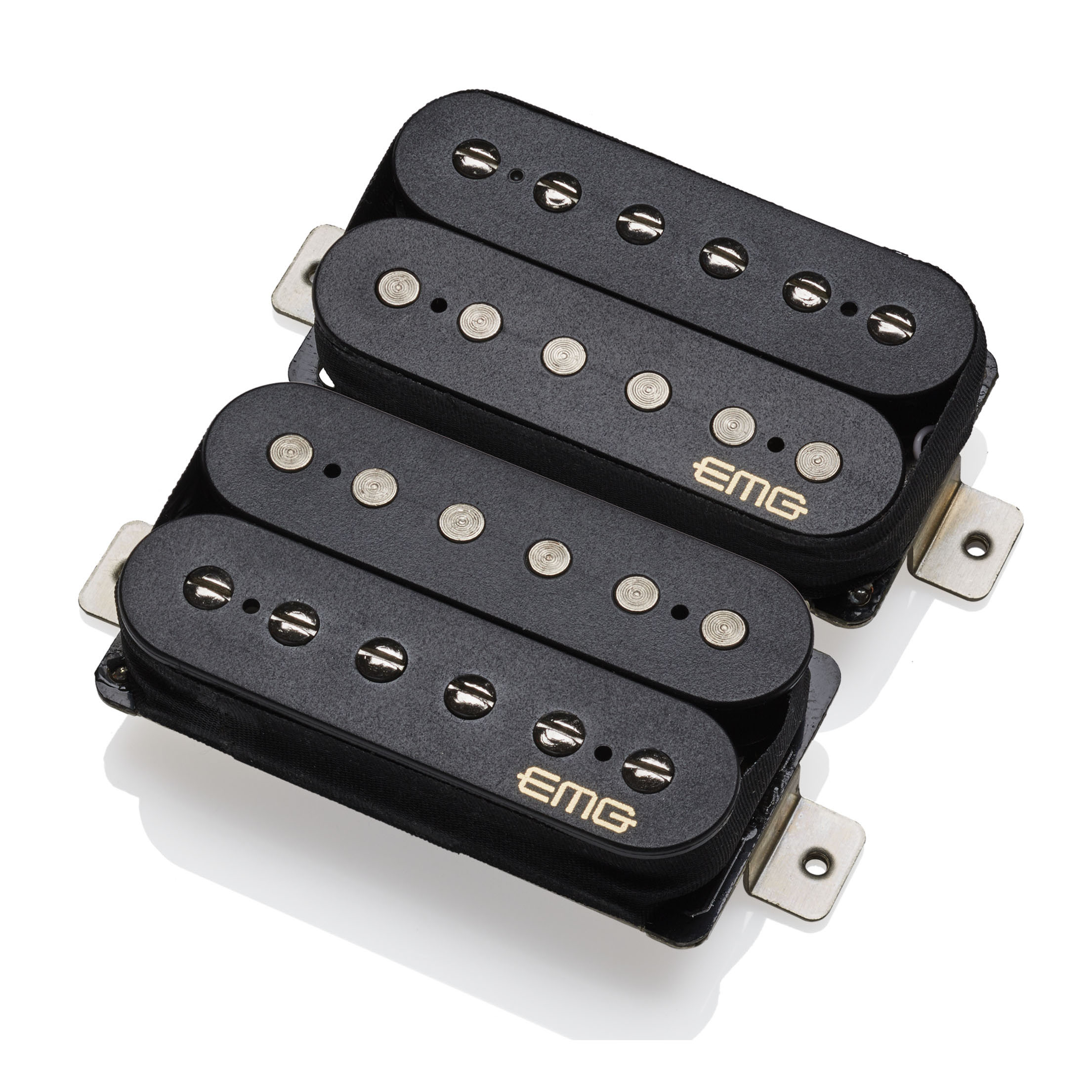

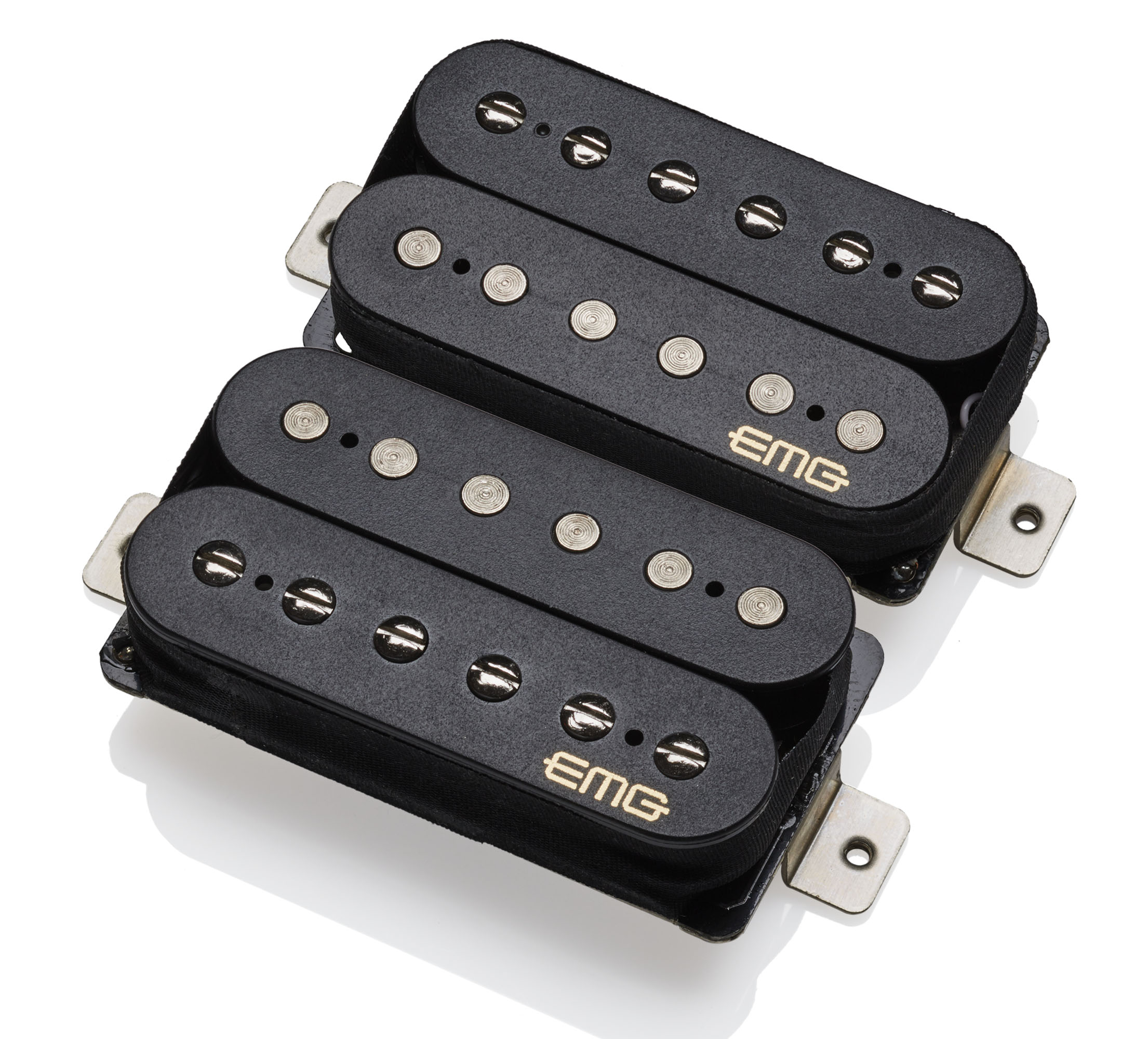

EMG Retro Active Fat 55 Humbucker Pickup Set, Black
Black Item # 1928
Email when available
We'll email you when this item is available for purchase.
$199.00

EMG Retro Active Fat 55 Humbucker Pickup Set

Open coil active humbucker with alnico magnets
The EMG Retro Active Fat 55 humbucker set was inspired by the ingenuity, tone, and feel of the original PAF, evoking the best tones of the 50's and 60's. No longer limited by the technology of that era, this classic looking humbucker set adds a newly designed external preamp that provides the benefit of a low-impedance output; virtually no hum or added noise.

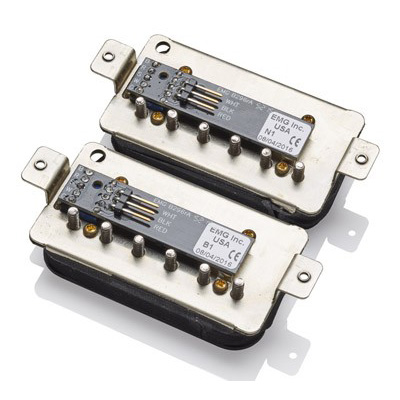

The Alnico magnets in traditional open coil bobbins deliver fat, warm lows without losing any clarity on the high end. The Fat 55 is capable of sitting back in a blues riff or rising up to the overdriven solo with ease. Staying true to conventional design can bring buzz and hum, which is where the new plug-on preamp comes in. The preamp cleans up all of the output noise but retains the passive character of your tone. This is a passive pickup with all the benefits of active technology, yielding a new level of tonal control.

RA-350A Neck Specifications:

  • Magnet Type: Alnico 2
  • Resonant Frequency (KHz): 3.0
  • Output Voltage (String): 4.50
  • Output Voltage Max (Strum): 8.0
  • Output Noise (60 Hz): -106
  • Output Impedence (Kohm): 3.1

RA-360A Bridge Specifications:

  • Magnet Type: Alnico 5
  • Resonant Frequency (KHz): 2.8
  • Output Voltage (String): 4.0
  • Output Voltage Max (Strum): 8.0
  • Output Noise (60 Hz): -102
  • Output Impedence (Kohm): 3.1

Set Features:

  • Current @9V (Microamps): 350
  • Battery Life (Hours): 715
  • Maximum Suppy (Volts DC): 27

Features:

  • EMG's Exclusive Solderless Install System
  • 2 - 25K Volume Pots, split shaft with coarse knurling: 0.235" (5.95mm)
  • 2 - 25K Tone Pots, split shaft with coarse knurling: 0.235" (5.95mm)
  • 1 - Battery Bus
  • 1 - Stereo Output Jack
  • 1 - Two Pickup In/Out Bus
  • 2 - Pair Mounting Screws and Springs
  • 2 - Pickup Cables
  • 4 - Connect Cables
  • 1 - Output Cable
  • 1 - Battery Cable
