Lawrence Research Humbucking Pickups
Wiring diagrams and color codes for Lawrence Research Humbucking pickups.
I-LAWRENCE

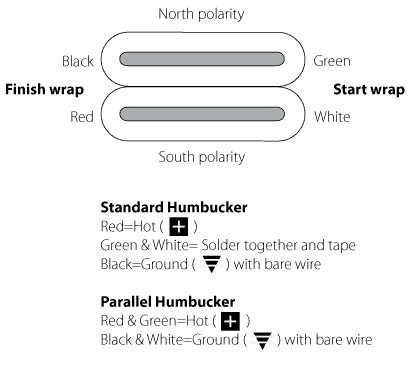

Lawrence Research uses their own color code system for 4-conductor pickups. The schematic below shows the coils and their respective colors.
![](/globalassets/video-and-ideas/online-resources/pickups-and-electronics/lawrence-research-humbucking-pickups/lawrence-1.gif?hash=637613115390000000&quality=80)
![](/globalassets/video-and-ideas/online-resources/pickups-and-electronics/lawrence-research-humbucking-pickups/lawrence-2.gif?hash=637613115390000000&quality=80)

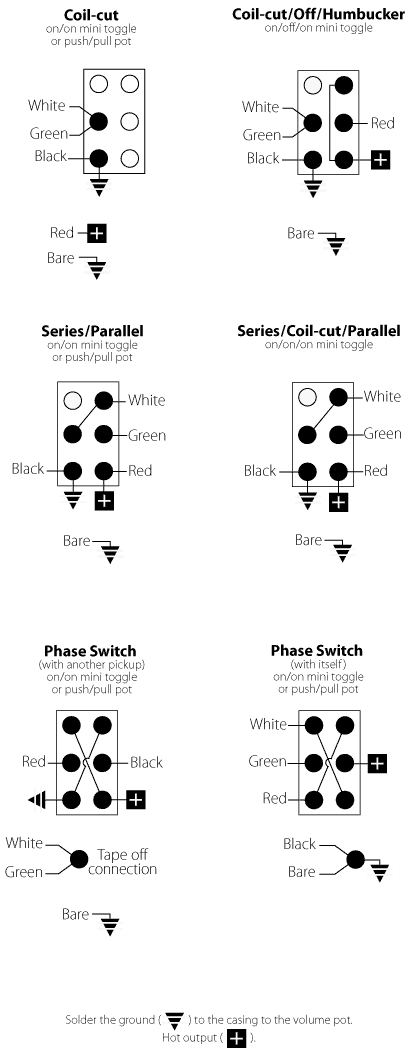

A 4-conductor humbucker has many wiring and tonal options. When using the options below, the bare or shield-wire is soldered to "ground" on the volume pot casing.
