Gibson Historic Non-Wire ABR-1 Tune-o-matic Bridge

(1)
Gibson Historic Non-Wire ABR-1 Tune-o-matic Bridge, Nickel
Nickel Item # 4205-N In stock, ready to ship!

Sorry, this item cannot ship outside the US due to manufacturer restrictions.

$84.99
Gibson Historic Non-Wire ABR-1 Tune-o-matic Bridge, Gold
Gold Item # 4205-G In stock, ready to ship!

Sorry, this item cannot ship outside the US due to manufacturer restrictions.

$109.99
Original:
$
Save:
$
Total:
$
Qty:
Please enter a quantity

Sorry, this item cannot ship outside the US due to manufacturer restrictions.

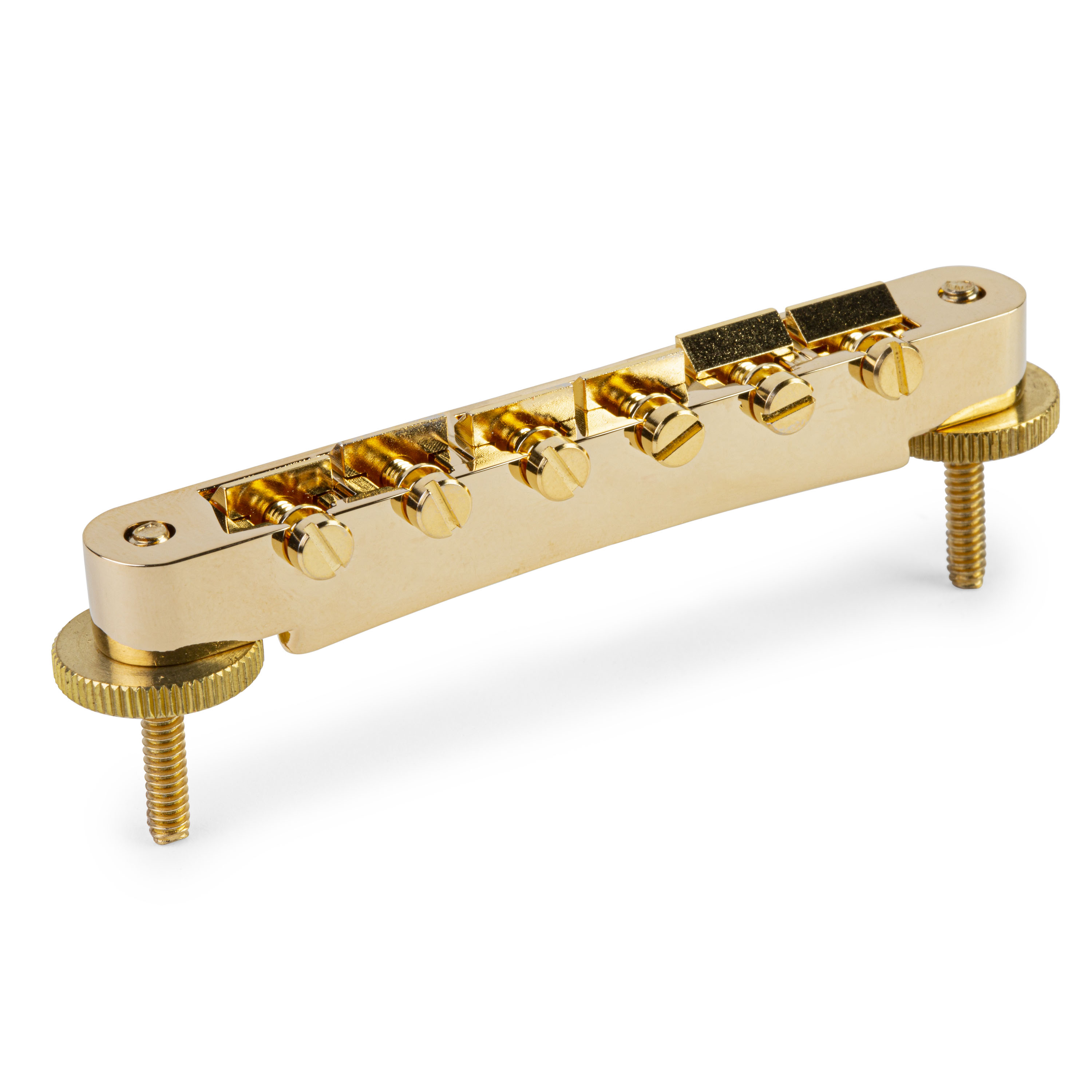

Gibson Historic Non-Wire ABR-1 Tune-o-matic Bridge

The rare Gibson tune-o-matic bridge lives again!

Straight from Gibson Guitar's Historic Re-issue guitars come Gibson Gear's new Historic Spec series—parts that have been specially designed to replicate the original parts used by Gibson in the late 1950s.

With this Historic Non-Wire ABR-1 Bridge, Gibson has re-created the famous non-wire bridge it used on its electric guitars until 1962-63. "GIBSON ABR-1" is featured in raised letters on the base of the bridge. The vintage bridge also includes unnotched saddles.

    Dimensions:
  • String Spread: 2-1/32" (51.56mm)
  • Saddle Radius: 12" (304.80mm)
  • Post Spacing: 2-29/32" (73.66mm)
  • Post Threads: 6-32 x 1-1/16"
  • Genuine Gibson part
    Gibson Historic Non-Wire ABR-1 Tune-o-matic Bridge features:
  • Unnotched saddles
  • Closed-bottom construction
  • Includes posts and thumbwheels
About bridge & tailpiece measurements
Bridge and Tailpiece Measurements Snippet

String spread is the distance between the centers of the outer strings on a bridge or tailpiece.

Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.

Stud/post spacing is the distance between the centers of the mounting posts of a bridge or 'stop' tailpiece.

Positioning the bridge
Find bridge placement for any scale with our free online tool fret position calculator.

Tip: Slotting Tune-o-matic style saddles
Nut slotting files work great for metal saddles. Choose your file size as you would when slotting a nut: use the same gauge as the string, or a few thousandths larger. After filing to the desired depth, we suggest polishing the slot with Mitchell's Abrasive Cord to remove file marks and burrs.
