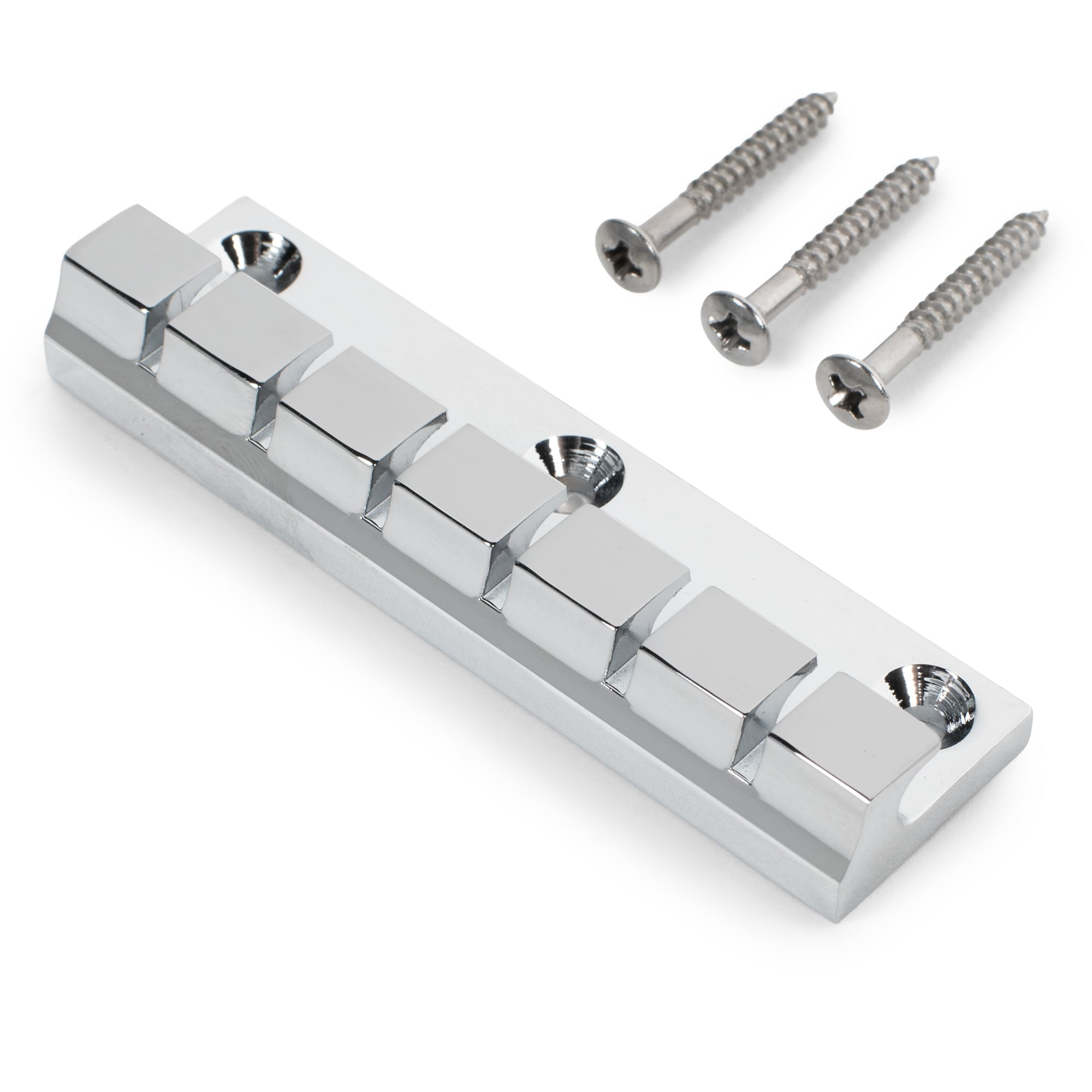

StewMac Thin-Body Tailpiece
For the build that can't take a stopbar.
Installing a standard stopbar means drilling deep holes and pressing bushings into the wood. If your guitar body is too thin to support that, this surface-mounted tailpiece provides a secure alternative. It fastens directly to the top of the instrument with a three-screw mounting plate.
Strings load cleanly through the slotted rear wall for a straightforward setup. This style of tailpiece was originally developed to accommodate the thin mahogany bodies of vintage 1275 doublenecks.
Specifications:
- String Spacing: 13/32" / 0.413" / 10.50mm
- String Spread: 2-1/16" / 2.067" / 52.50mm
- Mounting Screw Spread: 2-3/8" / 2.362" / 60.00mm
- Plate Dimensions: 2-25/32" x 25/32" / 2.795" x 0.787" / 71.00mm x 20.00mm
Features:
- Material: Plated zinc
- Mount: 3-screw top-mount
- Includes: Mounting screws
