StewMac Dual-Load Hardtail Bridge
New

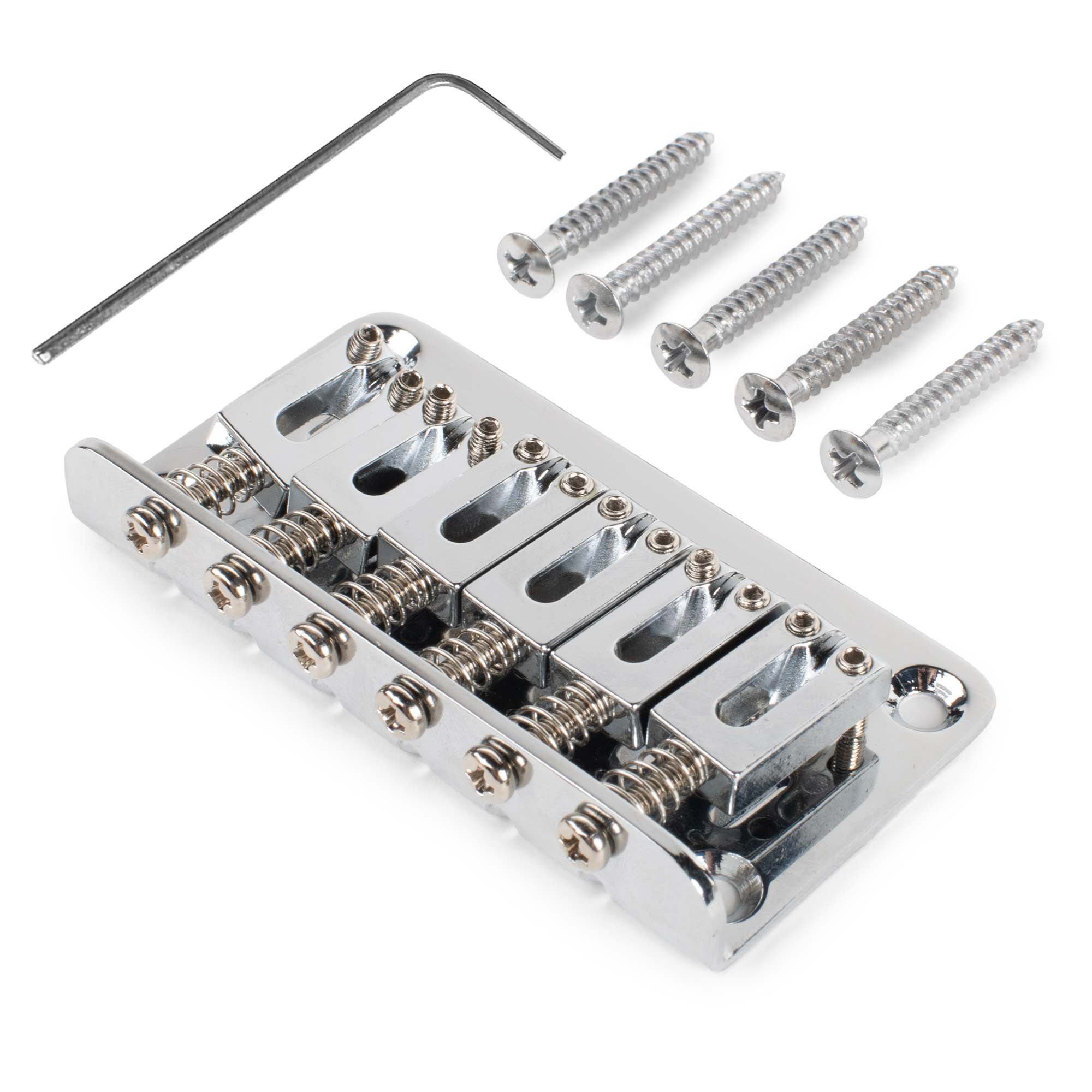

Chrome
Item # 104583
In stock, ready to ship!
$15.49
New

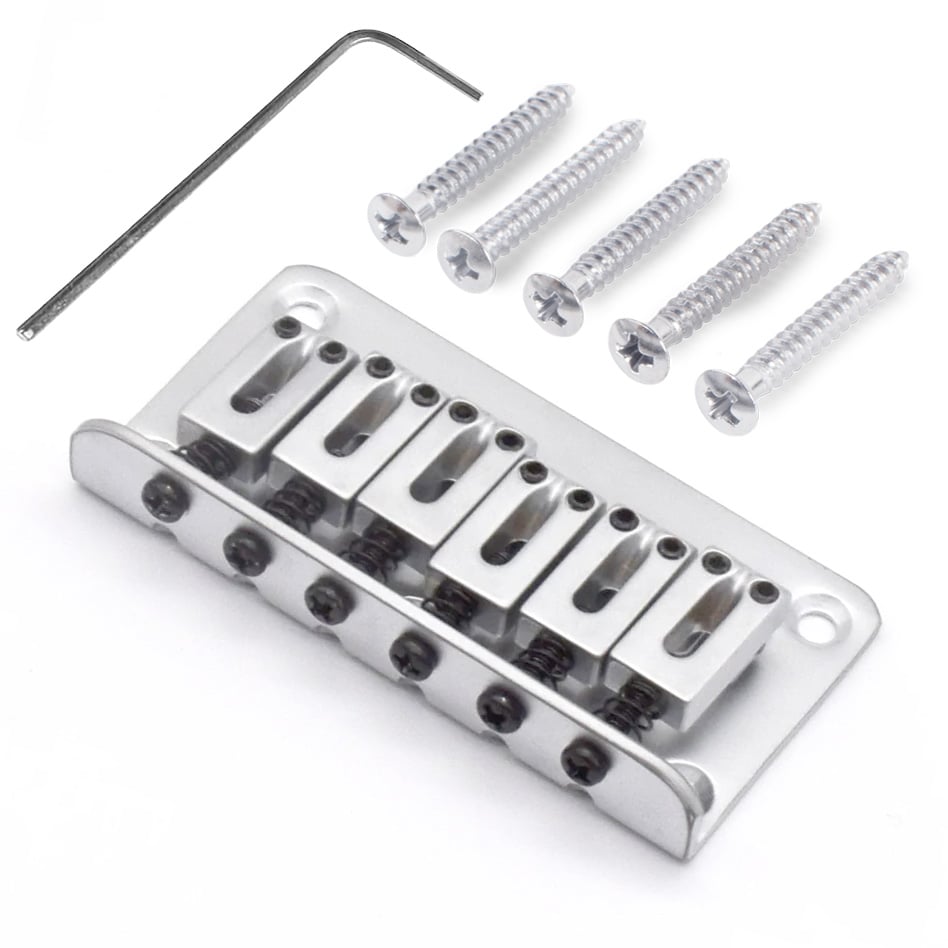

Satin Chrome
Item # 104584
In stock, ready to ship!
$20.49
New

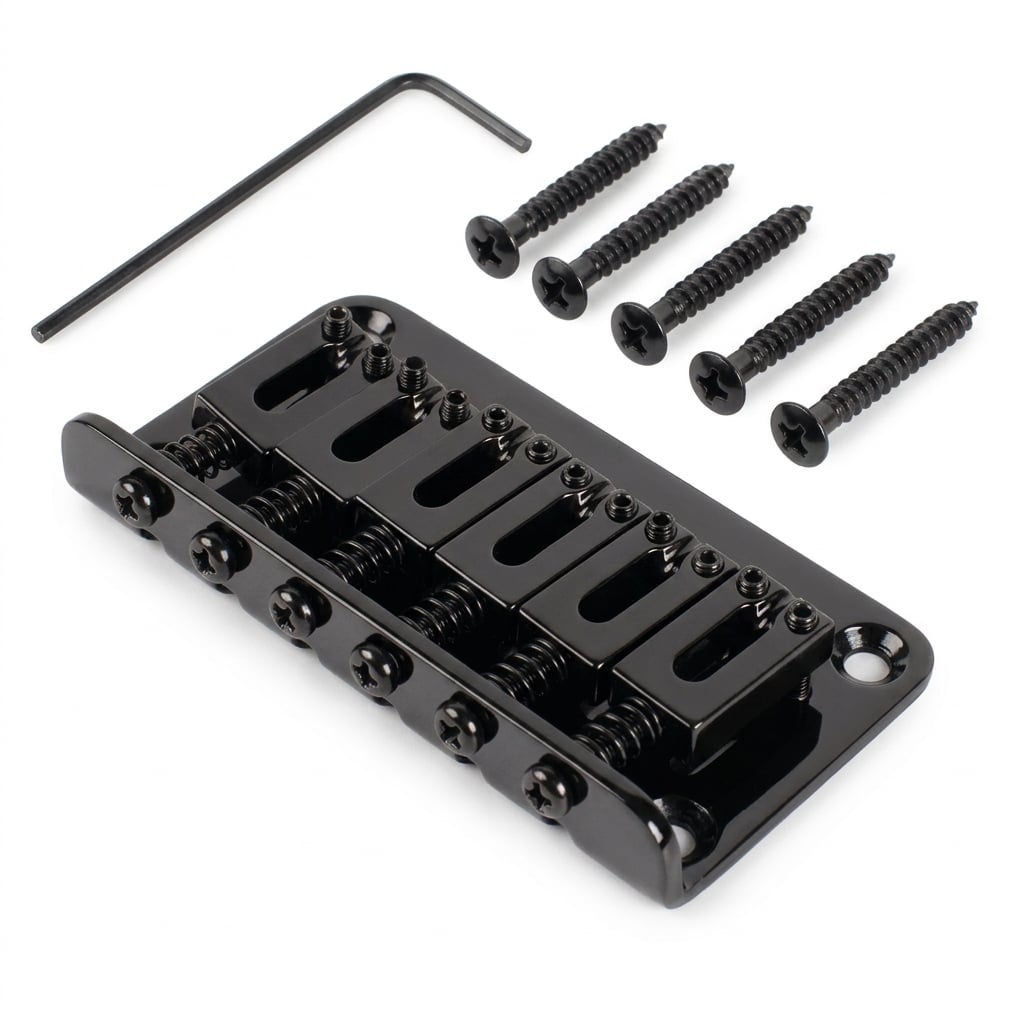

Black
Item # 104585
In stock, ready to ship!
$21.99
New

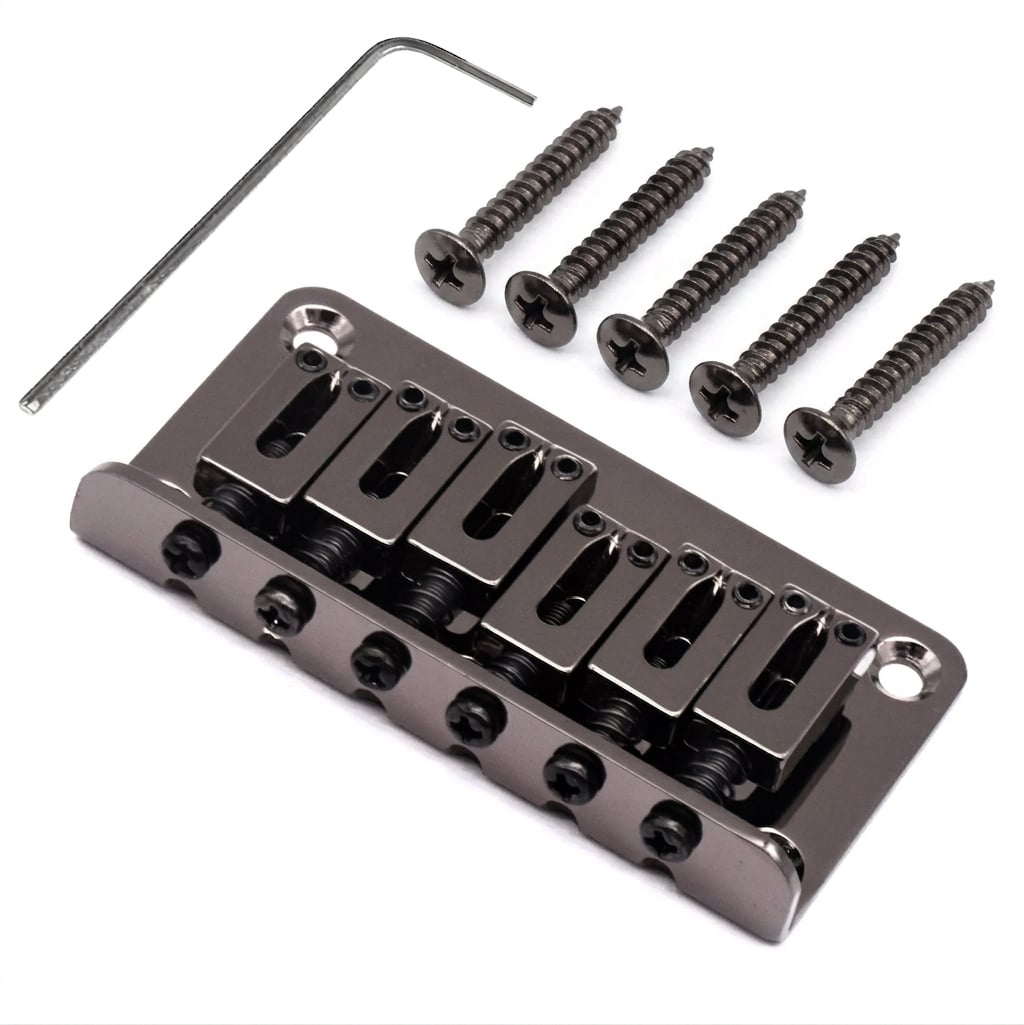

Black Nickel
Item # 104586
In stock, ready to ship!
$19.49
StewMac Dual-Load Hardtail Bridge
Keep the hardtail. Choose the string path later.

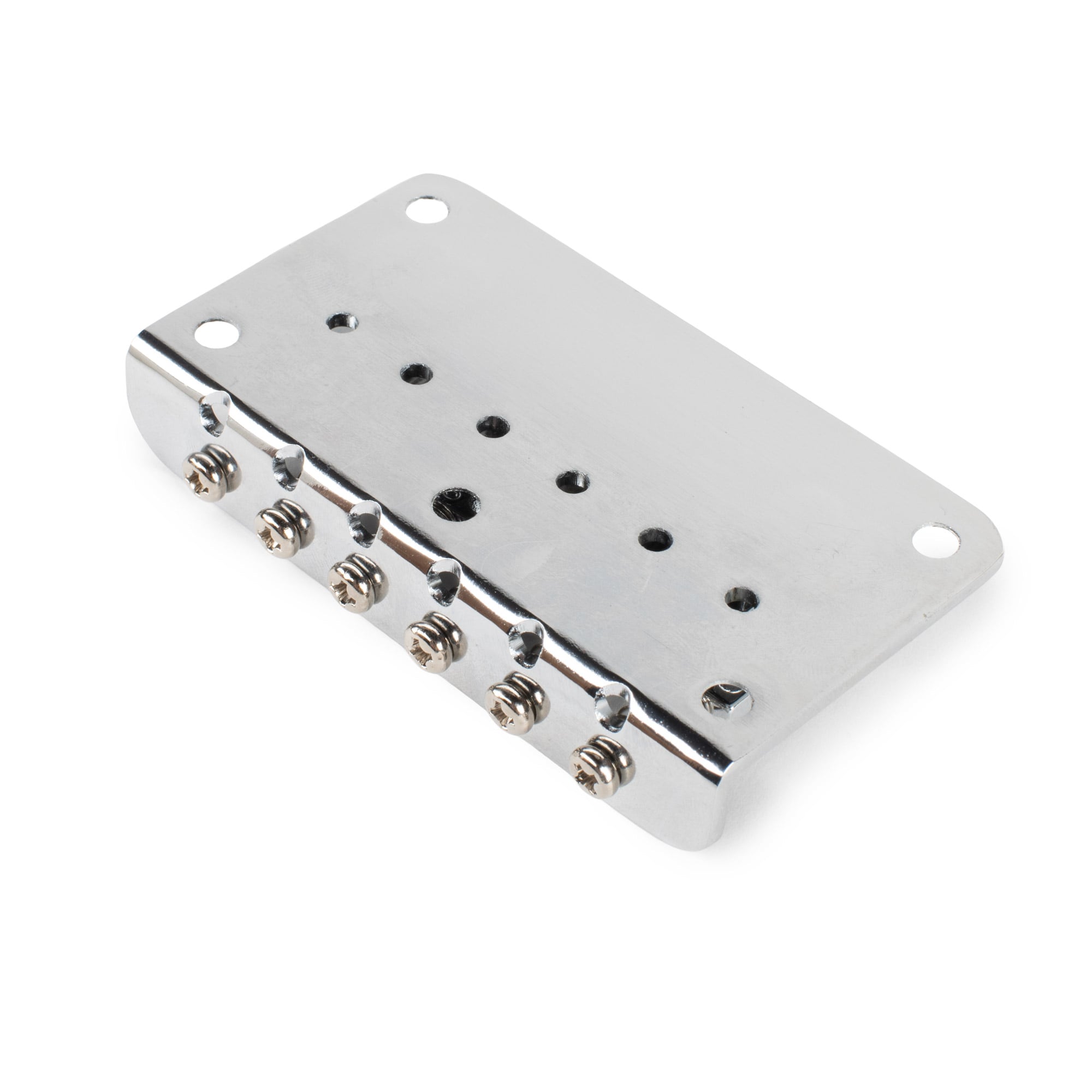

This hardtail lets you load the strings through the back of the plate or run them through the body, so you can choose the break angle and feel that suits the build. It also gives you a practical option when you want to keep a project moving before committing to ferrule holes in the body.
Six individual saddles give you separate control over string height and intonation, and the flat 5-screw mount keeps installation straightforward. It is a clean, functional bridge for hardtail builds where flexibility matters.
Specifications:
- String spacing: 13/32" / 0.413" / 10.50mm
- String spread: 2-1/16" / 2.067" / 52.50mm
- Mounting hole spread width: 2-5/8" / 2.638" / 67.00mm
- Mounting hole spread depth: 1-1/8" / 1.122" / 28.50mm
- Baseplate: 3-3/32" x 1-11/16" / 3.091" x 1.673" / 78.50mm x 42.50mm
Features:
- Baseplate material: Steel
- Saddle material: Zinc
- Mount: 5-Hole
- Stringing: String-through-body or top-load
- Includes: 5 mounting screws
