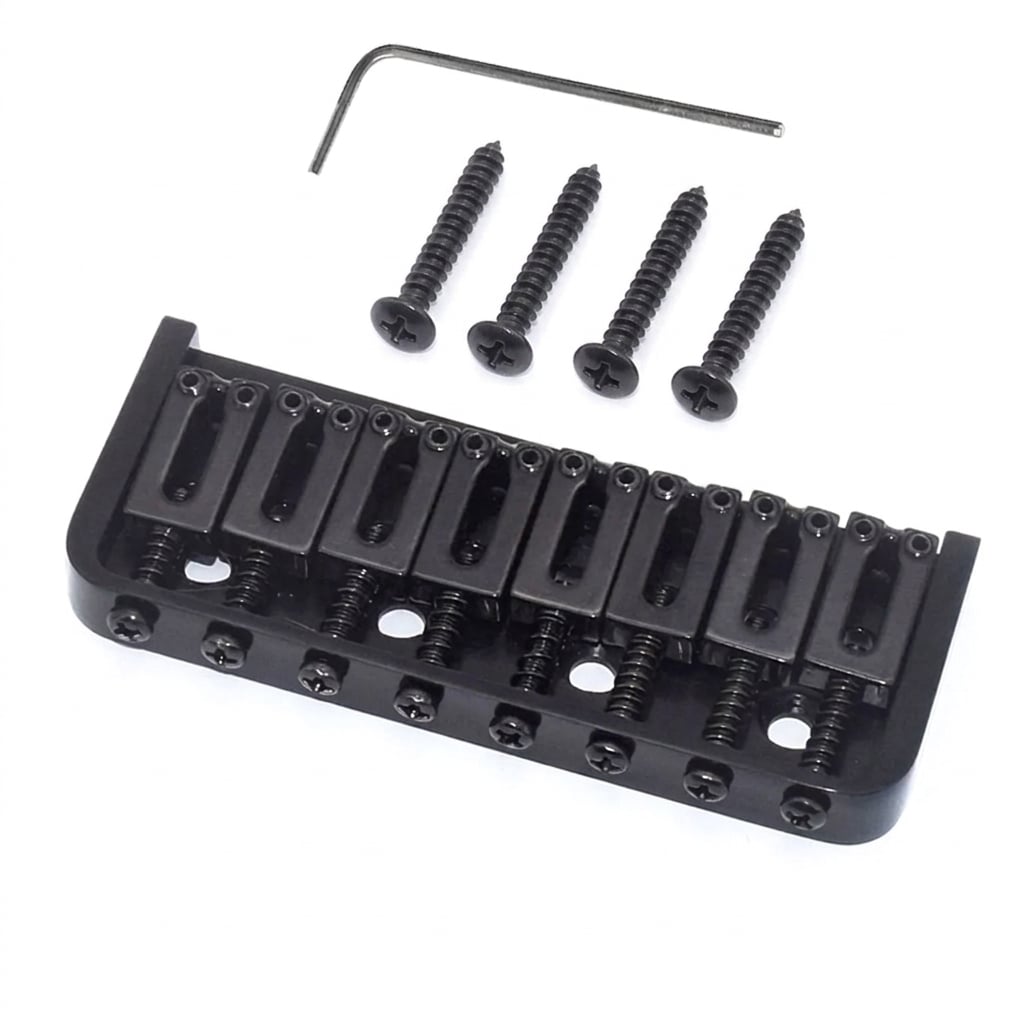

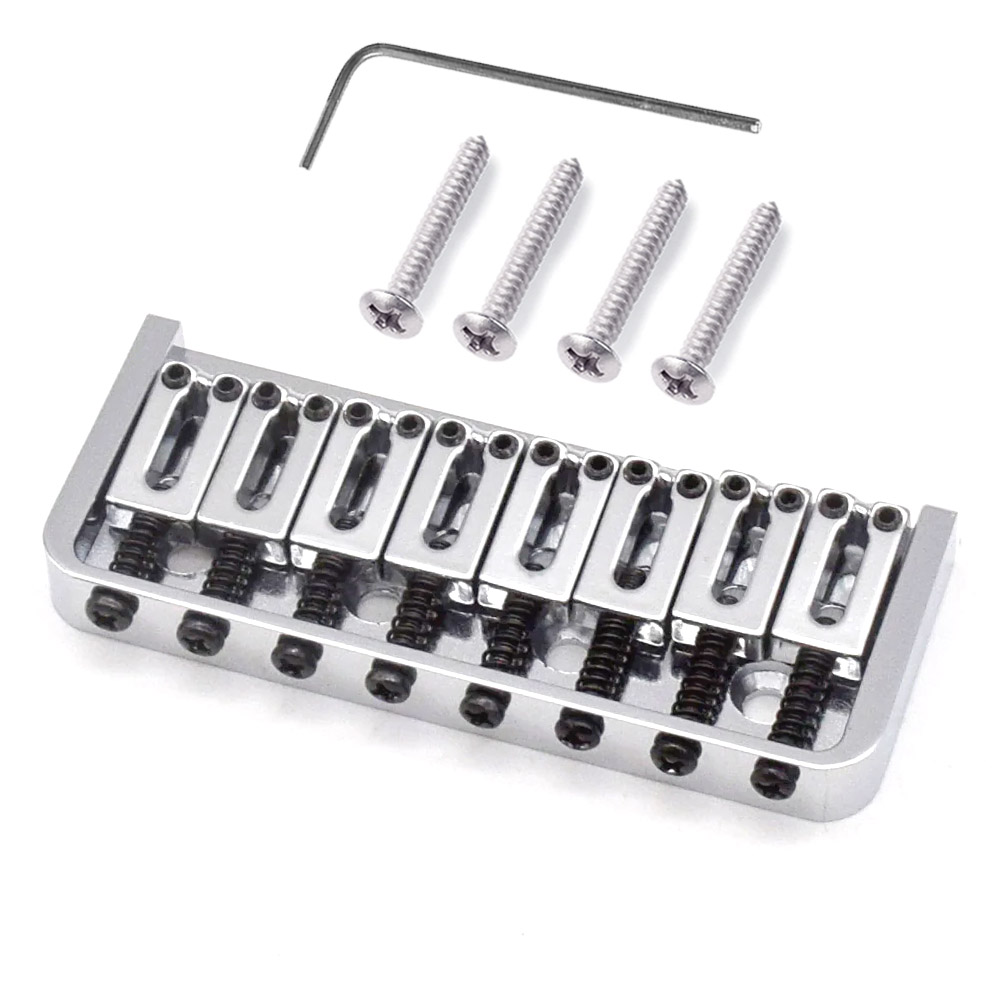

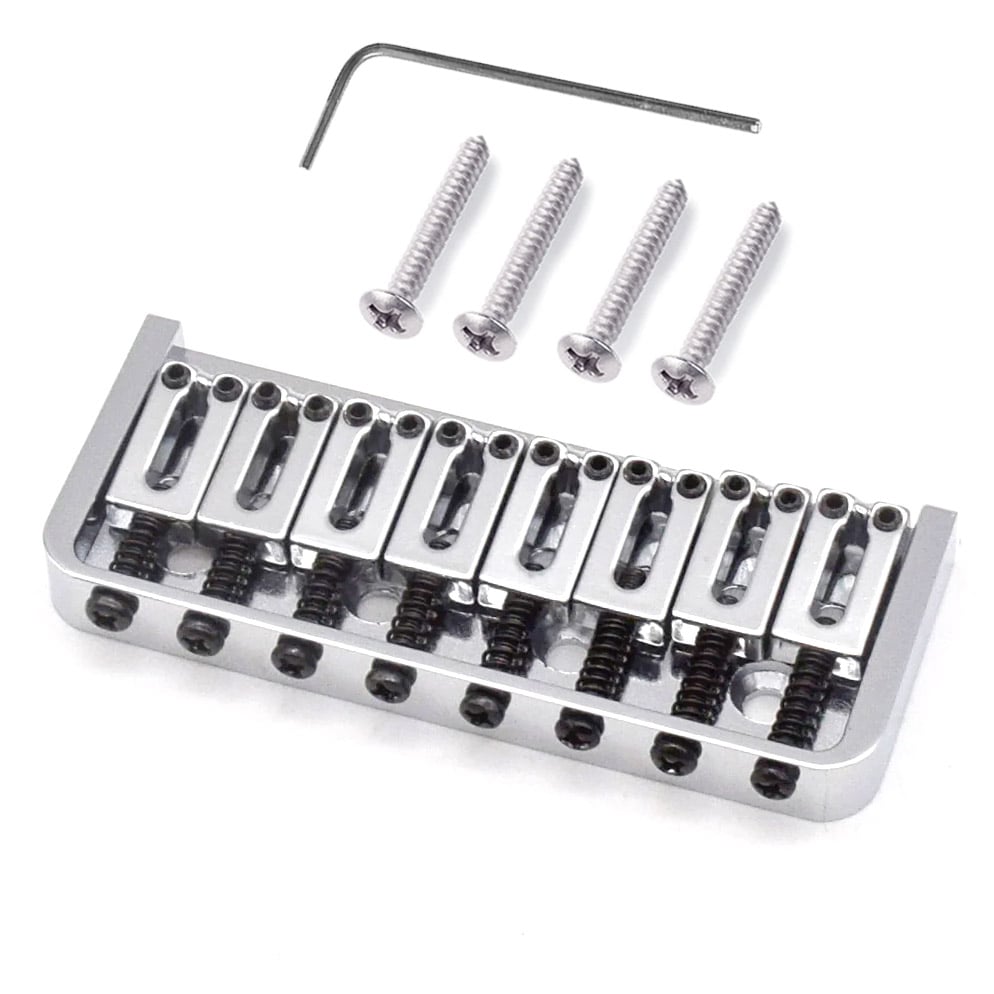

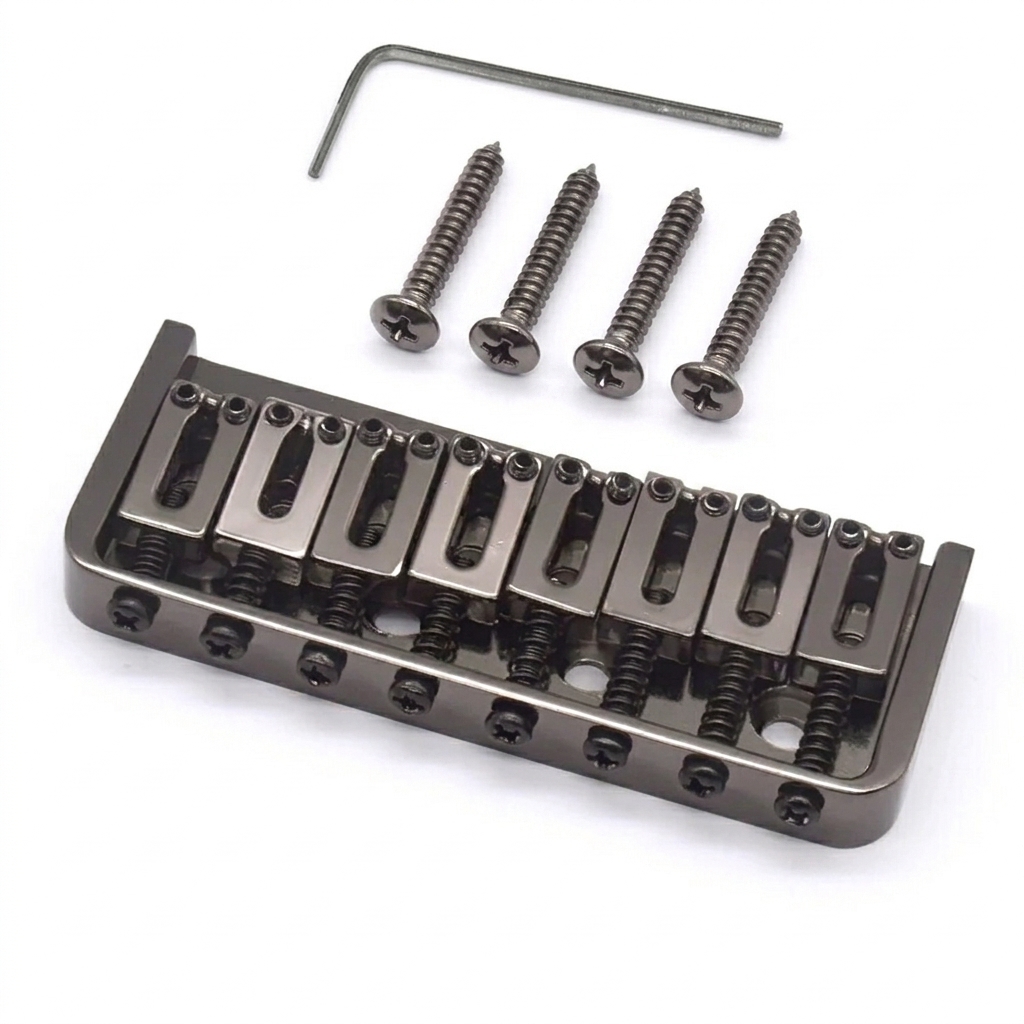

StewMac 8-String Hardtail Bridge

StewMac 8-String Hardtail Bridge

A familiar hardtail look for 8-string builds.

An 8-string guitar introduces a massive amount of tension and requires a wide intonation range. This bridge takes the familiar, straightforward hardtail layout and sizes it for an 8-string. The walled baseplate anchors firmly to the body, giving you a solid foundation that minimizes side-to-side movement.

Thick, heavy-gauge strings need a steep break angle to seat firmly without rattling, and this string-through-body design pulls the strings down tight over the saddles, with plenty of travel to accurately intonate all 8 strings. Each saddle is individually adjustable for height, making it easy to dial in the action and match your fingerboard radius.

Specifications:

• String spacing: 13/32" / 0.413" / 10.50mm
• String spread: 2-29/32" / 2.894" / 73.50mm
• Mounting screw spread: 2-19/32" / 2.579" / 65.50mm
• Plate dimensions: 3-11/16" x 1-1/2" x 25/64" / 3.681" x 1.496" x 0.386" / 93.50mm x 38.00mm x 9.80mm

Features:

• Material: Zinc base plate and saddles
• Mount: 4-screw, string-through-body
• Includes: 4 mounting screws
