StewMac 7-String Hardtail Bridge, Hipshot-style

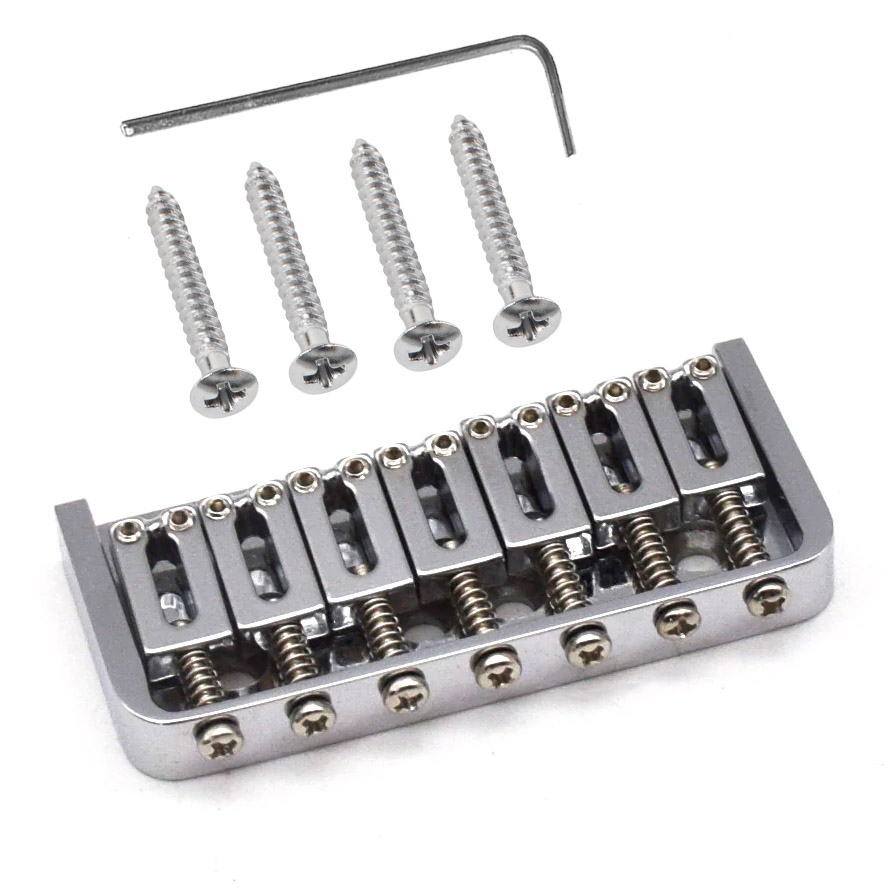

New
Chrome
Item # 104565
In stock, ready to ship!
$22.99

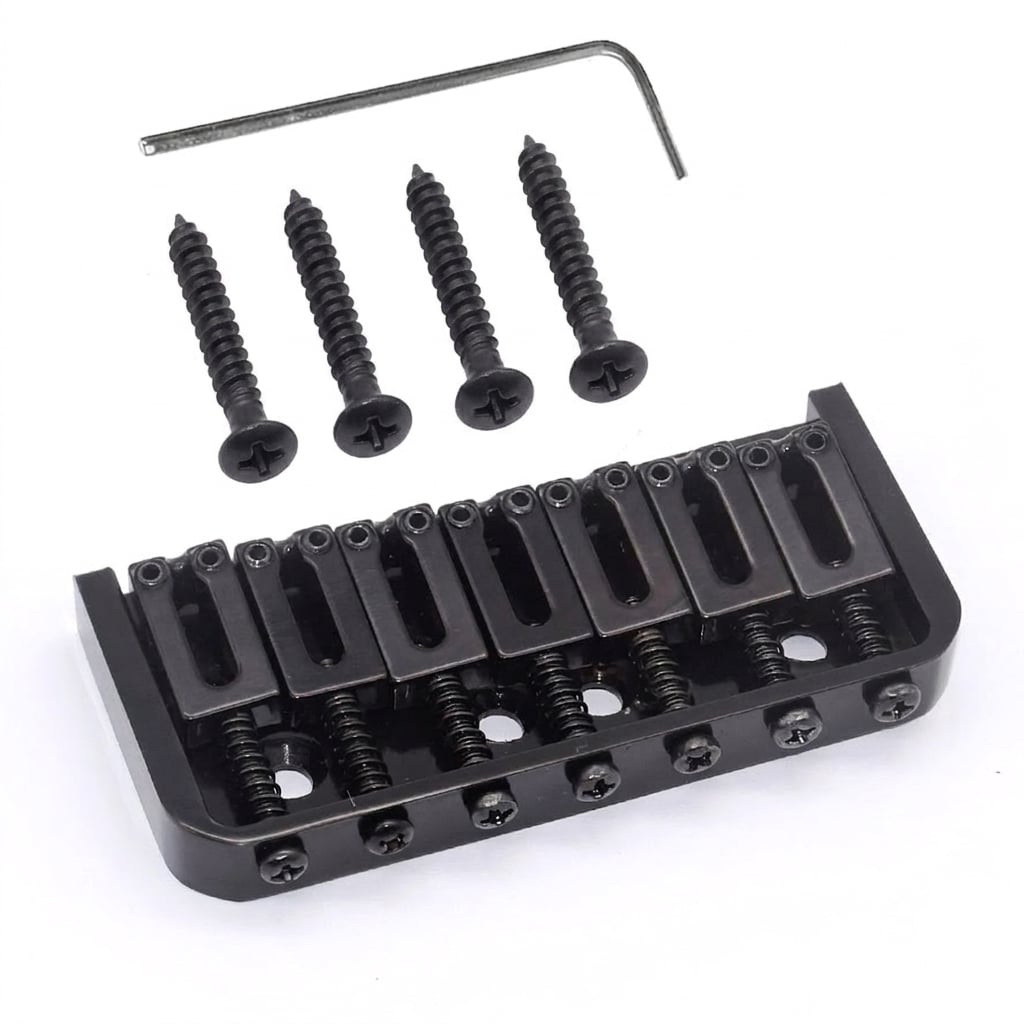

New
Black
Item # 104568
In stock, ready to ship!
$31.99

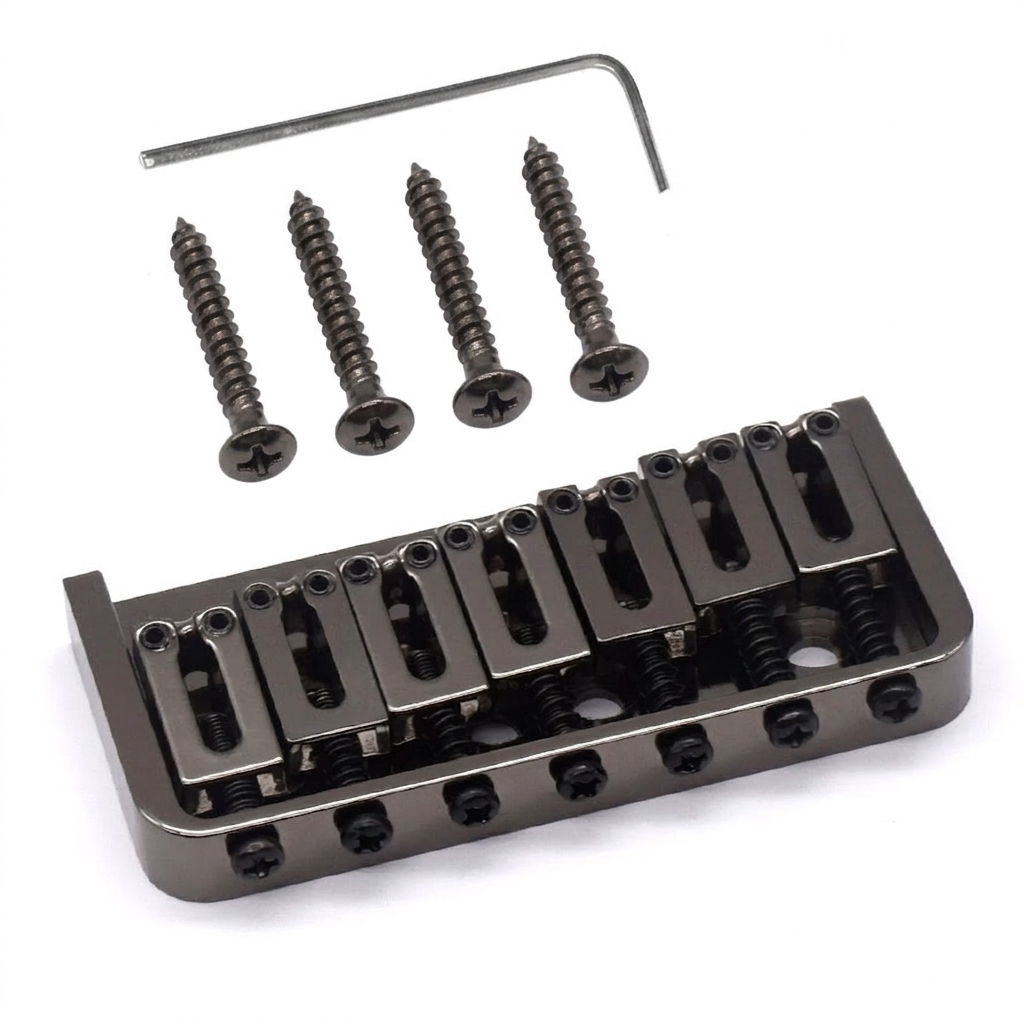

New
Black Nickel
Item # 104571
In stock, ready to ship!
$29.99
StewMac 7-String Hardtail Bridge, Hipshot Style
Compact layout. Precise control.
Modern 7-string builds need mass and stability, but players don't always want a giant bridge dominating the guitar top. This Hipshot-style hardtail keeps the baseplate compact while still giving every string an individual saddle for exact height and intonation.
The raised side walls lock those saddles in place, minimizing side-to-side shifting and rattle. Combined with a string-through-body design, it provides a tight, locked-down setup for extended-range guitars.

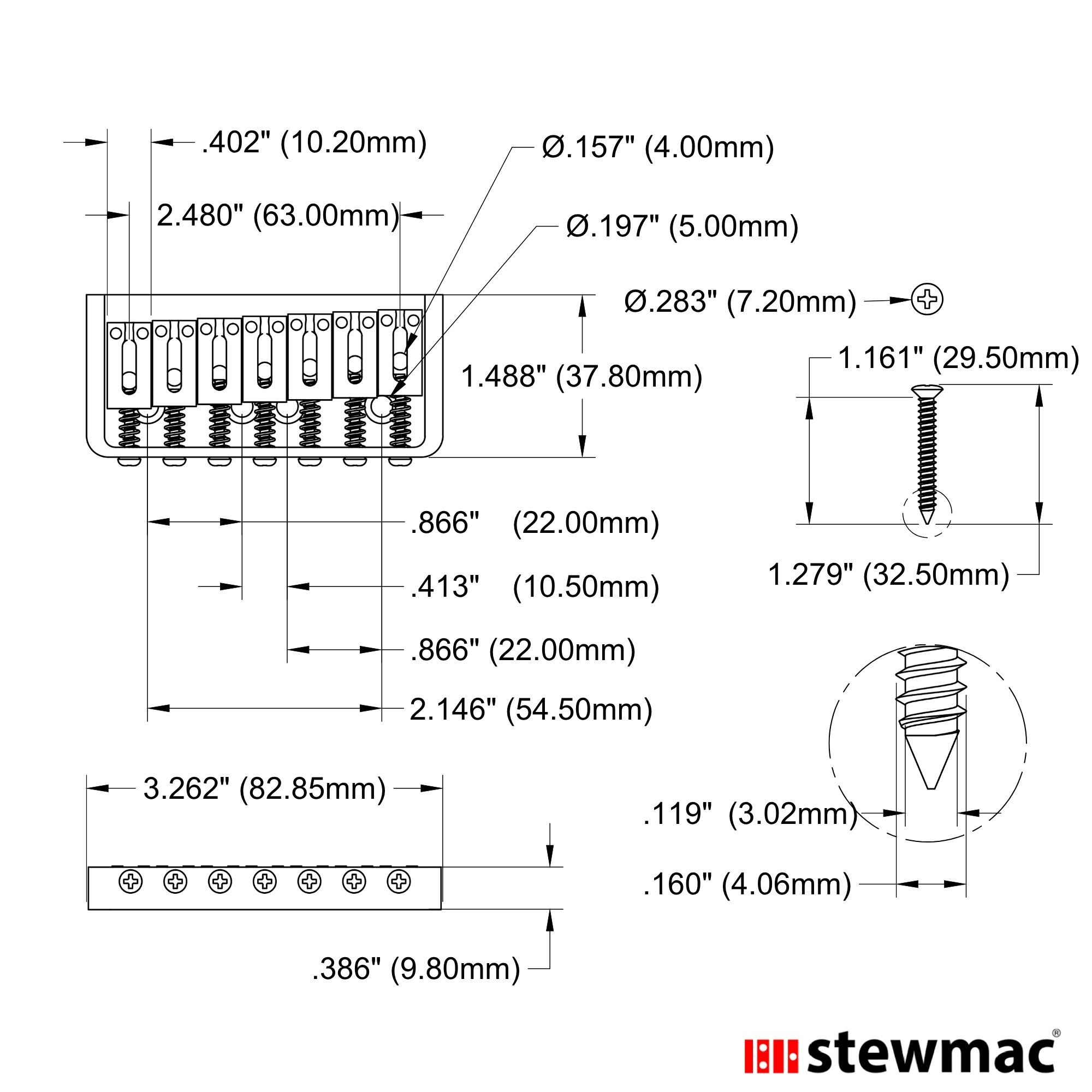

Specifications:
- String spacing: 13/32" / 0.413" / 10.50mm
- String spread: 2-15/32" / 2.480" / 63.00mm
- Mounting screw spread: 2-5/32" / 2.146" / 54.50mm
- Plate width: 3-9/32" / 3.268" / 83.00mm
- Plate depth: 1-1/2" / 1.496" / 38.00mm
- Plate height: 25/64" / 0.386" / 9.80mm
Features:
- Material: Zinc plate with zinc saddles
- Mount: 4-screw, Hipshot style
- Stringing: String-through-body
- Includes: 4 mounting screws
