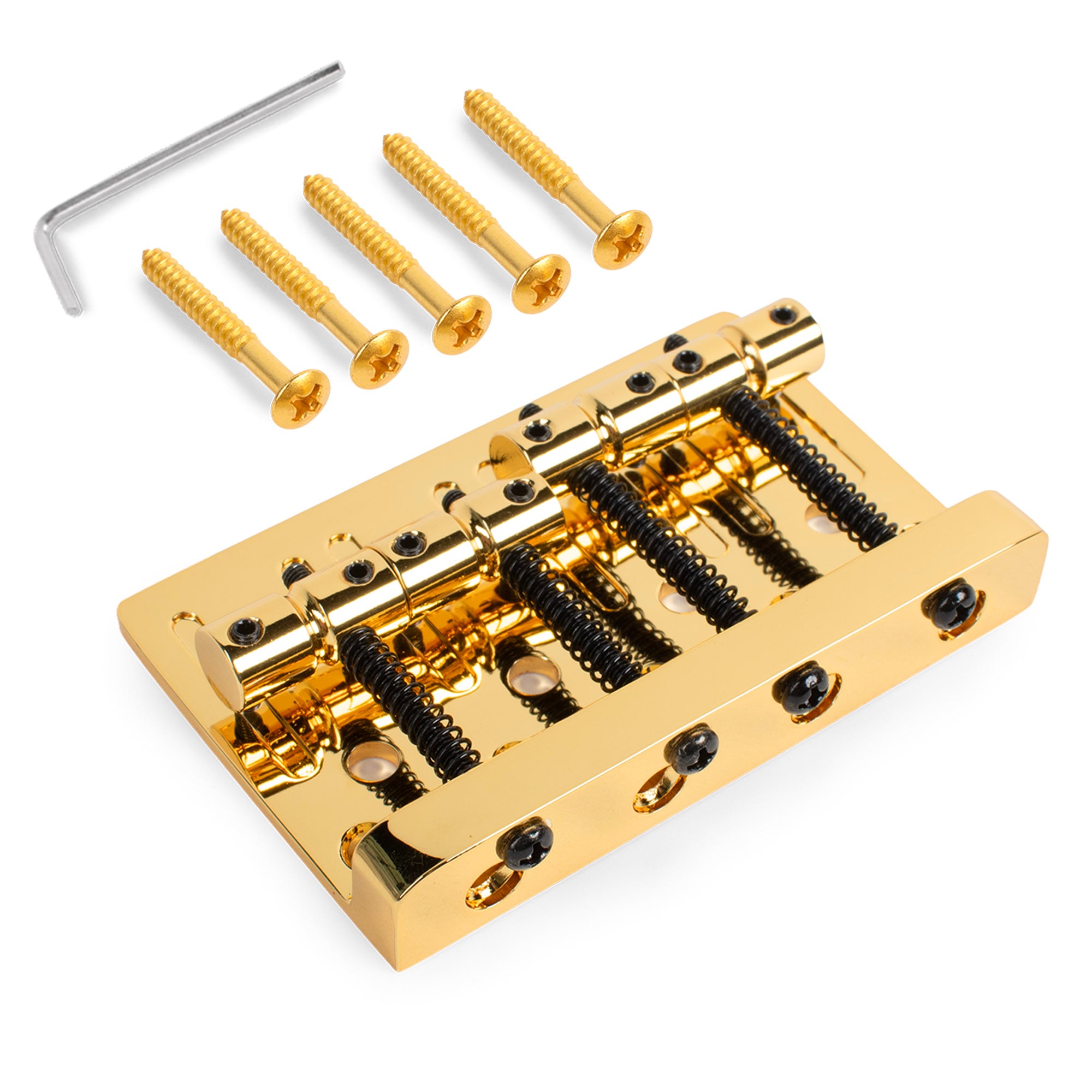

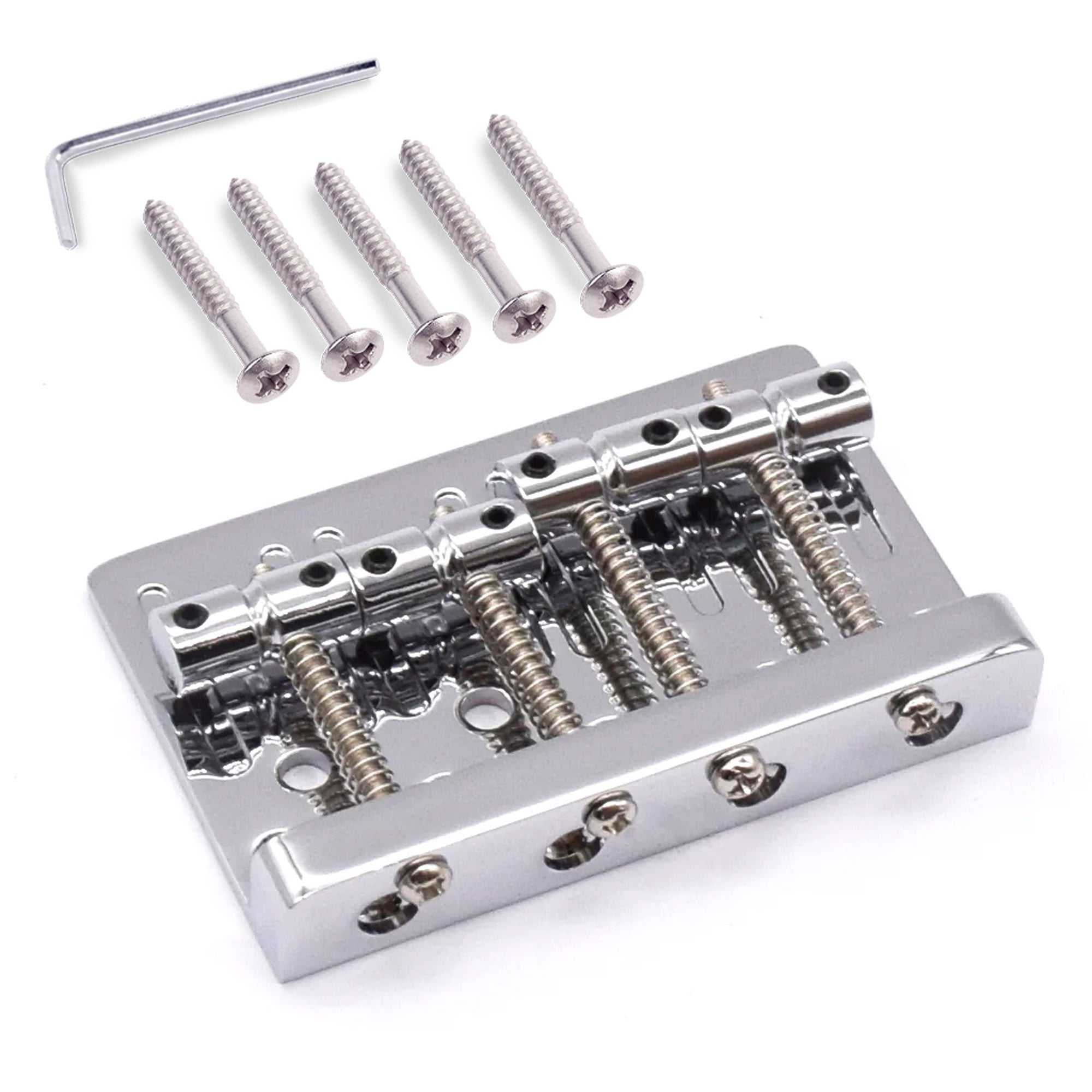

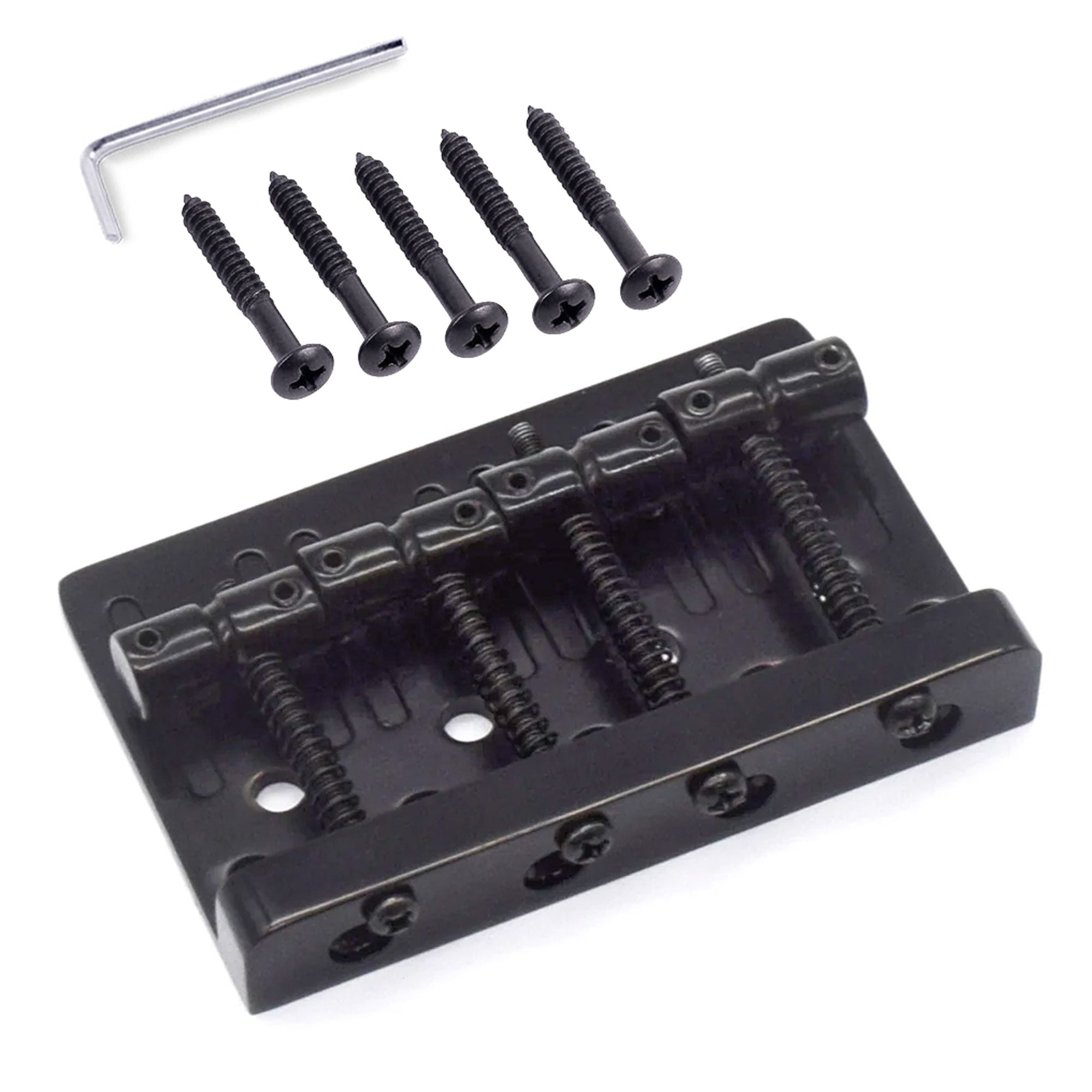

StewMac Dual-Load Bass Bridge

StewMac Dual-Load Bass Bridge

Vintage-style design with flexible string loading.

This bass bridge uses the familiar bent-plate design with four barrel saddles. It has the look and low-profile feel of a classic vintage-style bridge, with the added flexibility of top-load or string-through-body installation.

That added stringing option gives you a choice between a steeper or gentler break angle, depending on how you want to set up the bass. Each saddle adjusts individually for string height and intonation, so you can dial in the setup to fit the instrument.

Specifications:

• String Spacing: 3/4" / 0.748" / 19mm
• String Spread: 2-1/4" / 2.244" / 57mm
• Overall Width: 3-3/16" / 3.197" / 81.20mm
• Overall Depth: 2-3/32" / 2.087" / 53.00mm
• Height: 9/16" / 0.551" / 14.00mm
• Mounting Screw Spread: 2 3/4" / 2.756" / 70.00mm

Features:

• Material: Zinc plate, steel saddles
• Mount: 5-screw
• Stringing: Top-load or string-through-body
• Includes: 5 mounting screws
