Premium Wiring Kit for Gibson® SG® with Push-pull Pots
These kits make it easy to order premium components for wiring your Gibson® SG®. CTS push-pull pots split the coils of humbuckers for single-coil operation. For humbucking pickups with series link access (3 wire, 5 wire, etc).
Complete with wiring diagram, the kit features trusted components used for decades in Gibson® and other iconic American instruments.
-
Premium Wiring Kits feature premium components like
- Switchcraft toggle switch and output jack
- CTS potentiometers
- Orange Drop capacitors
- Push-back wire
Be sure your control knobs will fit: CTS pots in these kits have fine-knurled (24-spline) split shafts. Coarse-knurled knobs for imported Alpha pots won't fit. Need knobs? Check here.

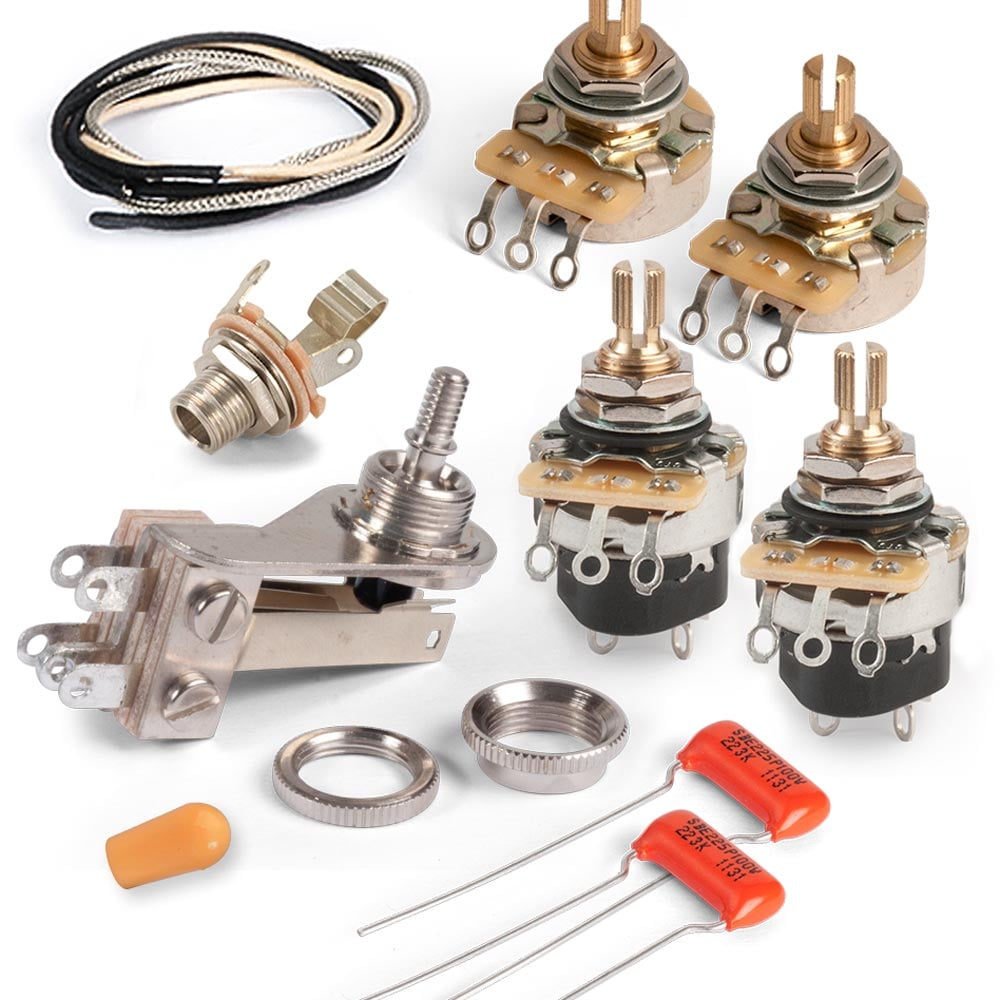

Premium Wiring Kit for Gibson SG includes:| Qty | Item | ||
| 1 | Switchcraft long-thread output jack | ||
| 2 | .022uF Orange Drop Caps | ||
| 1 | Switch knob (amber) | ||
| 1 | Switchcraft 3-way right-angle switch | ||
| Switch length | 2" | (50.80mm) | |
| Threaded portion | 3/16" | (4.76mm) | |
| Required mounting hole dia. | 1/2" | (12.70mm) | |
| Required body cavity depth | 13/16" | (20.64mm) | |
| Requires at least 1-3/4" (44.45mm) from the center of the mounting hole to the edge of the control cavity for wiring clearance. | |||
| 4 | CTS 500K-ohm control pots (2 regular, 2 push-pull) | ||
| Shaft diameter | 0.235" (5.95mm) split shaft, fine knurling |
||
| Thread | 3/8" x 32 | ||
| Threaded portion | 3/8" | (9.52mm) | |
| Required mounting hole diameter | 3/8" | (9.52mm) | |
| Required cavity depth | 1-3/16" | (30.16mm) | |

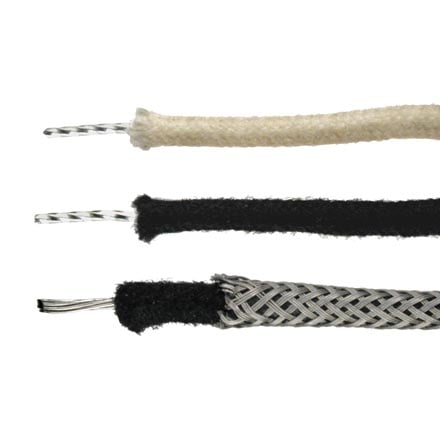

| 12" | Braided-shield push-back guitar circuit wire, 22AWG inner conductor | ||
| 12" | Non-shielded push-back guitar circuit wire, 22AWG white | ||
| 24" | Non-shielded push-back guitar circuit wire, 22AWG black | ||
| Wiring diagram | |||
