StewMac Overwound Humbucker Pickups
The overwound versions of our StewMac Humbucker Pickups! The same Alnico 5 magnets, but overwound to 12K ohms for high output, powerful midrange, and driving tone.
The new standard for overwound pickups
When your stock pickups need more power, these are the perfect upgrade. More than just high output, the Alnico 5 magnet produces a clear tone with more pronounced highs and a full but defined bass. Never get your tone lost in the mix again.
The 6 adjustable screws let you easily dial in the voice of the pickup, while the slugs give you all the punch you need. With four-conductor wiring, you get the modern features you want: coil splitting, phase switching, series/parallel switching, whatever you can dream up!
Specifications
- High output humbucker pickup
- Neck position polepiece spread: 1.970" (50mm)
- Bridge position polepiece spacing: 2.015" (51mm)
- Poly-coated 43 AWG coil wire
- Potted to suppress noise
- Alnico 5 magnet
- Four-conductor insulated lead wires
Output
- Neck position: 12K ohm range
- Bridge position: 12K ohm range

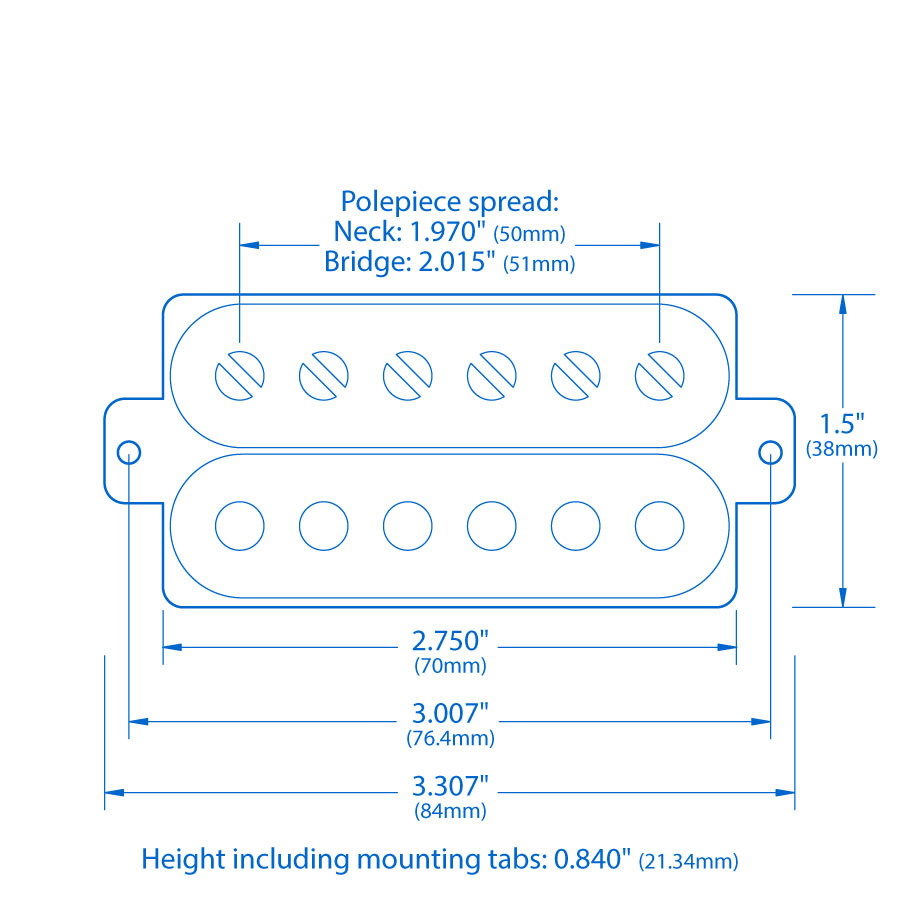

Dimensions
- Length including mounting tabs: 3.307" (84mm)
- Length not including mounting tabs: 2.750" (70mm)
- Mounting screw spacing: 3.007" (76.4mm)
- Width: 1.5" (38mm)
- Height including mounting tabs: 0.840" (21.34mm)
Looking for a smoother tone? Our StewMac Humbucker Pickups have the same build quality with lower output.
Mounting screws, springs and wiring diagrams are included.
There have always been slight variations in the color of the cream plastic parts used on Gibson and other guitars. It's not uncommon to see brand new and vintage guitars with bindings, pickup rings, toggle switch rings and pickguards that don't perfectly match in color. We do our best to match all our cream products, but there's no absolute control from batch to batch, or from supplier to supplier.
