EMG T Pickup Set for Tele®
The EMG T Set is a new take on the classic Telecasters® pickup. Don't let the looks fool you, the T Set gives you all the twang and punch you'd expect with incredible clarity and definition with no hum.
The bridge pickup (RT) gives players that classic chime without the 'ice pick' and a rich low end. When overdriven, this guitar pickup screams with incredible sustain and edge.
The neck pickup (FT) has everything you want from a front single coil: clarity, warmth, and rich harmonic content that is perfectly matched to the back pickup.
The T Set uses Alnico magnets with custom engineered coils and windings to give your sound fullness and a broader bandwidth, well beyond your typical Tele® pickup. The EMG T Set covers rock, country, blues, fusion, R&B... and with the EMG solderless wiring system, it's easy to install on your own.
- RT Bridge Specifications:
- Logo Color: Gold
- Magnet Type: Alnico
- Resonant Frequency (KHz): 3.70
- Output Voltage (String): 1.00
- Output Voltage (Strum): 3.00
- Output Noise (60 Hz): -101
- Output Impedence (Kohm): 10
- FT Neck Pickup Specifications:
- Logo Color: Gold
- Magnet Type: Alnico
- Resonant Frequency (KHz): 4.85
- Output Voltage (String): 1.00
- Output Voltage (Strum): 3.00
- Output Noise (60 Hz): -101
- Output Impedence (Kohm): 10
- Pickup Set Specifications:
- Current @9V (Microamps): 160
- Battery Life (Hours): 1500
- Maximum Suppy (Volts DC): 27

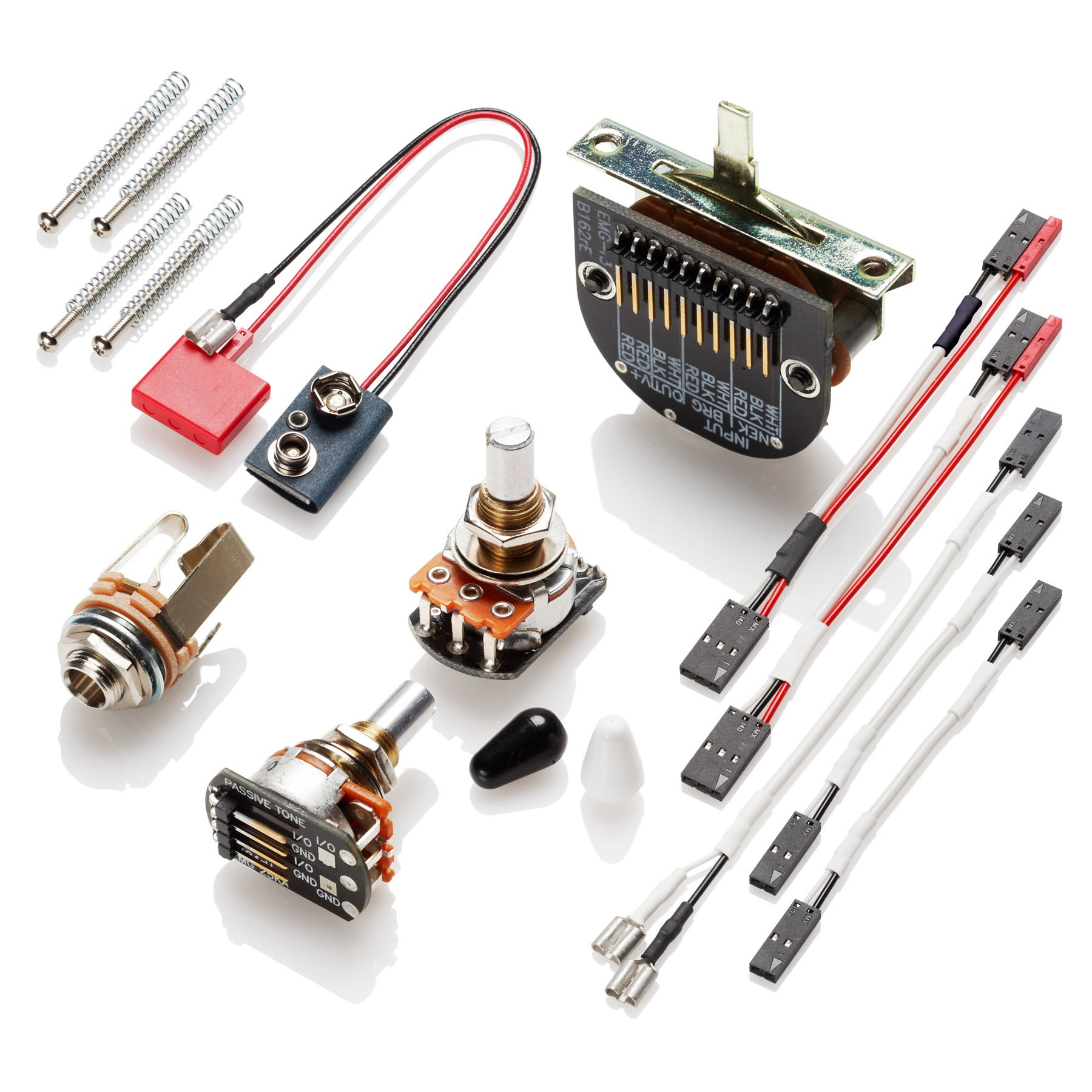

- The T Set features:
- EMG's Exclusive Solderless System
- 1 - 25K Volume Pot
- 1 - 25K Tone Pot
- 1 - Stereo Output Jack
- 1 - 3-way Selector Switch and Tip
- 2 - Pickup Cables
- 2 - Connect Cables
- 1 - Output Cable
- 1 - Battery Cable
