Fishman ToneDeq AFX Preamp, EQ and DI with Dual Effects

Fishman ToneDeq AFX Preamp, EQ and DI with Dual Effects Item # 3302 No longer available
Sold out
Please enter a quantity

Fishman ToneDeq AFX Preamp, EQ and DI with Dual Effects

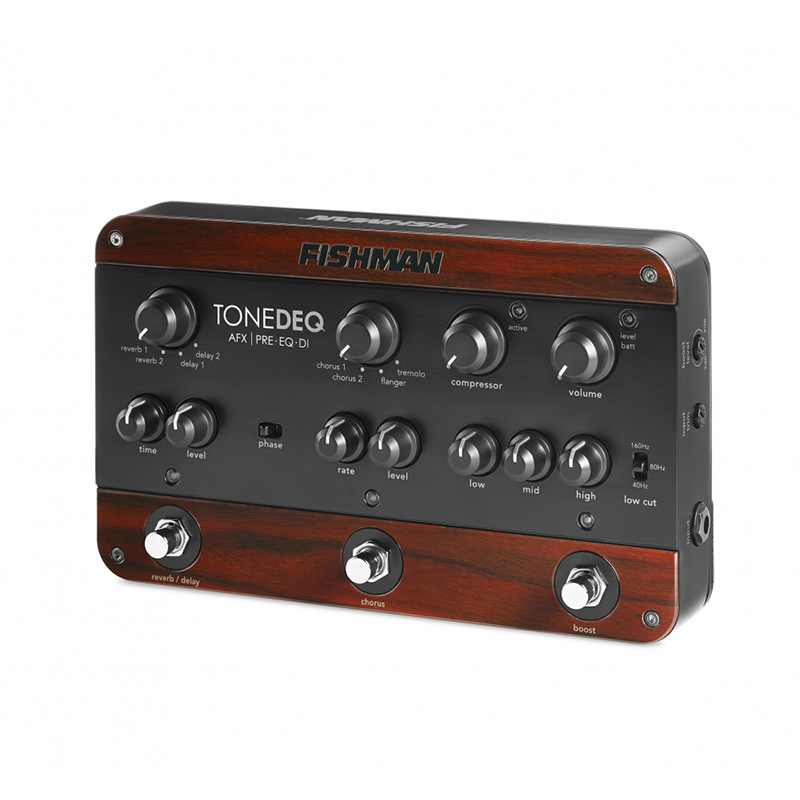

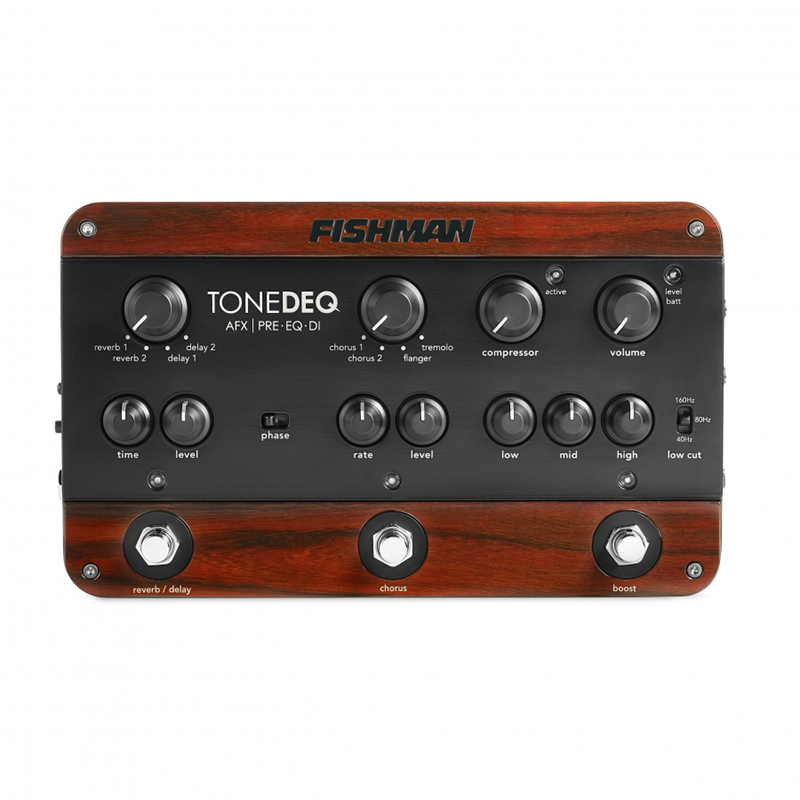

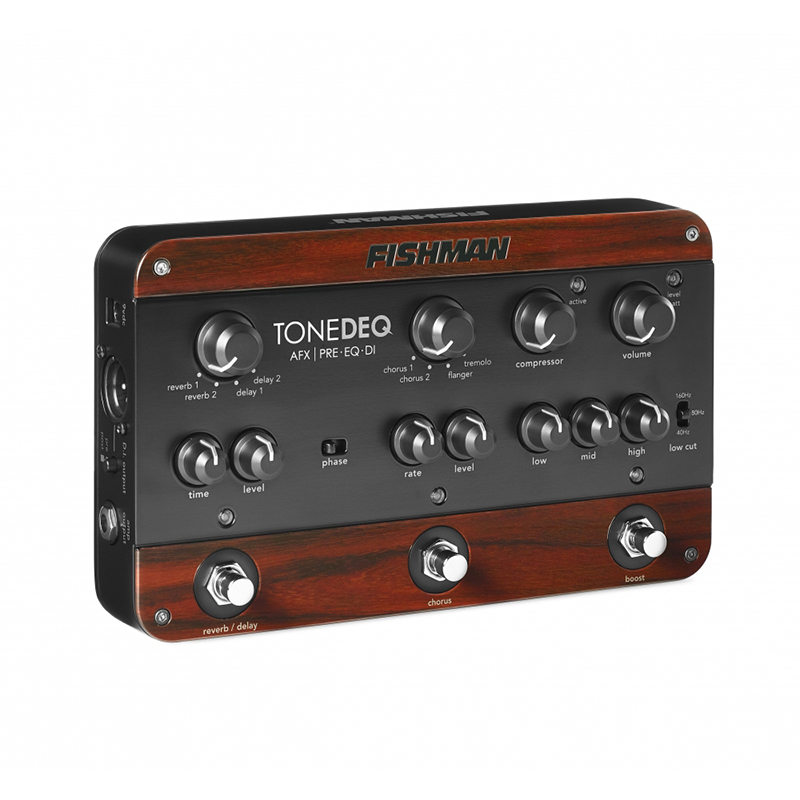

The ToneDEQ Preamp EQ is a complete performance solution for the acoustic musician. With a high-quality preamp, dual effects section, tone controls, a compressor, level booster and a balanced D.I. — it's got everything you need in one box.

Pure Analog Circuitry
Its analog signal path goes from end to end — from preamp to output — to give acoustic musicians a richer tonal quality. Even the digital effects are mixed in parallel so they don’t affect the purity of your acoustic instrument.

Fully Balanced Stage D.I.
Flexible outputs include a 1/4" amplifier output and XLR D.I. output for the lowest noise possible. Plus the D.I. features automatic ground-lifting and selectable pre/post EQ settings.

Discrete Class-A Preamp

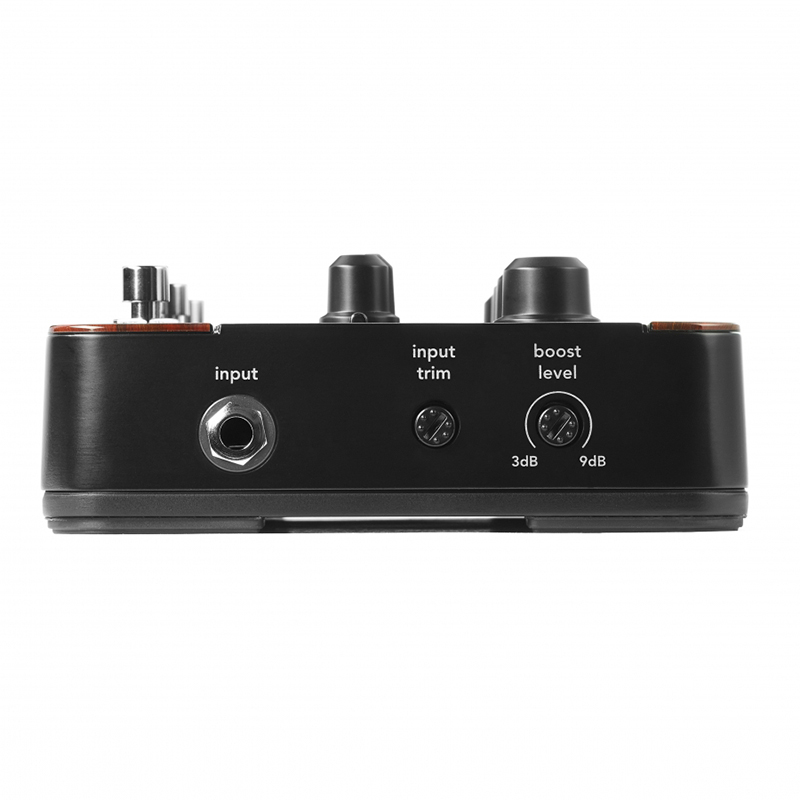

With Fishman, you get quality discrete class-A signal conditioning created by the leader in instrument preamp design. The high-impedance input is a must when using a passive instrument pickup.

Advanced 4-Band EQ Legendary 4-band equalizer design provides superior tone control for any acoustic instrument. The variable low-cut filter controls sub-bass effects produced by some passive pickups.

  • 10M Ohm, discrete class-A JFET design
  • All-analog signal path with parallel digital effects
  • Tone Control: 4-band EQ with Bass, Middle, Treble, and selectable Low Cut
  • Dual Effects: Reverb (2) or Delay (2), Chorus (2), Flanger or Tremolo
  • Soft-knee Compressor, Boost footswitch (up to 9dB)
  • Selectable Phase invert
  • 1/4" mono instrument input, 1/4" amplifier output, balanced XLR D.I. output with pre/post routing
  • 12 hours battery life powered by 9-volt battery (not included), or Fishman 910-R power adapter (optional)

Dimensions: 5.36" L x 9.5" W x 2.2" H (136 mm) (241 mm) (56 mm)
Weight: 2.5 lbs (1.1 kg)
