Carbide Upcut Inlay Router Bits

(6)
Carbide Upcut Inlay Router Bits, 1/8" dia.
1/8" dia. Item # 5377 In stock, ready to ship!
$35.56
Carbide Upcut Inlay Router Bits, 3/32" dia.
3/32" dia. Item # 5376 In stock, ready to ship!
$35.56
Carbide Upcut Inlay Router Bits, 1/16" dia.
1/16" dia. Item # 5375 In stock, ready to ship!
$35.56
Carbide Upcut Inlay Router Bits, 3/64" dia.
3/64" dia. Item # 5374 In stock, ready to ship!
$35.56
Carbide Upcut Inlay Router Bits, 1/32" dia.
1/32" dia. Item # 5373 In stock, ready to ship!
$35.56
Carbide Upcut Inlay Router Bits, Set of all 5 sizes
Set of all 5 sizes Item # 5385 In stock, ready to ship!
15% OFF!
$177.80
$151.13
Original:
$
Save:
$
Total:
$
Qty:
Please enter a quantity

Carbide Upcut Inlay Router Bits

Want better fitting saddles and inlays?

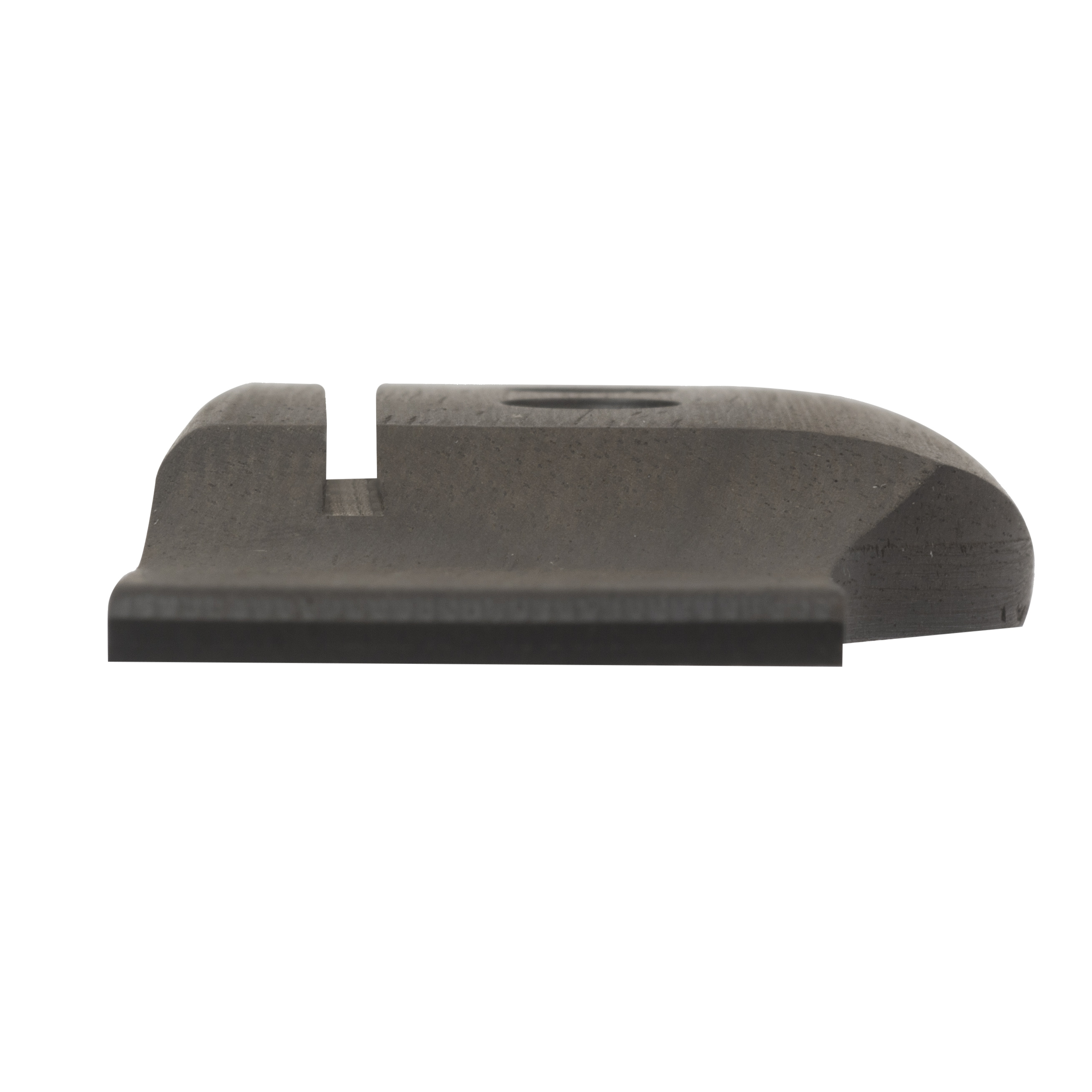

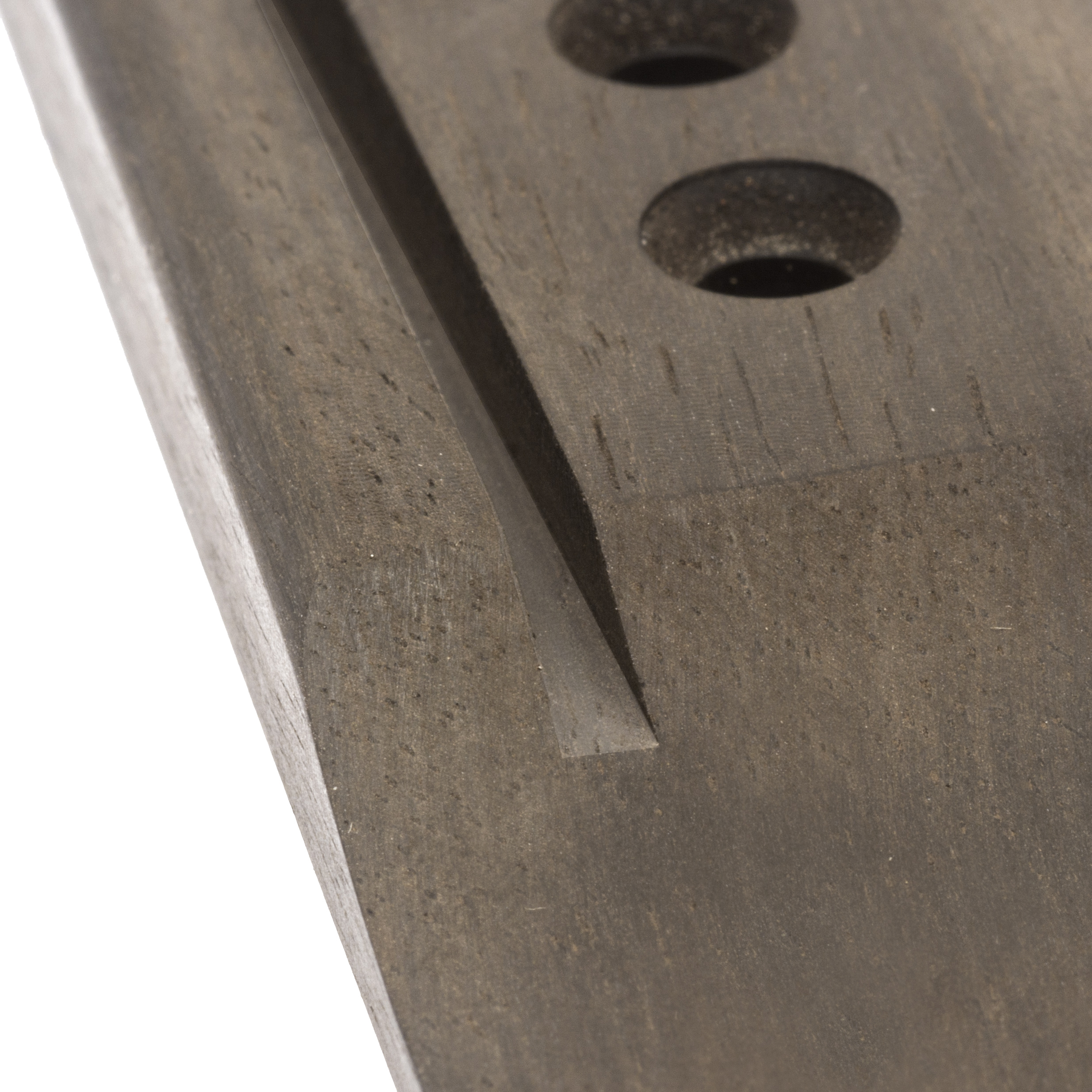

When you're cutting a saddle slot, you need the bottom of the rout to be perfectly flat for better tone transfer. Upcut bits leave the bottom of the slot perfectly clean, exactly what you want for getting tight contact with saddles and acoustic pickups.

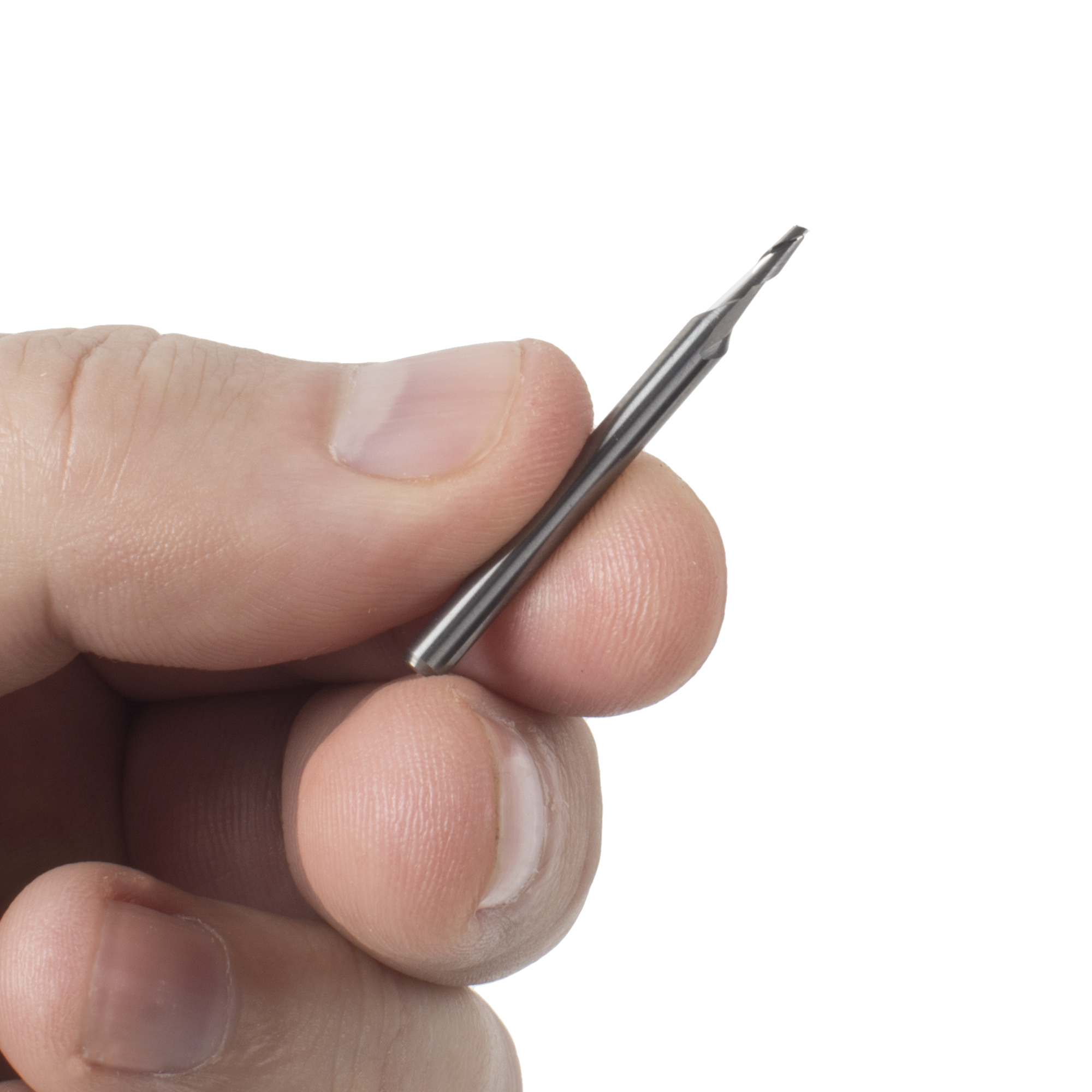

Made of long lasting solid carbide, these bits will stay sharp job after job. They can be used with both Dremel and Foredom tools, routers and laminate trimmers, and CNC machines.

What type of bit do I need? In our shops we use both, depending on the job and the type of wood we're working on.

Upcut Bits cut a very clean bottom to the rout, with some fuzz around the top. These work well with harder woods like maple and ebony. We use upcut bits for jobs like saddle slot routing and clearing the insides of larger inlay routs like block inlays. They're ideal for deeper routs that need better chip removal.

For a very clean edge with the least grain tear out use Downcut bits.

Get all the bits you need
We have a set of all 5 upcut bits to add to your precision routing arsenal, and a set of all 10 Upcut and Downcut bits so you'll be prepared for any job and any type of wood.

Routing a saddle?
We've put together a Saddle Routing Set with the bits we use to cut a perfect, tight fitting saddle every time.

We have all the sizes you need to tackle your next job:

Upcut bit sizes:
Length: 1-1/2" (38.10mm)
Shank diameter: 1/8" (3.18mm)

#5377: 1/8" dia. bit for routing bridge saddle slots
Width: 1/8" (0.1250", 3.18mm)
Depth: 3/8" (0.375", 9.53mm)

#5376: 3/32" dia. bit for routing bridge saddle slots
Width: 3/32" (0.0938", 2.38mm)
Depth: 1/4" (0.250", 6.35mm)

#5375: 1/16" dia. for fine detail routing
Width: 1/16" (0.0625", 1.59mm)
Depth: 3/16" (0.188", 4.78mm)

#5374: 3/64" dia. for fine detail inlay routing
Width: 3/64" (0.0469", 1.19mm)
Depth: 1/8" (0.125", 3.18mm)

#5373: 1/32" dia. for fine detail inlay routing
Width: 1/32" (0.0313", 0.79mm)
Depth: 1/8" (0.125", 3.18mm)

To use our 1/8" shank bits in a 1/4" collet, see our Adapter Collet.
