6-Way Oak Grigsby Lever Switch

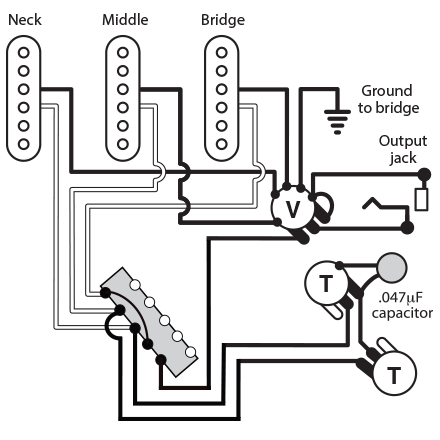

Installation and wiring instructions for the 6-way Oak Grigsby Lever Switch.


6-way CRL Lever Switch

The switch is usually installed with the spring facing away from the pots, but can face either way—there's no difference, electrically.

Reduce unwanted electrical noise by using shielded coaxial cable for your longer wiring runs (for example, the connection between the controls and the output jack). Coaxial cable contains a center "hot" conductor which is shielded by an outer braid used for the ground wire.

For short connections between components, use standard non-shielded wire. Typically, white wire is used for hot and black for ground.

Modify the pickguard slot to fit the 6-way lever switch

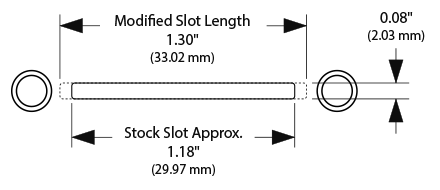

Modifying the slot for 6-way CRL Lever Switch
