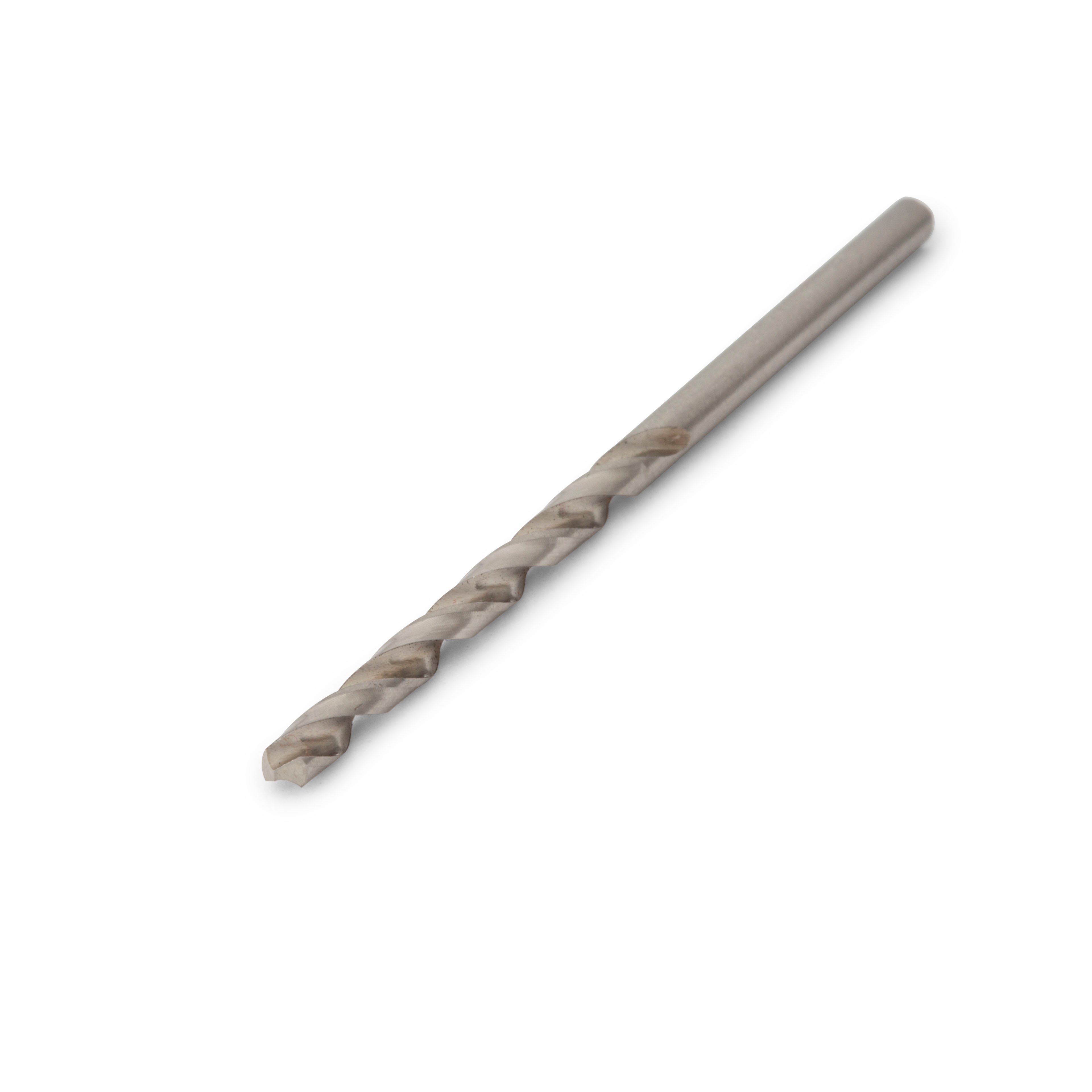

36 Gauge Drill Bit for ABR-1 Bridge Installation
Install your ABR-1 with ease
This high speed bit is the perfect size for the small post of this classic tune-o-matic bridge.
This 36 gauge bit drills precise holes for the small posts for an ABR-1 Tune-o-matic bridge. Unlike later tune-o-matic models, the ABR-1 has no bushings, requiring a much smaller post and installation hole. Some believe the lack of bushings gives the guitar more sustain.
Once you drill the holes, tap them with our Tap For Threaded ABR-1 Bridge Post Holes.
This bit is the perfect match for the bridge on our Routing Template for '59 Les Paul. Installing a tune-o-matic with bushings? This 1/4" Drill Bit is what you need.
High speed steel.
Dimensions:
- Drill bit size: 36 gauge
- Diameter: 7/64" (2.66mm)
- Overall length: 2-1/2" (63.61mm)
- Flute length: 1-1/2" (38.11mm)
