Right-angle Toggle Switch for 3-Pickup Guitars

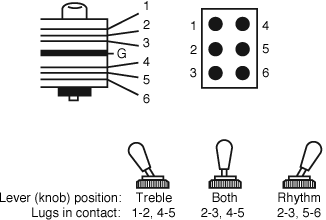

A lug map of the Right-angle Toggle Switch for 3-Pickup Guitars.


This right-angle toggle switch is a DPDT (double-pole, double-throw) "on-on-on" switch. A bottom view of the switch is shown in comparison to a standard DPDT on-on-on mini toggle switch:

Les Paul / SG Custom 3-Pickup Wiring:
Lug 1: Not used in LP/SG Customs
Lug 2: Hot from middle pickup
Lug 3: Solder a jumper wire to lug 4
Lug 4: Hot from bridge pickup volume pot
Lug 5: Hot to output jack, switched output
Lug 6: Hot from neck pickup volume pot
