Railhammer Humbucking Pickups

Wiring diagrams and color codes for Railhammer Humbucking pickups.


I-RAILHAMMER

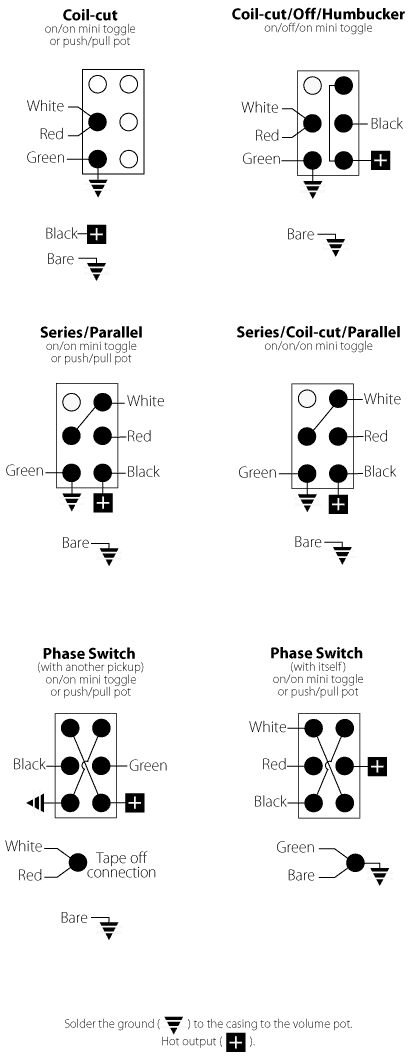

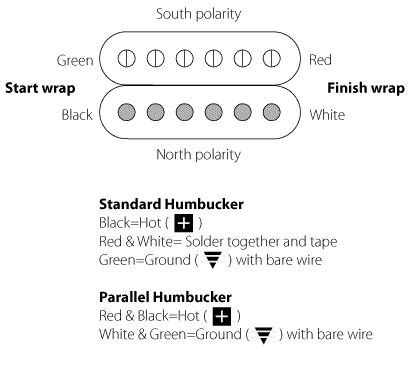

Railhammer uses their own color code system for 4-conductor pickups. The schematic below shows the coils and their respective colors.




A 4-conductor humbucker has many wiring and tonal options. When using the options below, the bare or shield-wire is soldered to "ground" on the volume pot casing.
