Golden Age Lipstick Single-coil Pickup Instructions
Wiring diagrams
I-5427
How to wire for a great tone!
Golden Age Lipstick Pickups feature waxed poly-coated coil wire wound on Alnico 5 bar magnets, encased in iconic chrome-plated metal tubes. This fully shielded design sized for easy installation in modern guitars. Pickup height adjustment To adjust the height of your pickups, fret a note at your highest fret. Measure between the string and the pickup: you want a gap of about 1/8" at the low E string, and about 3/32" at the high E string. Experiment to find the best output balance between neck and bridge pickups. |
![]() |
All wiring diagrams are viewed from the back of the pickguard.

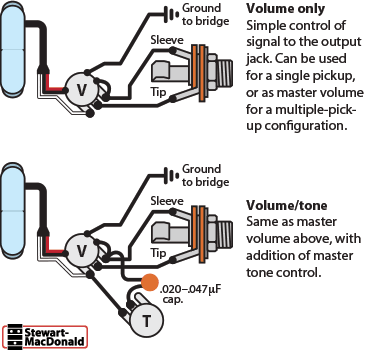

Simple volume/tone circuits
![](/globalassets/video-and-ideas/online-resources/pickups-and-electronics/golden-age-lipstick-single-coil-pickup-instructions/5427-simple.gif?hash=637613115110000000&quality=80)
Single-coil / Single-coil / Single-coil
Traditional Strat® wiring with master volume and two tone controls, using a CRL brand lever switch (3-way or 5-way).
![](/globalassets/video-and-ideas/online-resources/pickups-and-electronics/golden-age-lipstick-single-coil-pickup-instructions/5427-singsingsing.gif?hash=637613115110000000&quality=80)
Single-coil / Single-coil / Single-coil
Just two controls: master volume and master tone.
![](/globalassets/video-and-ideas/online-resources/pickups-and-electronics/golden-age-lipstick-single-coil-pickup-instructions/5427-singsingsing2.gif?hash=637613115110000000&quality=80)
Single-coil / Single-coil / Humbucker
With CRL 5-way switch. At switch position 4 (bridge/middle), the humbucker is coil-cut.
![](/globalassets/video-and-ideas/online-resources/pickups-and-electronics/golden-age-lipstick-single-coil-pickup-instructions/5427-singsinghum.gif?hash=637613115110000000&quality=80)
Humbucker / Single-coil / Humbucker
With the switch in the positions 2 (neck/middle) and 4 (bridge/middle pickups) the humbuckers are coil-cut.
![](/globalassets/video-and-ideas/online-resources/pickups-and-electronics/golden-age-lipstick-single-coil-pickup-instructions/5427-humsinghum.gif?hash=637613115100000000&quality=80)
