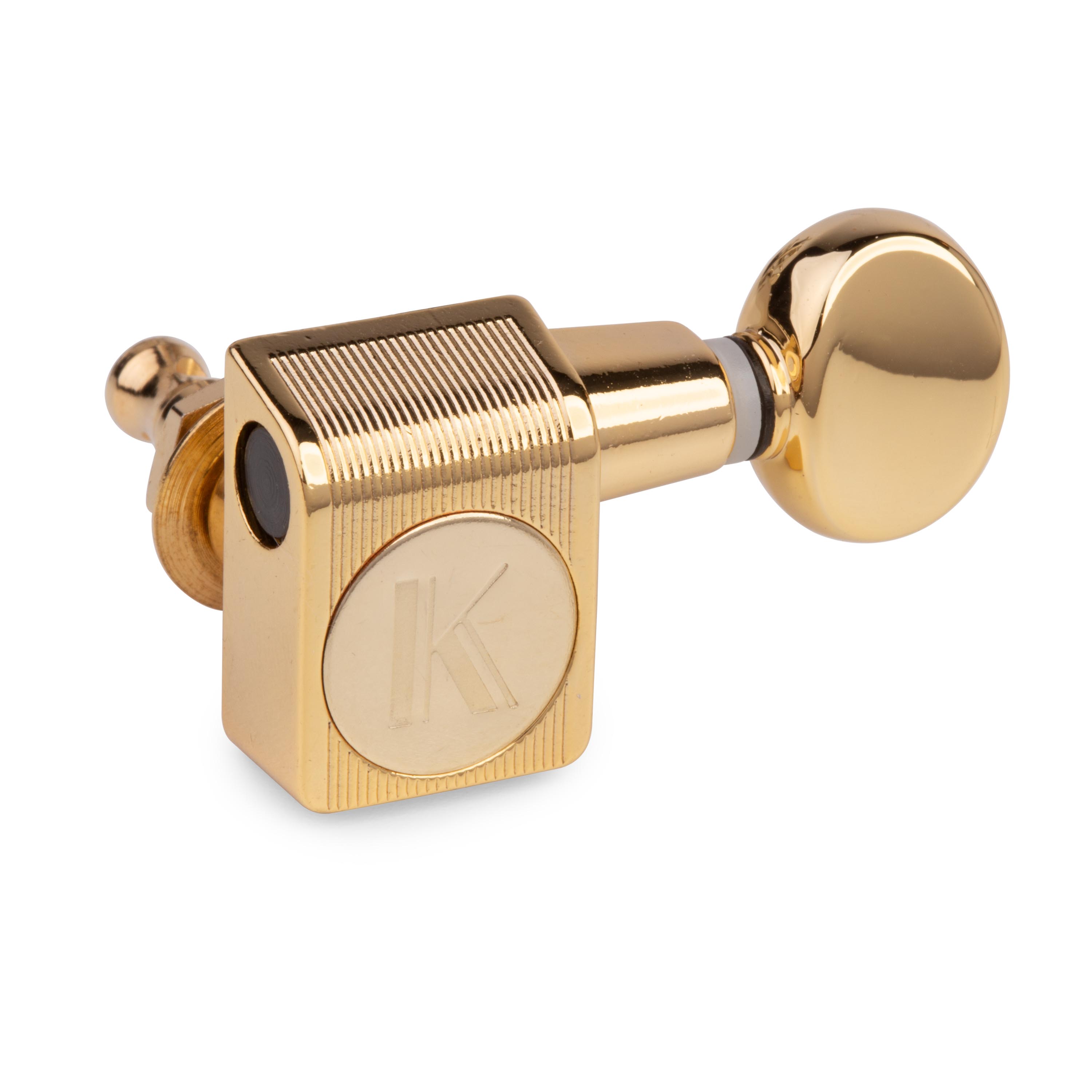

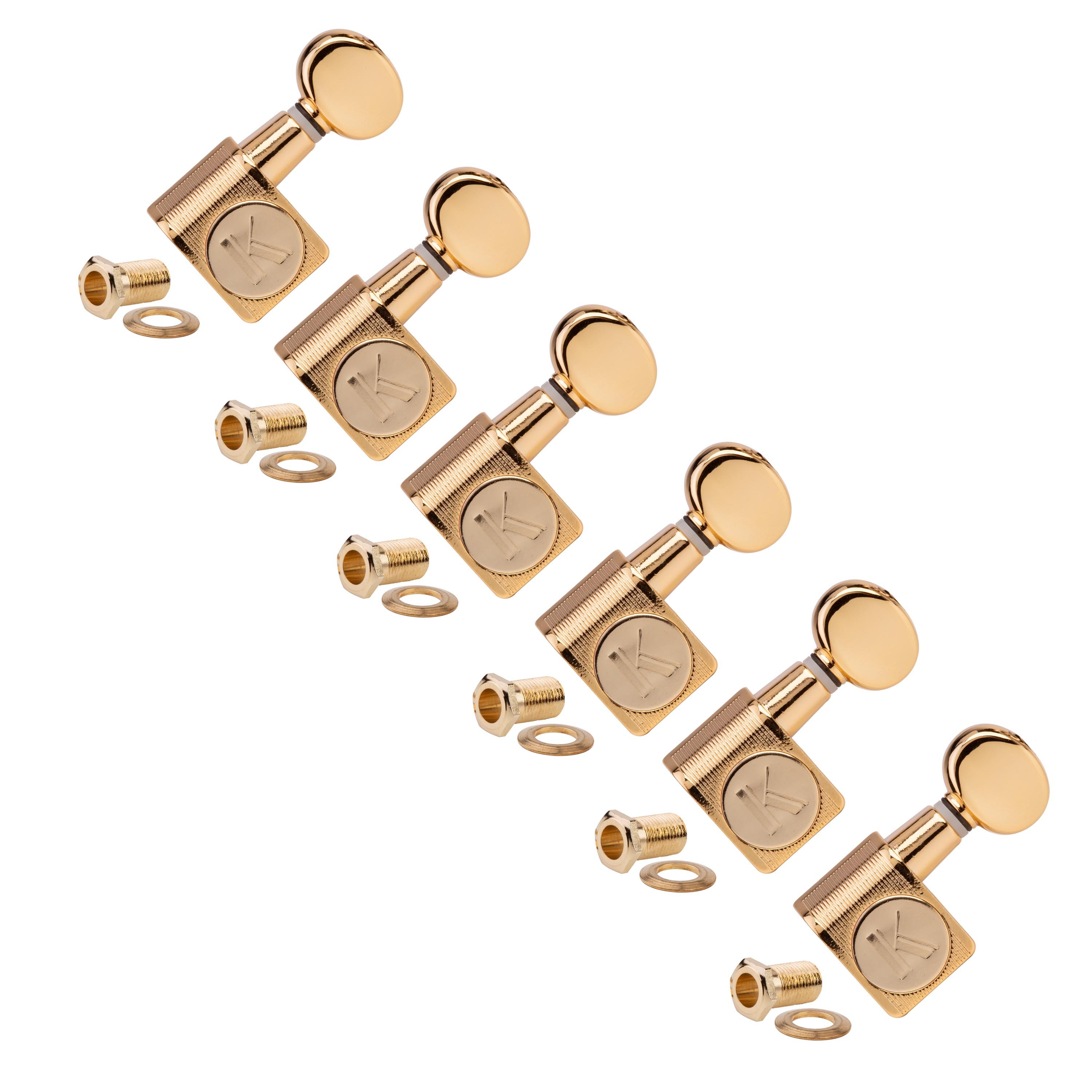

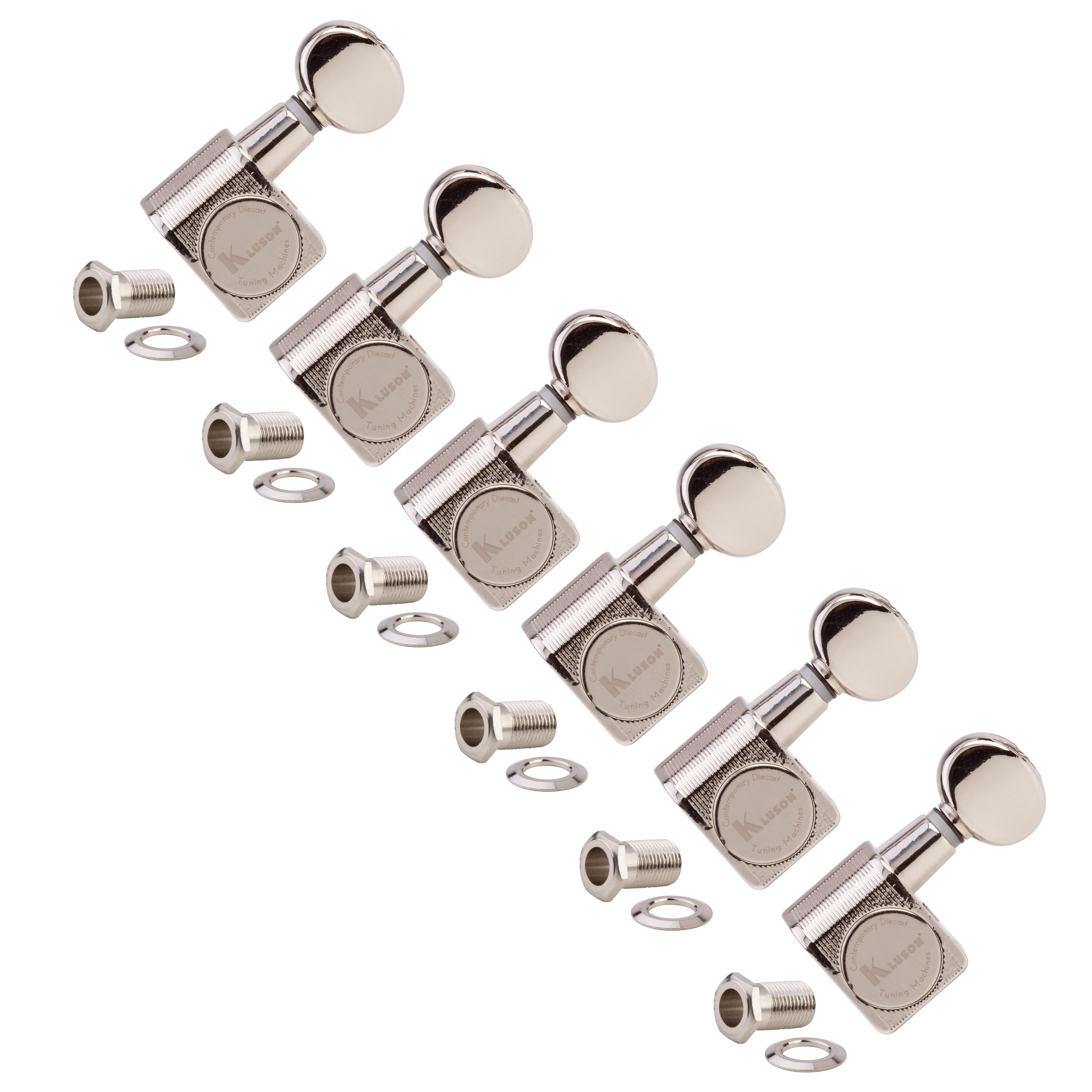

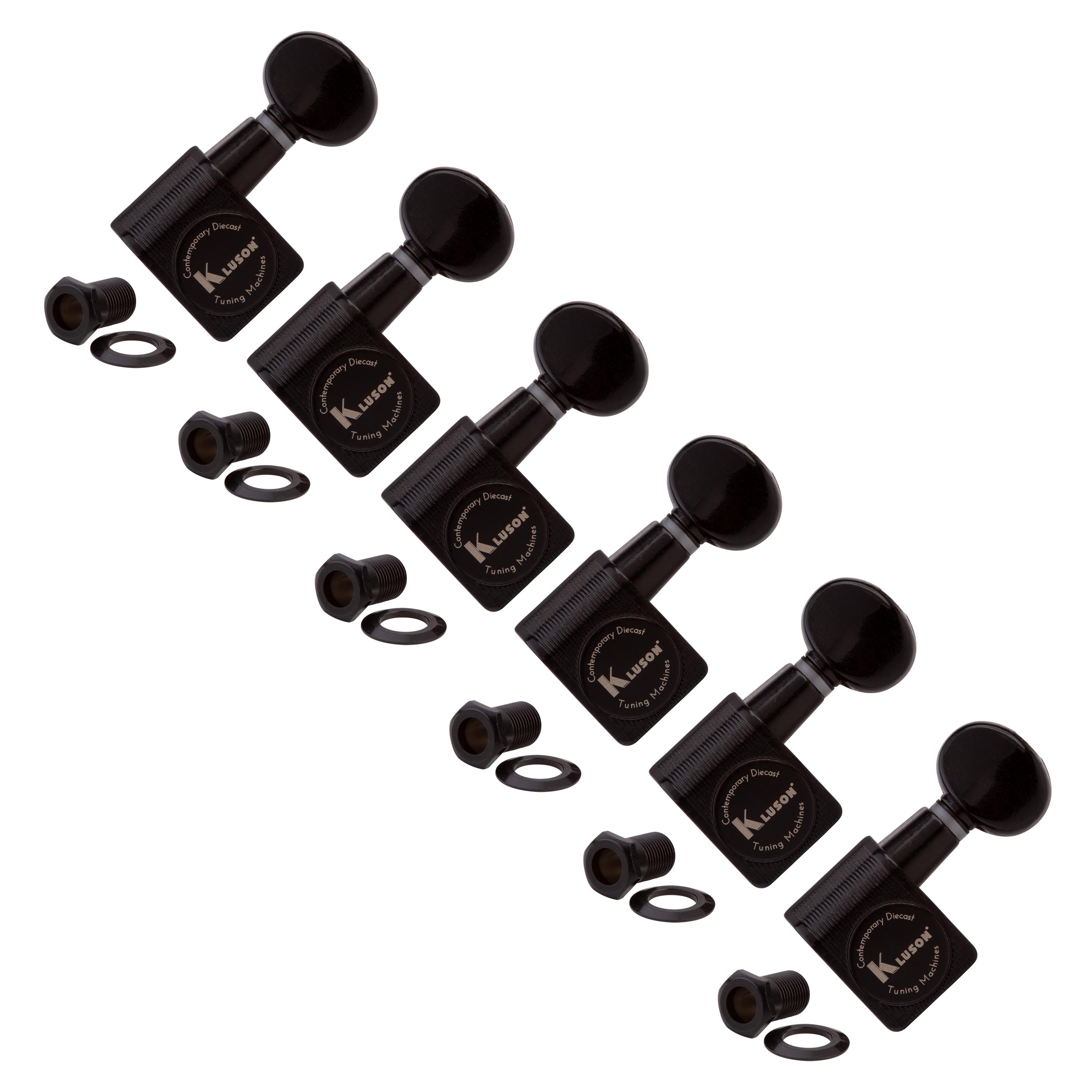

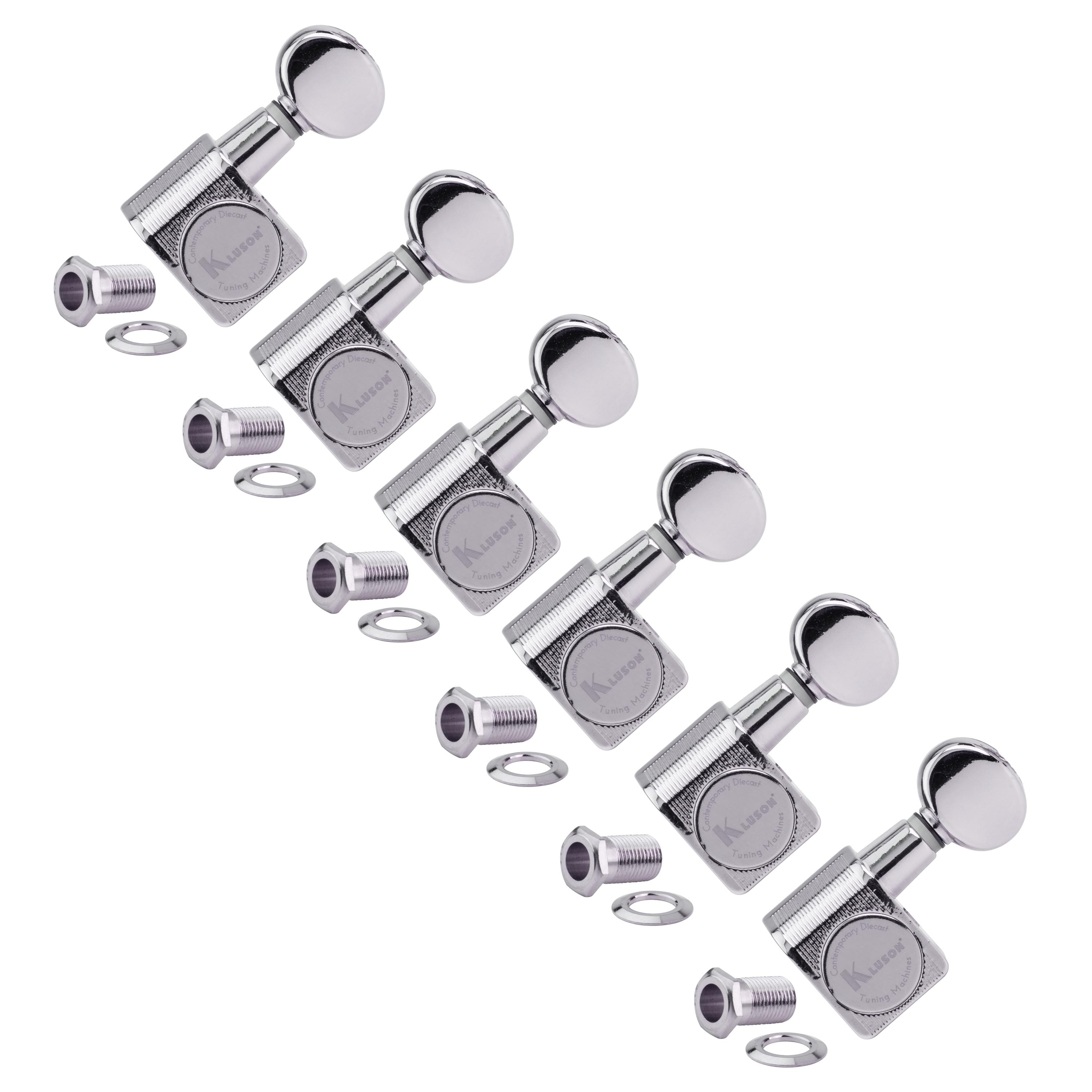

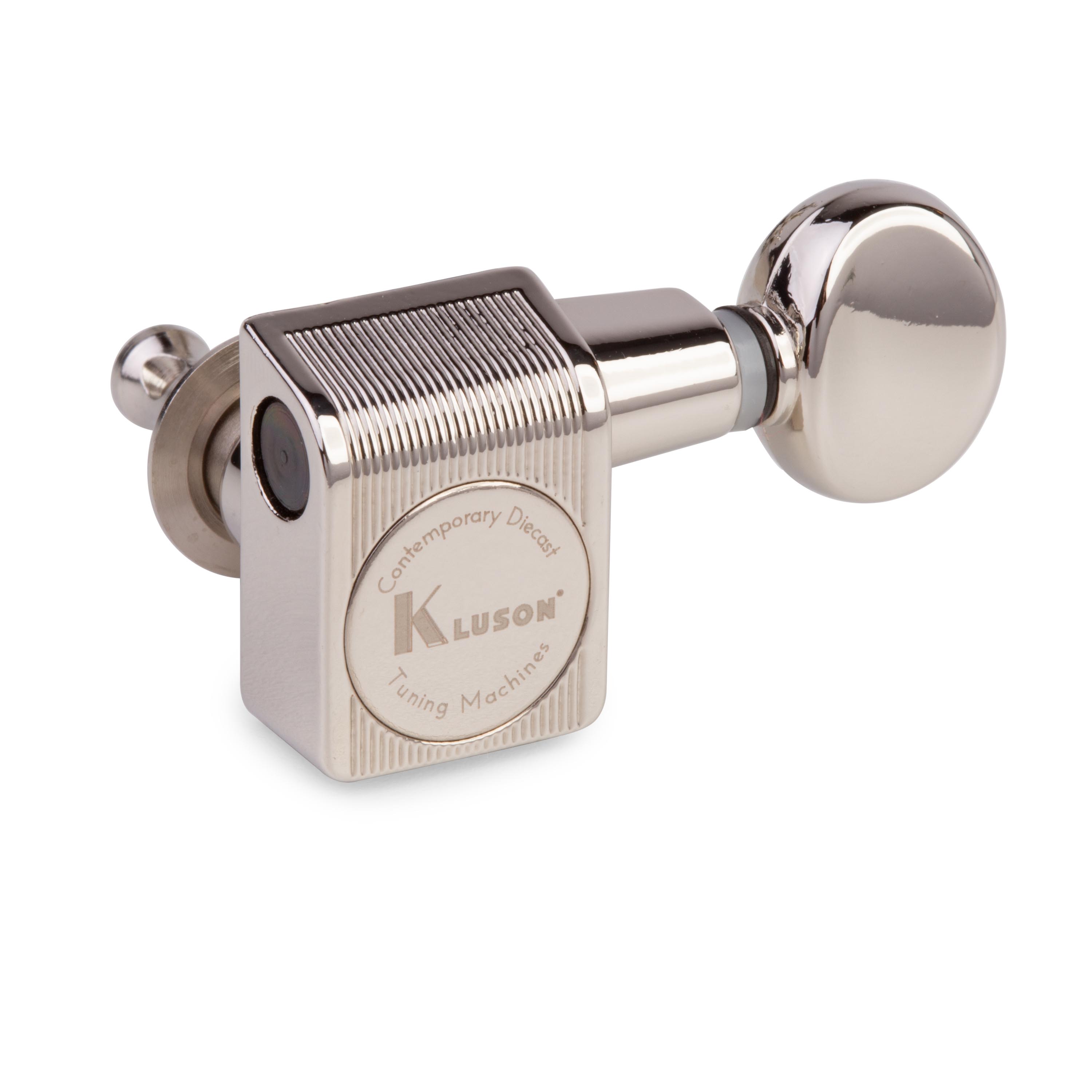

Kluson 6-In-Line Diecast 2-Pin Tuners for Fender Guitars
Kluson's drop-in replacement tuners for Fender guitars.
These state of the art tuning machines are designed for contemporary Fender American Standard and Standard series instruments that utilize 2 location pins on the machine housing. These are drop-in, no modification required upgrades for your Fender Standard instrument with 2 pin tuners at quite an affordable price.
Specifications:- 19:1 gear ratio
- 25/64" (10mm) peghole required
- Hex head screw-in bushing
- 57/64 in (22.65mm) x 21/32" (16.8mm) footprint
- 3/32 in (2.41mm) mounting hole size required for pins
- 25/64" (9.95mm) collar diameter
- 3/8" (9.68mm) collar depth
- 1-1/16" (26.87mm) post height from housing back including dome top
- String through location is 29/32" from back of housing to hole center
- Button Shaft length from Housing to button is 13/32" (10.3mm)
- Overall Button Shaft Length including Button is 15/16" (24mm)
- 6-in-line mounting pattern
- Set of 6 includes all mounting hardware
