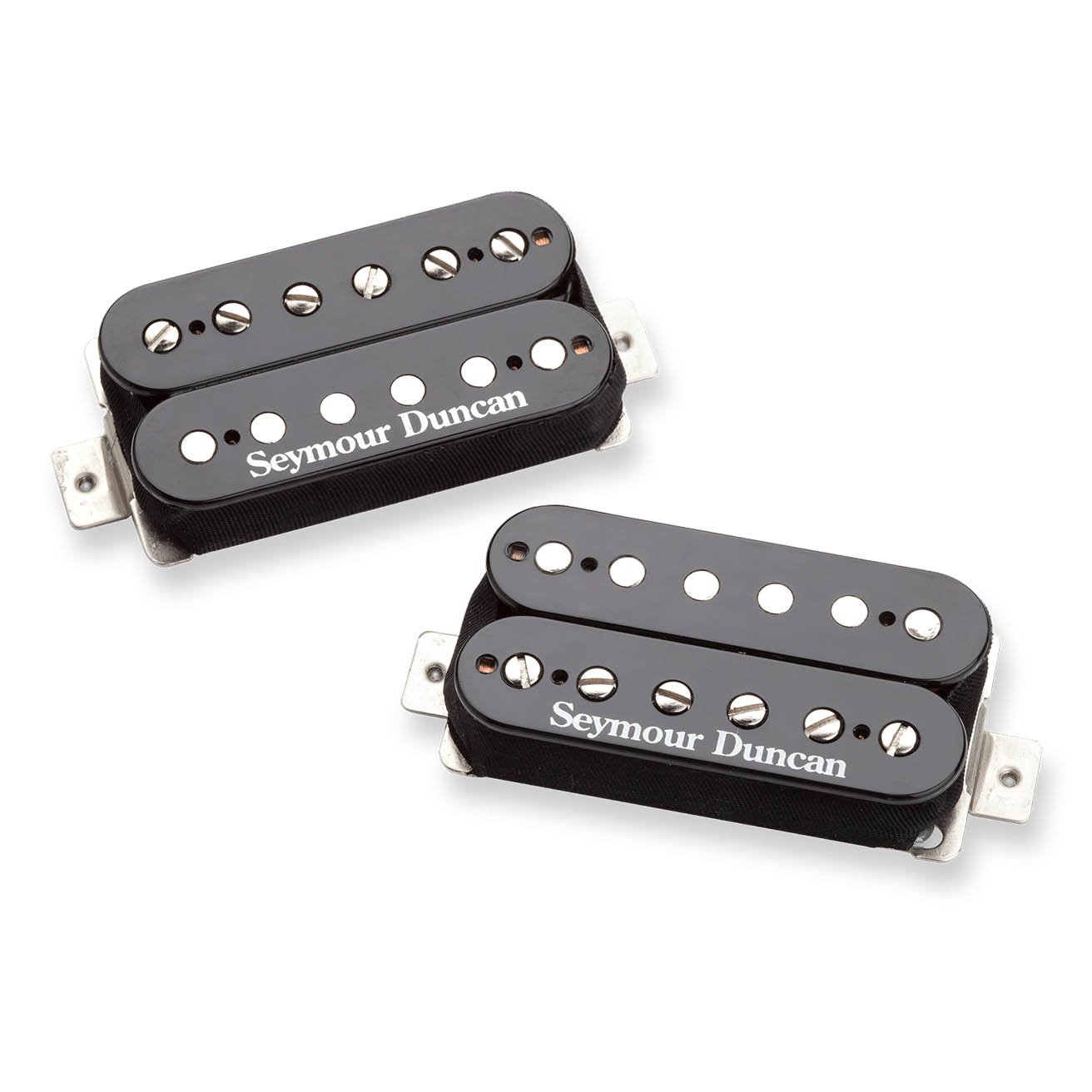

Seymour Duncan SH-4 / SH-2 Hot Rodded Humbucker Set
This classic humbucker combination was made in England in 1974, and remains a favorite set of pickups to this day – an SH-4 JB for the bridge and SH-2n Jazz Model for the neck. Together, these pickups have become one of the most timeless and versatile humbucker sets ever built.
The JB Model humbucker is Seymour Duncan's most popular pickup of all time. It adds juice and versatility to the bridge position of any humbucker-equipped guitar. With its hot coils and alnico 5 bar magnet, this pickup delivers an unmistakable upper midrange attack, a tight, articulate low end, and harmonically rich highs that really sing. The JB is the perfect bridge pickup for anything from blues & country to the meanest hard rock & metal.
The Jazz Model neck humbucker uses an alnico 5 bar magnet and a special coil wind for an articulate, glassy treble response that balances very well with its full, but tight low end. The scooped midrange gives this pickup a smooth tonal character all its own. Originally designed as the matching neck pickup for the JB Model bridge pickup, the Jazz is an incredibly versatile humbucker that will work for almost any style of music. The Jazz Model has been used by many great players over the decades, from Randy Rhoads to Jeff Beck to Seymour W. Duncan.
Hand-built in Duncan's Santa Barbara, CA factory, these humbucker pickups use an alnico 5 bar magnet, nickel silver bottom plate, 4-conductor lead wire for multiple wiring options, and are vacuum wax potted for squeal-free performance.
Specifications
- High-output humbucker set
- Potted to suppress noise
- Alnico 5 bar magnet
- Four-conductor insulated lead wires
Output
- Bridge position: 16.6K ohm range
- Neck position: 7.50K ohm range
Dimensions
- Length including mounting tabs: 3.31" (84.07mm)
- Length not including mounting tabs: 2.62" (66.54mm)
- Mounting screw spacing: 3.06" (77.72mm)
- Width: 1.43" (36.32mm)
- Height including mounting tabs: 0.77" (19.55mm)
Mounting screws, springs, and wiring diagrams are included.
