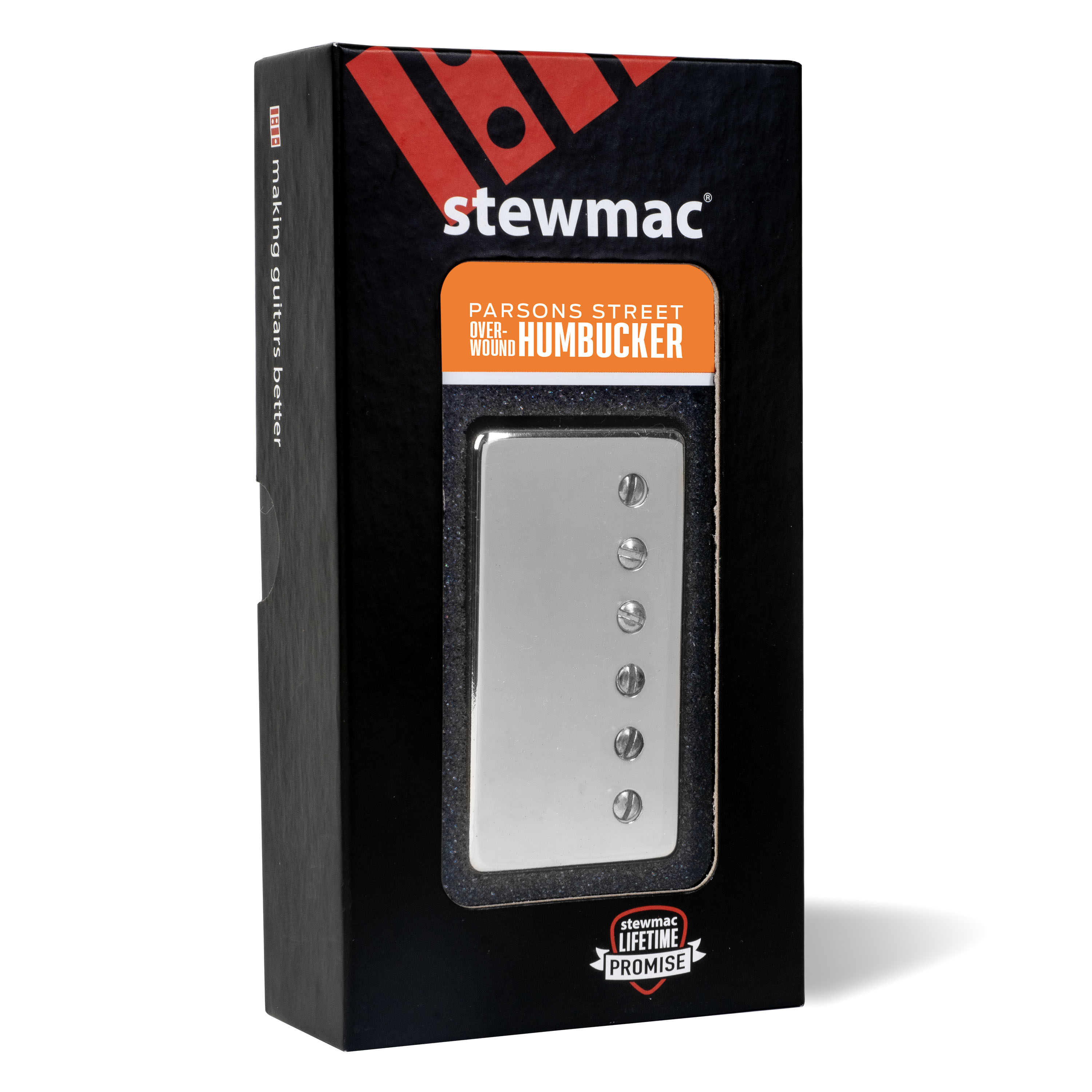

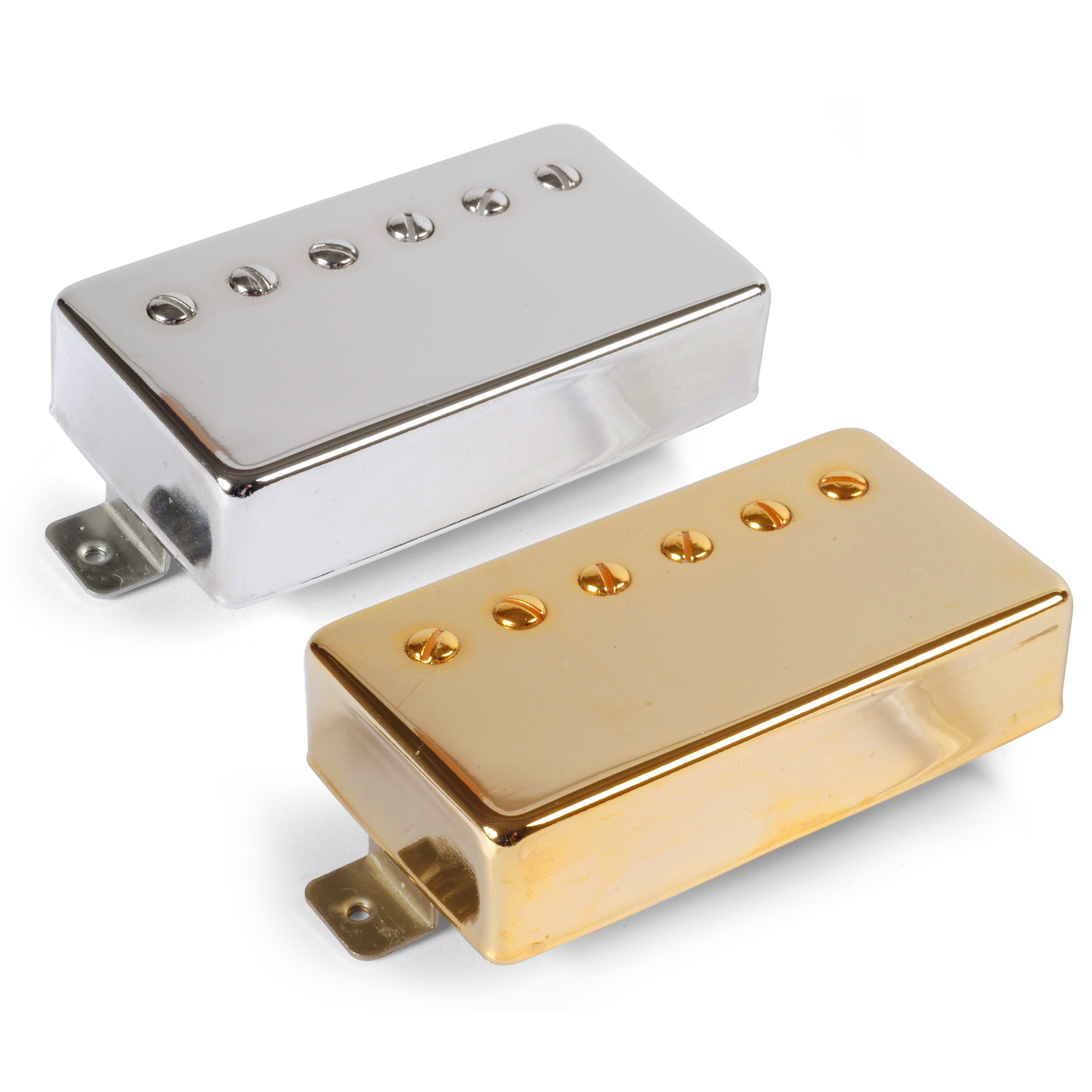

StewMac Parsons Street Overwound Humbucker Pickups
Get more power to overdrive your amp with these overwound versions of our Parsons Street Humbuckers. It's a P.A.F. with a stronger punch!
Crafted by tone experts
Our own Erick Coleman tracked down priceless original P.A.F. humbucker sets and meticulously studied the materials and construction that gives these pickups their truly timeless tone. Once he cracked the code, that tone was undeniable!
We named these exceptional humbuckers after the famous Kalamazoo address where the holy grail of pickups, the legendary P.A.F. (Patent Applied For), was born.
True vintage sound with more output
Sometimes those 1950s PAFs were accidentally overwound at the factory, and when you find one of those rare ones, it has a little extra bite to its sound. To capture that tone, we keep winding these hot versions until we get a DC resistance in the 9.5K ohm range.
Specifications
- Vintage medium output overwound humbukcer
- Nickel-silver cover for tone transparency
- Original 1.970" (50mm) polepiece spread
- Plain enameled 42 AWG coil wire
- Unpotted like the originals

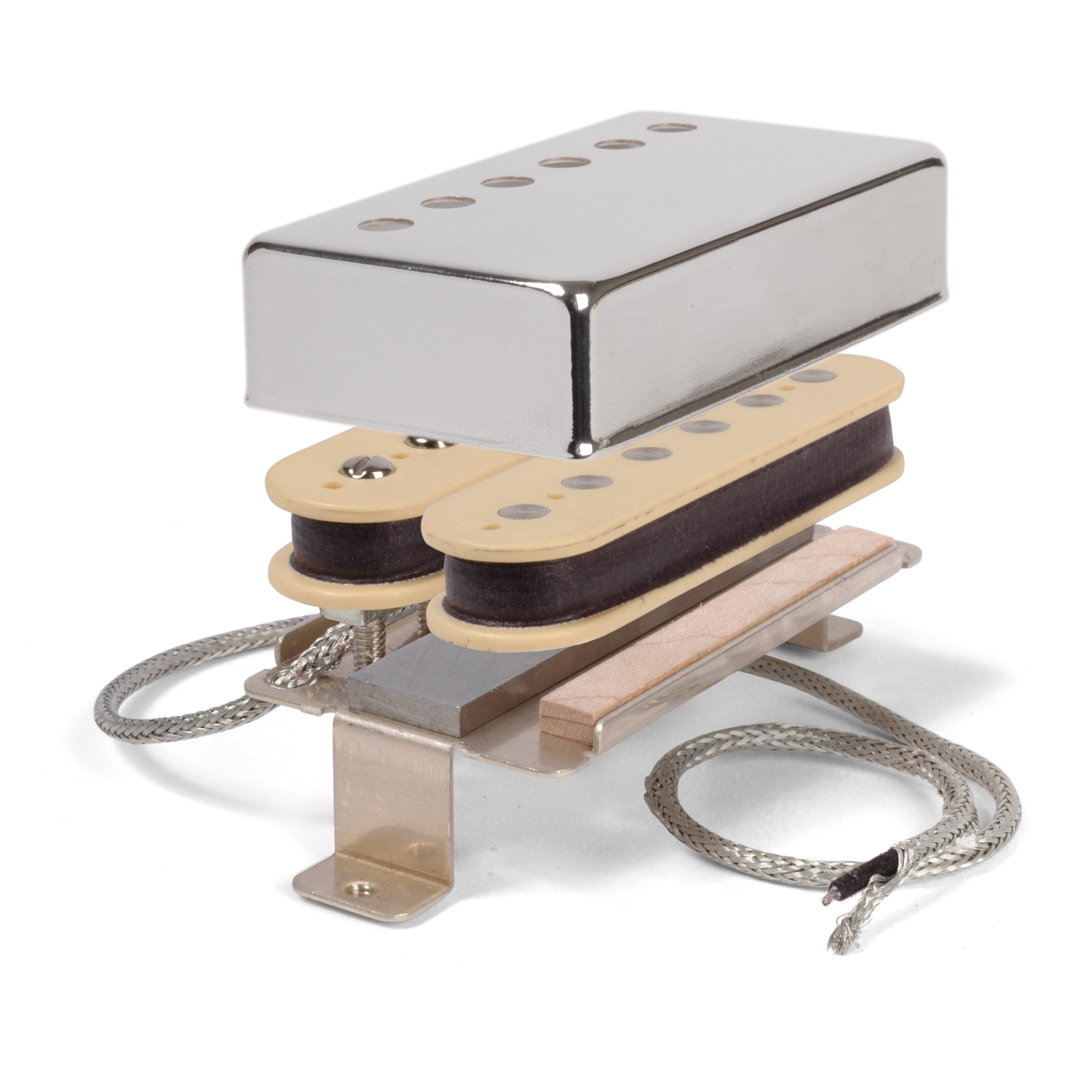

- Vintage construction—black paper coil tape, wood spacer, nickel-silver baseplate
- Choice of Alnico 2 or Alnico 5 magnet
- Single-conductor braided shield lead wires

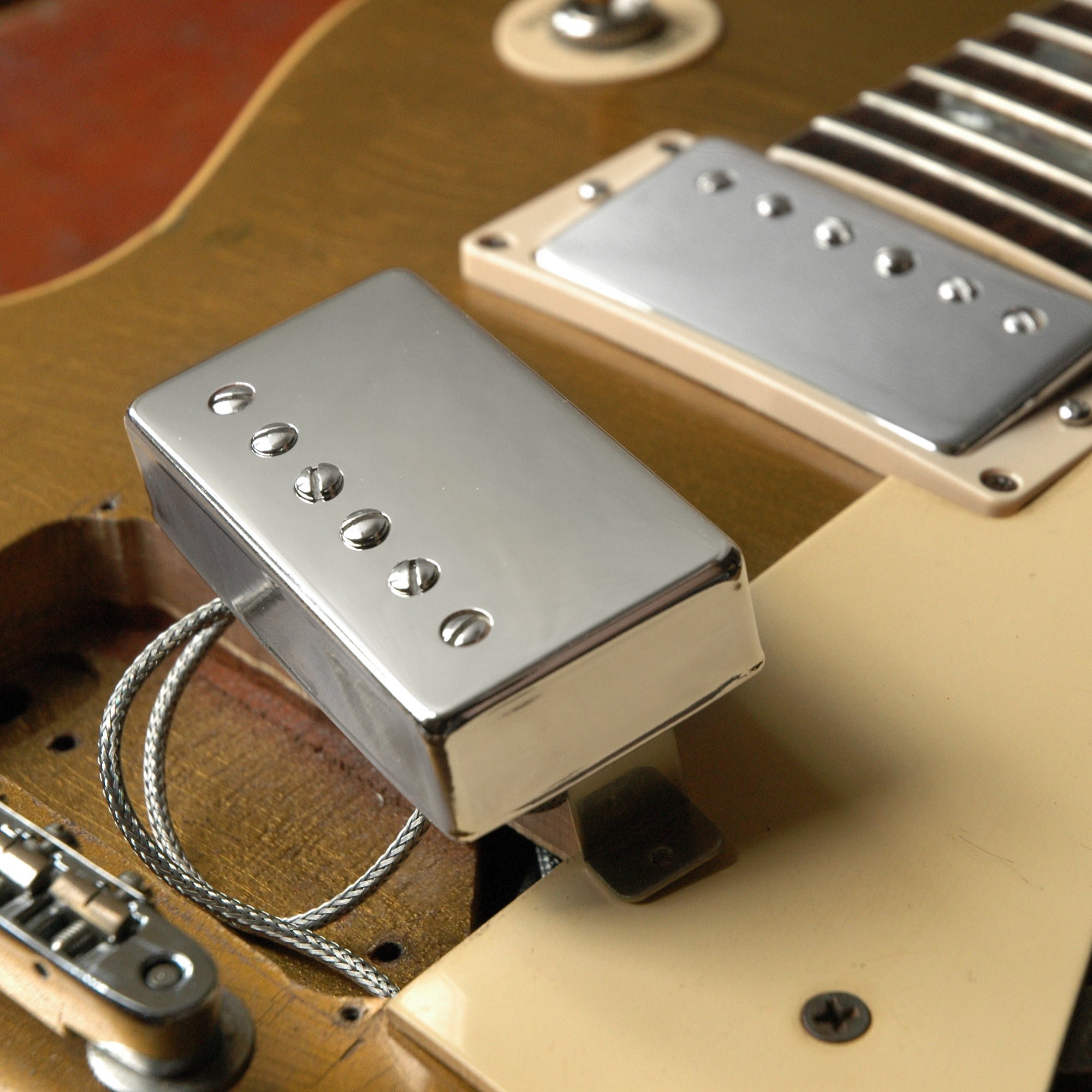

Not only a bridge pickup! These sound great in the neck position with a high output bridge pickup.
Your choice of original-style magnets:
- Alnico 2 for warm tone with smooth highs and a soft bottom response.
- Alnico 5 produces a clear tone with more pronounced highs and a tighter low end.
(Original P.A.F.s contained Alnico 2, 3 and 5 magnets at various times.)
Output
- 9.5K ohm range

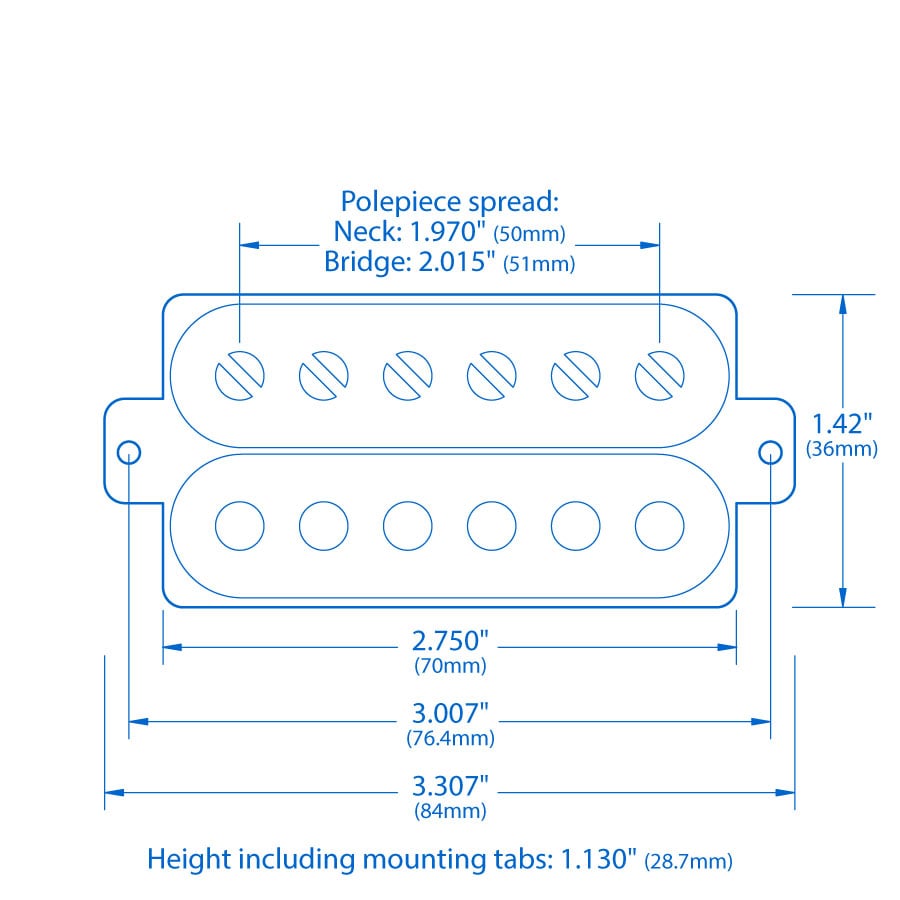

Dimensions
- Length including mouting tabs: 3.307" (84mm)
- Length not including mouting tabs: 2.750" (70mm)
- Mounting screw spacing: 3.007" (76.4mm)
- Width: 1.42" (36mm)
- Height including mounting tabs: 1.130" (28.7mm)
Height adjustment screws, springs and wiring diagrams included.
Mounting rings and mounting ring screws are available separately.
Handy Humbucker Helpers make installation easy.
StewMac Parsons Street™ is a trademark of Stewart-MacDonald Manufacturing Company, Inc.
