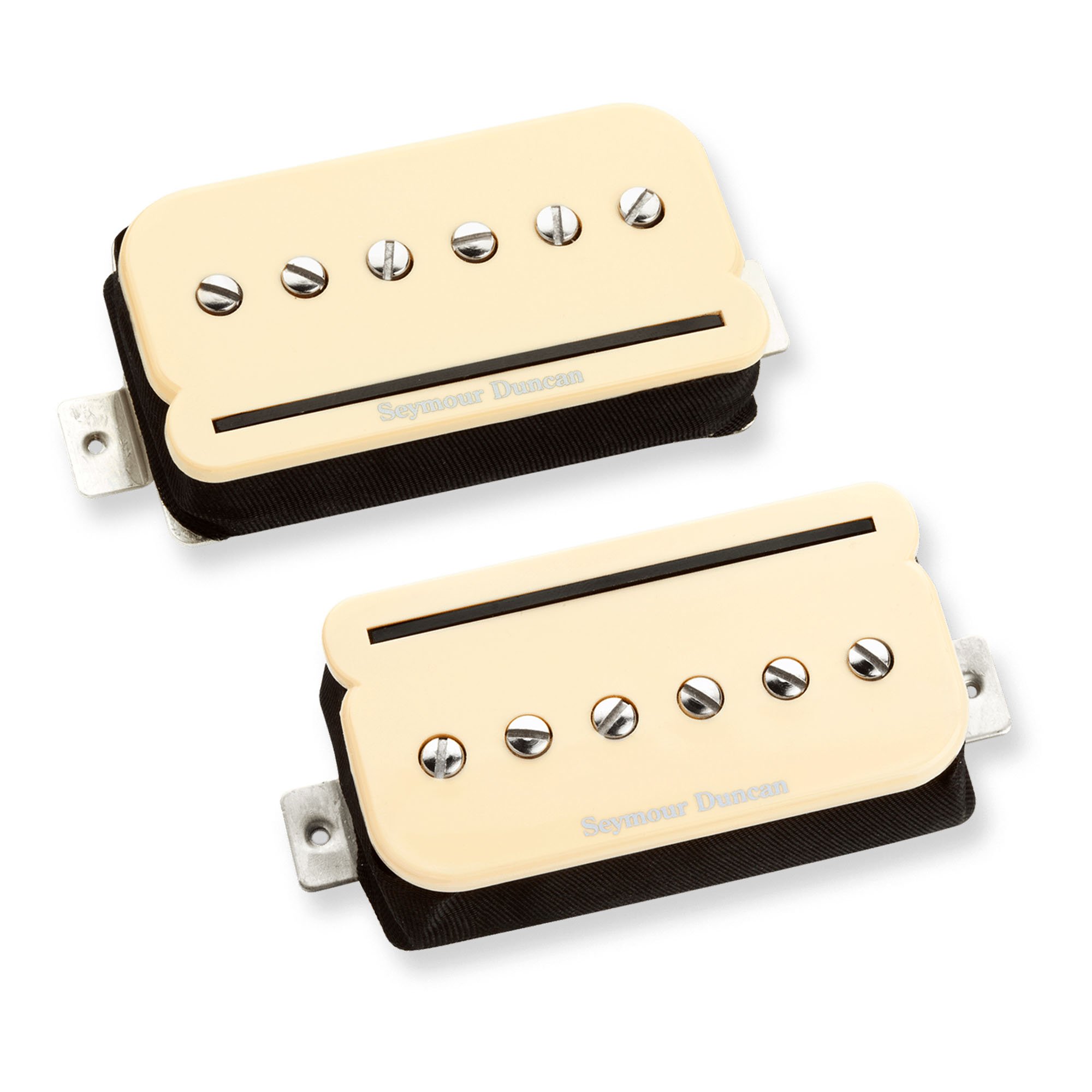

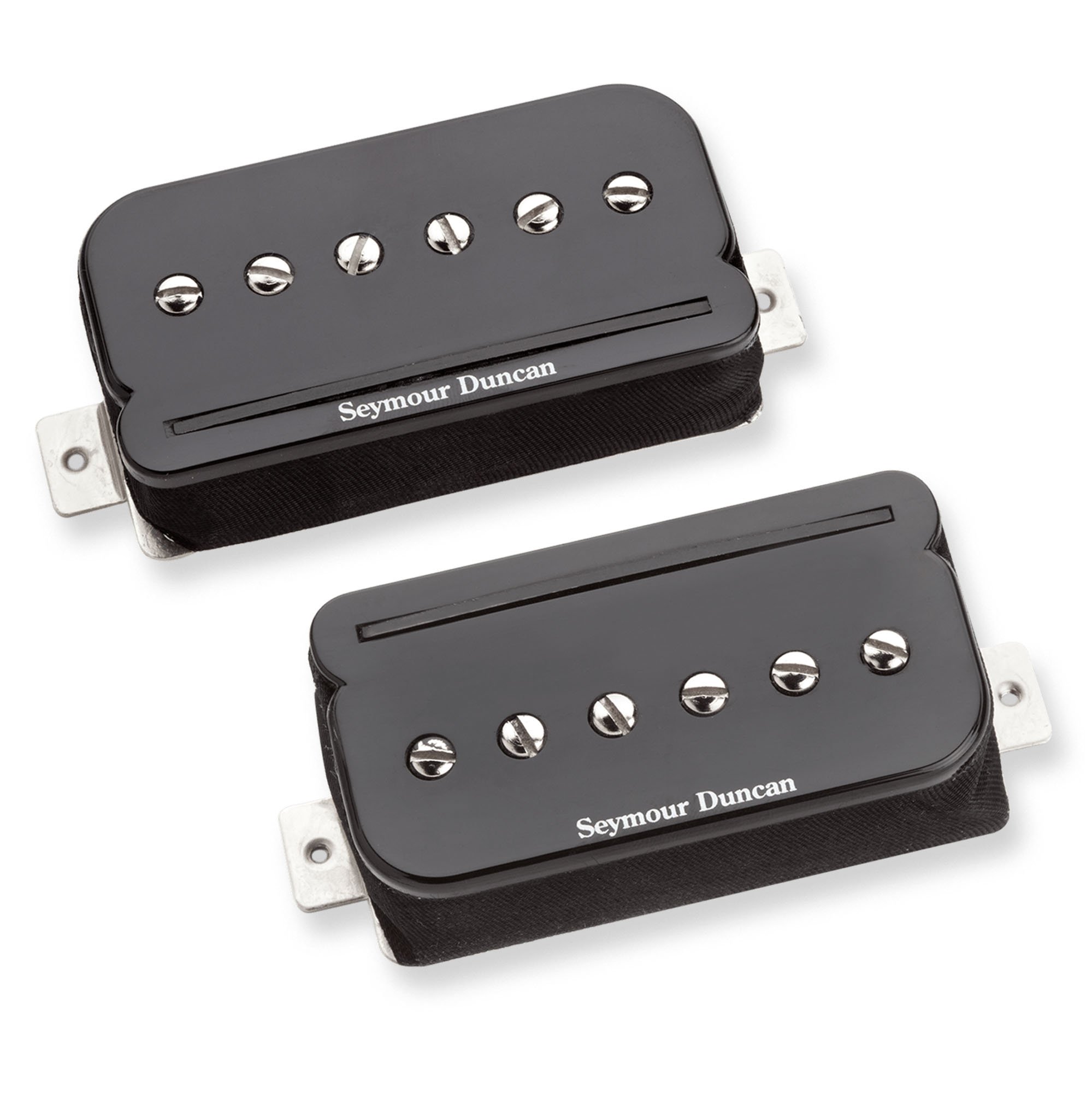

Seymour Duncan SHPR-1S P-Rails
Truly unique and versatile humbucker pickups that combine a Hot Rails coil with our Vintage P90 to give you unmatched tonal variety.
In the past, if you wanted humbucker tone, P90 tone, and Strat tone, you would have needed three different guitars. But now, the P-Rails humbucker delivers all three sounds in a pickup that is a drop-in replacement for any standard-sized humbucker slot. Using any 3-way (on-off-on) mini-switch, each unique hybrid humbucker can be split to give you a super fat, authentic vintage P90, or be split to the Rail coil for a classic Strat-like tone.
With both coils on, you get a big-sounding humbucker that packs a nice full punch. The neck version is wound RWRP so that, you can use both P90s or both Rails together and achieve hum-canceling operation. Hand built in Santa Barbara, CA, each P-Rails versatile humbucker pickup uses a pair of alnico 5 bar magnets, comes with a 4-conductor lead wire to allow for all the wiring options, and is vacuum wax potted for squeal free operation.
Specifications
- High-output humbucker set
- Potted to suppress noise
- Alnico 5 bar magnets
- Type: Passive
- Four-conductor insulated lead wires
Output
- Bridge position: 18.9K ohm range
- Neck position: 13K ohm range
Dimensions:
- Length including mounting tabs: 3.32" (84.33mm)
- Mounting screw spacing: 3.05" (77.47mm)
- Width: 1.44" (36.53mm)
- Height including mounting tabs: .91" (23.04mm)
- Polepiece spread: 1.93" (48.90mm)

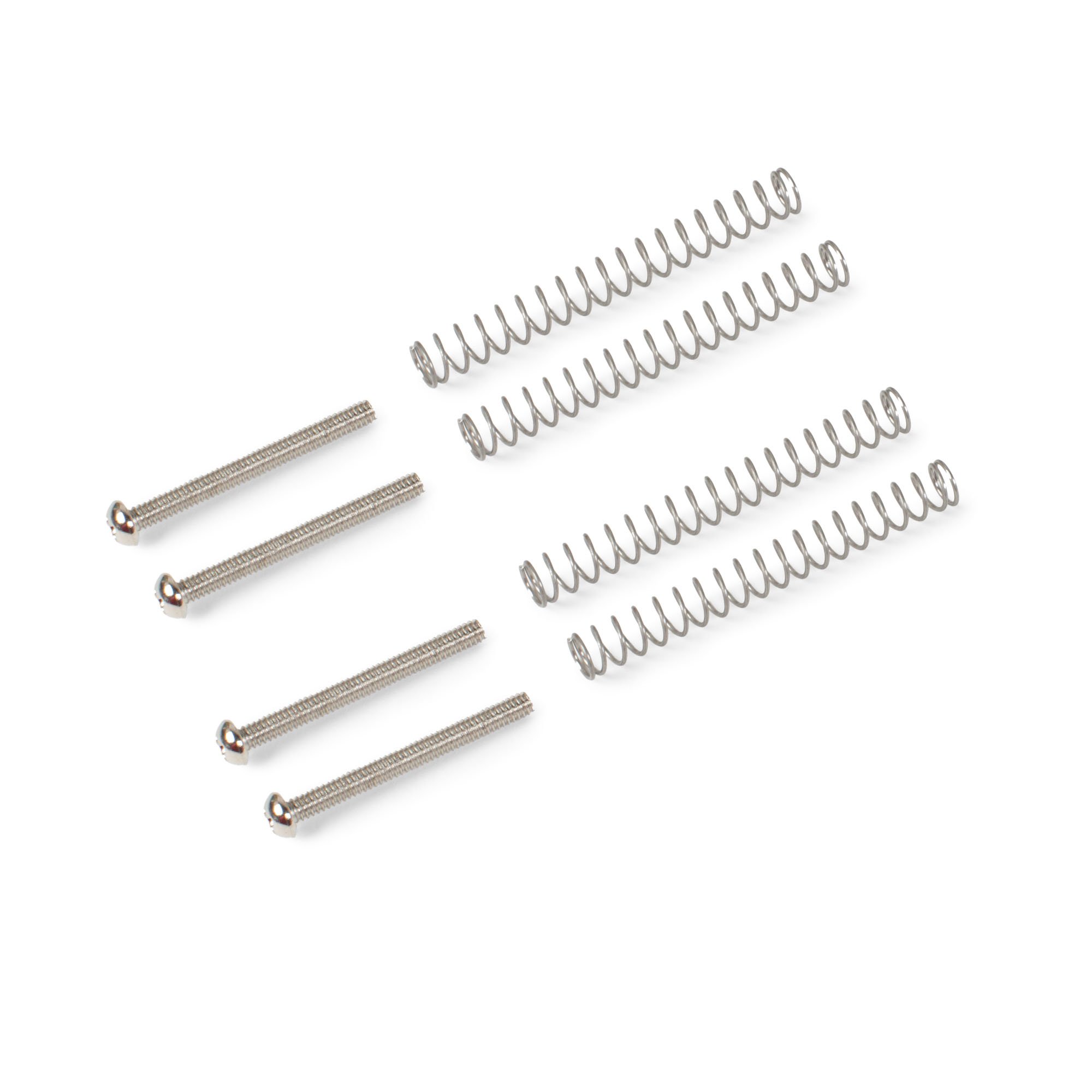

Mounting screws, springs, and wiring diagrams are included.
